Introducing an exchange gas 0.5mbar

Montag, 8. April 2019

09:41



I did introduce an exchange gas for 0.5mbar between some measurments





C: Changing angle 45deg

Montag, 8. April 2019

08:49



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal

VH(max)  (mV)

11,164mV

Angle of sensor calculator

V_H= Cos(45)*11,164 = 7,894140105166617 mV

Before changing: -0.037mV

Measured: 7.895mV





    1

Period of measurement



Notes



Data files



Plot





m156: Plusses_Hloop_25T_dependent_(45)deg

Montag, 8. April 2019

07:52

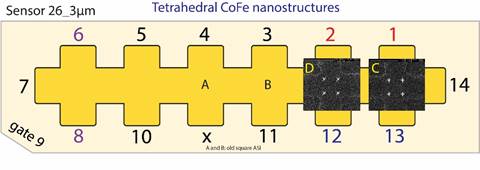

Sensor 26 3um Tetrahedral CoFe nanostructures D B x A and B: old square ASI

Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal

Temperature (K)

       25K

Angle of sensor θ

45°





     0.2

      10

R12 = 235/1000*50 = 11,75

Period of measurement  (min)



Notes



Data files

<<m156_Plusses_45deg_Hloop_down_T25K_T_dep__Gradio_20190408_1000_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-11.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_down.dat>>



<<m156_Plusses_45deg_Hloop_up_T25K_T_dep__Gradio_20190408_1000_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-11.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_up.dat>>



Plot





m157: Plusses_Hloop_20T_dependent_(45)deg

Montag, 8. April 2019

07:52

Sensor 26 3um Tetrahedral CoFe nanostructures D B x A and B: old square ASI

Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal

Temperature (K)

       20K

Angle of sensor θ

45°





     0.2

      10

R12 = 235/1000*50 = 11,75

Period of measurement  (min)



Notes



Data files

<<m157_Plusses_45deg_Hloop_down_T20K_T_dep__Gradio_20190408_1000_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-11.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_down.dat>>



<<m157_Plusses_45deg_Hloop_up_T20K_T_dep__Gradio_20190408_1000_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-11.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_up.dat>>



Plot



Routine file





m158: Plusses_Hloop_15T_dependent_(45)deg

Montag, 8. April 2019

07:52

Sensor 26 3um Tetrahedral CoFe nanostructures D B x A and B: old square ASI

Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal

Temperature (K)

       15K

Angle of sensor θ

45°





     0.2

      10

R12 = 235/1000*50 = 11,75

Period of measurement  (min)



Notes



Data files

<<m158_Plusses_45deg_Hloop_down_T15K_T_dep__Gradio_20190408_1600_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-11.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_down.dat>>



<<m158_Plusses_45deg_Hloop_up_T15K_T_dep__Gradio_20190408_1600_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-11.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_up.dat>>



Plot



Routine file





Filling He(l)

Montag, 8. April 2019

18:00



1.  He(l)

27in

08.04.2019

1800

Person

2.  He(l)

36

08.04.2019

1837

MAM



Notes:

·



'To do:





m159: Plusses_Hloop_10K_dependent_(45)deg

Montag, 8. April 2019

18:40

Sensor 26 3um Tetrahedral CoFe nanostructures D B x A and B: old square ASI

Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal

Temperature (K)

       10K

Angle of sensor θ

45°





     0.2

      10

R12 = 235/1000*50 = 11,75

Period of measurement  (min)



Notes



Data files

<<m159_Plusses_45deg_Hloop_down_T10K_T_dep__Gradio_20190408_1900_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-11.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_down.dat>>



<<m159_Plusses_45deg_Hloop_up_T10K_T_dep__Gradio_20190408_1900_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-11.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_up.dat>>



Plot



Routine file





Left empty

Freitag, 12. April 2019

08:13



m160: Crosses_Hloop_10K_dependent_45deg

07 April 2019

08:49



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal

Temperature (K)

10

Angle of sensor θ

45





      0.2

    10

R12 = 180/1000*50 = 9

Period of measurement  (min)

            80

Notes

Over night routine

Data files

<<m160_Crosses_45deg_Hloop_down_T10K_T_dep__Gradio_20190408_2000_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-9kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_down.dat>>



<<m160_Crosses_45deg_Hloop_up_T10K_T_dep__Gradio_20190408_2000_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-9kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_up.dat>>



Plot

Machine generated alternative text: 450 10K poi--Vr(mT)



m161: Crosses_Hloop_15K_dependent_45deg

07 April 2019

08:49



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal



Temperature (K)

   15

Angle of sensor θ

45





      0.2

    10

R12 = 180/1000*50 = 9

Period of measurement  (min)

            80

Notes

Over night routine

Data files

<<m161_Crosses_45deg_Hloop_up_T15K_T_dep__Gradio_20190408_2000_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-9kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_up.dat>>



<<m161_Crosses_45deg_Hloop_down_T15K_T_dep__Gradio_20190408_2000_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-9kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_down.dat>>



Plot

Machine generated alternative text: 450 15K poi--Vr(mT)





m162: Crosses_Hloop_20K_dependent_45deg

07 April 2019

08:49



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal



Temperature (K)

    20

Angle of sensor θ

45





      0.2

    10

R12 = 180/1000*50 = 9

Period of measurement  (min)

            80

Notes

Over night routine

Data files

<<m162_Crosses_45deg_Hloop_up_T20K_T_dep__Gradio_20190408_2000_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-9kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_up.dat>>



<<m162_Crosses_45deg_Hloop_down_T20K_T_dep__Gradio_20190408_2000_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-9kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_down.dat>>



Plot

Machine generated alternative text: 450 20K poi--Vr(mT)



m163: Crosses_Hloop_25K_dependent_45deg

07 April 2019

08:49



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal



Temperature (K)

   25

Angle of sensor θ

45





      0.2

    10

R12 = 180/1000*50 = 9

Period of measurement  (min)

            80

Notes

Over night routine

Data files

<<m163_Crosses_45deg_Hloop_down_T25K_T_dep__Gradio_20190408_2000_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-9kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_down.dat>>



<<m163_Crosses_45deg_Hloop_up_T25K_T_dep__Gradio_20190408_2000_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-9kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_up.dat>>



Plot

Machine generated alternative text: 450 25K poi--Vr(mT)



m164: Crosses_Hloop_30K_dependent_45deg

07 April 2019

08:49



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal



Temperature (K)

  30

Angle of sensor θ

45





      0.2

    10

R12 = 180/1000*50 = 9

Period of measurement  (min)

            80

Notes

Over night routine

Data files

<<m164_Crosses_45deg_Hloop_down_T30K_T_dep__Gradio_20190408_2000_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-9kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_down.dat>>



<<m164_Crosses_45deg_Hloop_up_T30K_T_dep__Gradio_20190408_2000_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-9kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_up.dat>>



Plot

Machine generated alternative text: 450 30K poi--Vr(mT)



m165: Crosses_Hloop_35K_dependent_45deg

07 April 2019

08:49



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal



Temperature (K)

  35

Angle of sensor θ

45





      0.2

    10

R12 = 180/1000*50 = 9

Period of measurement  (min)

            80

Notes



Data files



<<m165_Crosses_45deg_Hloop_down_T35K_T_dep__Gradio_20190409_0700_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-9kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_down.dat>>



<<m165_Crosses_45deg_Hloop_up_T35K_T_dep__Gradio_20190409_0700_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-9kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_up.dat>>



Plot

450 35K



m166: Crosses_Hloop_40K_dependent_45deg

07 April 2019

08:49



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal



Temperature (K)

  40

Angle of sensor θ

45





      0.2

    10

R12 = 180/1000*50 = 9

Period of measurement  (min)

            80

Notes



Data files

<<m166_Crosses_45deg_Hloop_up_T40K_T_dep__Gradio_20190409_0700_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-9kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_up.dat>>



<<m166_Crosses_45deg_Hloop_down_T40K_T_dep__Gradio_20190409_0700_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-9kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_down.dat>>



Plot

Machine generated alternative text: 450 40K poi--Vr(mT)



m167: Crosses_Hloop_45K_dependent_45deg

07 April 2019

08:49



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal



Temperature (K)

    45

Angle of sensor θ

45





      0.2

    10

R12 = 180/1000*50 = 9

Period of measurement  (min)

            80

Notes



Data files

<<m167_Crosses_45deg_Hloop_down_T45K_T_dep__Gradio_20190409_0700_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-9kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_down.dat>>



<<m167_Crosses_45deg_Hloop_up_T45K_T_dep__Gradio_20190409_0700_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-9kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_up.dat>>



Plot

Machine generated alternative text: 450 45K





m168: Crosses_Hloop_50K_dependent_45deg

07 April 2019

08:49



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal



Temperature (K)

    50

Angle of sensor θ

45





      0.2

    10

R12 = 180/1000*50 = 9

Period of measurement  (min)

            80

Notes



Data files

<<m168_Crosses_45deg_Hloop_up_T50K_T_dep__Gradio_20190409_0700_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-9kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_up.dat>>



<<m168_Crosses_45deg_Hloop_down_T50K_T_dep__Gradio_20190409_0700_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-9kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_down.dat>>



Plot





m169: Crosses_Hloop_55K_dependent_45deg

07 April 2019

08:49



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal



Temperature (K)

   55

Angle of sensor θ

45





      0.2

    10

R12 = 180/1000*50 = 9

Period of measurement  (min)

            80

Notes



Data files

<<m169_Crosses_45deg_Hloop_down_T55K_T_dep__Gradio_20190409_0700_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-9kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_down.dat>>



<<m169_Crosses_45deg_Hloop_up_T55K_T_dep__Gradio_20190409_0700_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-9kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_up.dat>>



Plot





m170: Crosses_Hloop_60K_dependent_45deg

07 April 2019

08:49



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal



Temperature (K)

60

Angle of sensor θ

45





      0.2

    10

R12 = 180/1000*50 = 9

Period of measurement  (min)

            80

Notes



Data files

<<m170_Crosses_45deg_Hloop_down_T60K_T_dep__Gradio_20190409_0700_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-9kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_down.dat>>



<<m170_Crosses_45deg_Hloop_up_T60K_T_dep__Gradio_20190409_0700_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-9kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_up.dat>>



Plot

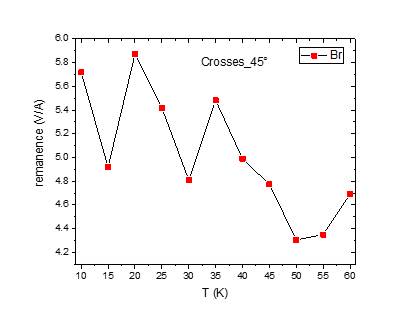

Machine generated alternative text:

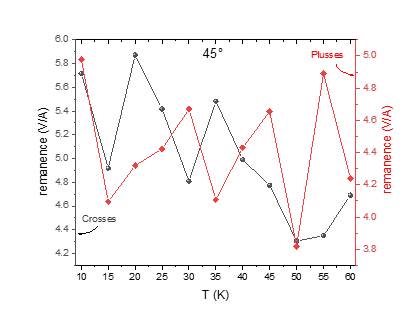

All Hloops_crosses

10 April 2019

17:32



0035% 45' WoHc(mT) C 「 osses 45 ' FW 工 M 40 10 Crosses Plusses 15 20 25 30 45 (VIA) remanence MA)



Left empty

Freitag, 12. April 2019

08:13



m171: Plusses_Hloop_60K_dependent_45deg

Dienstag, 9. April 2019

19:42

Sensor 26 3um Tetrahedral CoFe nanostructures D B x A and B: old square ASI

Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal



Temperature (K)



Angle of sensor θ











R12 = 300/1000*50 = 15

Period of measurement  (min)



Notes



Data files

<<m171_Plusses_45deg_Hloop_up_T60K_T_dep__Gradio_20190409_1900_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-15kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_up.dat>>



<<m171_Plusses_45deg_Hloop_down_T60K_T_dep__Gradio_20190409_1900_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-15kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_down.dat>>



Plot





m172: Plusses_Hloop_55K_dependent_45deg

Dienstag, 9. April 2019

19:42

Sensor 26 3um Tetrahedral CoFe nanostructures D B x A and B: old square ASI

Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal



Temperature (K)



Angle of sensor θ











R12 = 300/1000*50 = 15

Period of measurement  (min)



Notes



Data files

<<m172_Plusses_45deg_Hloop_down_T55K_T_dep__Gradio_20190409_1900_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-15kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_down.dat>>



<<m172_Plusses_45deg_Hloop_up_T55K_T_dep__Gradio_20190409_1900_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-15kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_up.dat>>



Plot





m173: Plusses_Hloop_50K_dependent_45deg

Dienstag, 9. April 2019

19:42

Sensor 26 3um Tetrahedral CoFe nanostructures D B x A and B: old square ASI

Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal



Temperature (K)



Angle of sensor θ











R12 = 300/1000*50 = 15

Period of measurement  (min)



Notes



Data files

<<m173_Plusses_45deg_Hloop_up_T50K_T_dep__Gradio_20190409_1900_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-15kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_up.dat>>



<<m173_Plusses_45deg_Hloop_down_T50K_T_dep__Gradio_20190409_1900_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-15kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_down.dat>>



Plot





m174: Plusses_Hloop_45K_dependent_45deg

Dienstag, 9. April 2019

19:42

Sensor 26 3um Tetrahedral CoFe nanostructures D B x A and B: old square ASI

Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal



Temperature (K)



Angle of sensor θ











R12 = 300/1000*50 = 15

Period of measurement  (min)



Notes



Data files

<<m174_Plusses_45deg_Hloop_down_T45K_T_dep__Gradio_20190409_1900_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-15kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_down.dat>>



<<m174_Plusses_45deg_Hloop_up_T45K_T_dep__Gradio_20190409_1900_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-15kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_up.dat>>



Plot





m175: Plusses_Hloop_40K_dependent_45deg

Dienstag, 9. April 2019

19:42

Sensor 26 3um Tetrahedral CoFe nanostructures D B x A and B: old square ASI

Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal



Temperature (K)



Angle of sensor θ











R12 = 300/1000*50 = 15

Period of measurement  (min)



Notes



Data files

<<m175_Plusses_45deg_Hloop_down_T40K_T_dep__Gradio_20190409_1900_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-15kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_down.dat>>



<<m175_Plusses_45deg_Hloop_up_T40K_T_dep__Gradio_20190409_1900_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-15kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_up.dat>>



Plot





m176: Plusses_Hloop_35K_dependent_45deg

Dienstag, 9. April 2019

19:42

Sensor 26 3um Tetrahedral CoFe nanostructures D B x A and B: old square ASI

Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal



Temperature (K)



Angle of sensor θ











R12 = 300/1000*50 = 15

Period of measurement  (min)



Notes



Data files

<<m176_Plusses_45deg_Hloop_up_T35K_T_dep__Gradio_20190409_1900_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-15kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_up.dat>>



<<m176_Plusses_45deg_Hloop_down_T35K_T_dep__Gradio_20190409_1900_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-15kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_down.dat>>



Plot





m177: Plusses_Hloop_30K_dependent_45deg

Dienstag, 9. April 2019

19:42

Sensor 26 3um Tetrahedral CoFe nanostructures D B x A and B: old square ASI

Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal



Temperature (K)



Angle of sensor θ











R12 = 300/1000*50 = 15

Period of measurement  (min)



Notes



Data files

<<m177_Plusses_45deg_Hloop_down_T30K_T_dep__Gradio_20190409_1900_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-15kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_down.dat>>



<<m177_Plusses_45deg_Hloop_up_T30K_T_dep__Gradio_20190409_1900_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-15kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.2T_gate-0V_up.dat>>



Plot





m178: PlussesCrossesEmpty_Parallel Hloop_45deg

Mittwoch, 10. April 2019

17:50



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal

Angle of sensor θ







    1

      1000

R12 = 40/1000*50 =

Period of measurement  (min)



Notes



Data files

<<m178_cros_plu_emp_45deg_Hloop_down_Parallel_20190410_1800_I-7-14_GB8-1-13_GB9-2-12_GB13-6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_T-30K_SR-10-T-min_B-1T_gate-0V_a_.dat>>



<<m178_cros_plu_emp_45deg_Hloop_up_Parallel_20190410_1800_I-7-14_GB8-1-13_GB9-2-12_GB13-6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_T-30K_SR-10-T-min_B-1T_gate-0V_a_.dat>>



Plot







C: Changing angle (-80)

Mittwoch, 10. April 2019

17:54



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal

VH(max)  (mV)

11,164mV

Angle of sensor calculator

V_H= Cos(-80)*11,164 = 1,938608255473611 mV

Before changing: 7.414mV

Measured:1.938mV





    1

Period of measurement



Notes



Data files



Plot





m179: Crosses_Hloop_30K_dependent_(-80)deg

Mittwoch, 10. April 2019

17:55



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal

Temperature (K)

30K

Angle of sensor θ

-80





      0.4

    10

R12 = 135/1000*50 = 6,75

Period of measurement  (min)

            160

Notes

Over night and dayliht routine

Data files



<<m179_Crosses_-80deg_Hloop_down_T30K_T_dep__Gradio_20190410_1800_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-6.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_down.dat>>



<<m179_Crosses_-80deg_Hloop_up_T30K_T_dep__Gradio_20190410_1800_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-6.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_up.dat>>



Plot

Machine generated alternative text: -800 30K mo uoHÅmT)





m180: Crosses_Hloop_35K_dependent_(-80)deg

Mittwoch, 10. April 2019

17:55



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal

Temperature (K)

35K

Angle of sensor θ

-80





      0.4

    10

R12 = 135/1000*50 = 6,75

Period of measurement  (min)

            160

Notes

Over night and dayliht routine

Data files



<<m180_Crosses_-80deg_Hloop_down_T35K_T_dep__Gradio_20190410_1800_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-6.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_down.dat>>



<<m180_Crosses_-80deg_Hloop_up_T35K_T_dep__Gradio_20190410_1800_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-6.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_up.dat>>



Plot



Machine generated alternative text: -800 35K 08 mo uoHÅmT)





m181: Crosses_Hloop_40K_dependent_(-80)deg

Mittwoch, 10. April 2019

17:55



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal

Temperature (K)

40K

Angle of sensor θ

-80





      0.4

    10

R12 = 135/1000*50 = 6,75

Period of measurement  (min)

            160

Notes

Over night and dayliht routine

Data files



<<m181_Crosses_-80deg_Hloop_down_T40K_T_dep__Gradio_20190410_1800_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-6.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_down.dat>>



<<m181_Crosses_-80deg_Hloop_up_T40K_T_dep__Gradio_20190410_1800_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-6.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_up.dat>>



Plot

Machine generated alternative text: -800 40K mo uoHÅmT)



m182: Crosses_Hloop_45K_dependent_(-80)deg

Mittwoch, 10. April 2019

17:55



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal

Temperature (K)

45K

Angle of sensor θ

-80





      0.4

    10

R12 = 135/1000*50 = 6,75

Period of measurement  (min)

            160

Notes

Over night and dayliht routine

Data files



<<m182_Crosses_-80deg_Hloop_down_T45K_T_dep__Gradio_20190410_1800_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-6.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_down.dat>>



<<m182_Crosses_-80deg_Hloop_up_T45K_T_dep__Gradio_20190410_1800_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-6.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_up.dat>>



Plot

Machine generated alternative text: -800 45K mo uoHÅmT)





m183: Crosses_Hloop_50K_dependent_(-80)deg

Donnerstag, 11. April 2019

07:56



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal

Temperature (K)

50K

Angle of sensor θ

-80





      0.4

    10

R12 = 135/1000*50 = 6,75

Period of measurement  (min)

            160

Notes

Over night and dayliht routine

Data files



<<m183_Crosses_-80deg_Hloop_down_T50K_T_dep__Gradio_20190410_1800_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-6.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_down.dat>>



<<m183_Crosses_-80deg_Hloop_up_T50K_T_dep__Gradio_20190410_1800_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-6.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_up.dat>>



Plot

Machine generated alternative text: -800 50K mo uoHÅmT)



m184: Crosses_Hloop_55K_dependent_(-80)deg

Donnerstag, 11. April 2019

17:55



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal

Temperature (K)

55K

Angle of sensor θ

-80





      0.4

    10

R12 = 135/1000*50 = 6,75

Period of measurement  (min)

            160

Notes

Over night and dayliht routine

Data files



<<m184_Crosses_-80deg_Hloop_down_T55K_T_dep__Gradio_20190410_1800_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-6.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_down.dat>>



<<m184_Crosses_-80deg_Hloop_up_T55K_T_dep__Gradio_20190410_1800_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-6.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_up.dat>>



Plot

Machine generated alternative text: 450 55K mo uoHÅmT)



m185: Crosses_Hloop_60K_dependent_(-80)deg

Donnerstag, 11. April 2019

17:55



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal

Temperature (K)

60K

Angle of sensor θ

-80





      0.4

    10

R12 = 135/1000*50 = 6,75

Period of measurement  (min)

            160

Notes

Over night and dayliht routine

Data files



<<m185_Crosses_-80deg_Hloop_up_T60K_T_dep__Gradio_20190410_1800_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-6.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_up.dat>>



<<m185_Crosses_-80deg_Hloop_down_T60K_T_dep__Gradio_20190410_1800_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-6.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_down.dat>>



Plot

Machine generated alternative text: 450 60K 12 uoHÅmT)





Filling He(l)

Donnerstag, 11. April 2019

16:48



1.  He(l)

27in

11.04.2019

1648

Person

2.  He(l)

36

08.04.2019

1715

MAM



Notes:

·



'To do:





m186: Crosses_Hloop_65K_dependent_(-80)deg

Donnerstag, 11. April 2019

17:55



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal

Temperature (K)

65K

Angle of sensor θ

-80





      0.35

    10

R12 = 135/1000*50 = 6,75

Period of measurement  (min)

            160

Notes

Over night and dayliht routine

Data files



<<m186_Crosses_-80deg_Hloop_down_T65K_T_dep__Gradio_20190411_1700_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-6.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_down.dat>>



<<m186_Crosses_-80deg_Hloop_up_T65K_T_dep__Gradio_20190411_1700_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-6.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_up.dat>>



Plot

-800 65K



m187: Crosses_Hloop_70K_dependent_(-80)deg

Donnerstag, 11. April 2019

17:55



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal

Temperature (K)

60K

Angle of sensor θ

-80





      0.35

    10

R12 = 135/1000*50 = 6,75

Period of measurement  (min)

            160

Notes

Over night and dayliht routine

Data files



<<m187_Crosses_-80deg_Hloop_up_T70K_T_dep__Gradio_20190411_1700_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-6.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_up.dat>>



<<m187_Crosses_-80deg_Hloop_down_T70K_T_dep__Gradio_20190411_1700_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-6.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_down.dat>>





Plot

Machine generated alternative text: -800 70K 12 uoHÅmT)



m188: Crosses_Hloop_75K_dependent_(-80)deg

Donnerstag, 11. April 2019

17:55



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal

Temperature (K)

60K

Angle of sensor θ

-80





      0.35

    10

R12 = 135/1000*50 = 6,75

Period of measurement  (min)

            160

Notes

Over night and dayliht routine

Data files



<<m188_Crosses_-80deg_Hloop_up_T75K_T_dep__Gradio_20190411_1700_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-6.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_up.dat>>



<<m188_Crosses_-80deg_Hloop_down_T75K_T_dep__Gradio_20190411_1700_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-6.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_down.dat>>



Plot

Machine generated alternative text: -800 75K E 14 mo uoHÅmT)





m189: Crosses_Hloop_80K_dependent_(-80)deg

Donnerstag, 11. April 2019

17:55



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal

Temperature (K)

80K

Angle of sensor θ

-80





      0.35

    10

R12 = 135/1000*50 = 6,75

Period of measurement  (min)

            160

Notes

Over night and dayliht routine

Data files



<<m189_Crosses_-80deg_Hloop_up_T80K_T_dep__Gradio_20190411_1700_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-6.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_up.dat>>



<<m189_Crosses_-80deg_Hloop_down_T80K_T_dep__Gradio_20190411_1700_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-6.75kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_down.dat>>





Plot

-800 80K



Left empty

Freitag, 12. April 2019

08:13



m190: Plusses_Hloop_80K_dependent_(-80)deg

Freitag, 12. April 2019

08:12

Sensor 26 3um Tetrahedral CoFe nanostructures D B x A and B: old square ASI

Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal



Temperature (K)

       80

Angle of sensor θ

-80





     0.5

      10

R12 = 230/1000*50 = 11,5

Period of measurement  (min)

           200

Notes



Data files

<<m190_Plusses_-80deg_Hloop_down_T80K_T_dep__Gradio_20190412_0800_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-11.5kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.5T_gate-0V_down.dat>>



<<m190_Plusses_-80deg_Hloop_up_T80K_T_dep__Gradio_20190412_0800_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-11.5kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.5T_gate-0V_up.dat>>



Plot

Machine generated alternative text: -800 80K -40 40 uoHÅmT)





m191: Plusses_Hloop_70K_dependent_(-80)deg

Freitag, 12. April 2019

08:12

Sensor 26 3um Tetrahedral CoFe nanostructures D B x A and B: old square ASI

Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal



Temperature (K)

       70

Angle of sensor θ

-80





     0.5

      10

R12 = 230/1000*50 = 11,5

Period of measurement  (min)

           200

Notes



Data files



<<m191_Plusses_-80deg_Hloop_down_T70K_T_dep__Gradio_20190412_0800_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-11.5kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.5T_gate-0V_down.dat>>



<<m191_Plusses_-80deg_Hloop_up_T70K_T_dep__Gradio_20190412_0800_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-11.5kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.5T_gate-0V_up.dat>>

Plot

Machine generated alternative text: 02 -800 70K -40 40 uoHÅmT)





m192: Plusses_Hloop_60K_dependent_(-80)deg

Freitag, 12. April 2019

08:12

Sensor 26 3um Tetrahedral CoFe nanostructures D B x A and B: old square ASI

Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal



Temperature (K)

       60

Angle of sensor θ

-80





     0.5

      10

R12 = 230/1000*50 = 11,5

Period of measurement  (min)

           200

Notes



Data files



<<m192_Plusses_-80deg_Hloop_down_T60K_T_dep__Gradio_20190412_0800_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-11.5kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.5T_gate-0V_down.dat>>



<<m192_Plusses_-80deg_Hloop_up_T60K_T_dep__Gradio_20190412_0800_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-11.5kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.5T_gate-0V_up.dat>>

Plot

Machine generated alternative text: -800 60K -40 40 uoHÅmT)





m193: Plusses_Hloop_50K_dependent_(-80)deg

Freitag, 12. April 2019

08:12

Sensor 26 3um Tetrahedral CoFe nanostructures D B x A and B: old square ASI

Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal



Temperature (K)

     50

Angle of sensor θ

-80





     0.5

      10

R12 = 230/1000*50 = 11,5

Period of measurement  (min)

           200

Notes



Data files

<<m193_Plusses_-80deg_Hloop_down_T50K_T_dep__Gradio_20190412_0800_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-11.5kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.5T_gate-0V_down.dat>>



<<m193_Plusses_-80deg_Hloop_up_T50K_T_dep__Gradio_20190412_0800_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-11.5kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.5T_gate-0V_up.dat>>



Plot

-800 50K -400 -Icn o Icn voHat(mT) 400



m194: Plusses_Hloop_40K_dependent_(-80)deg

Freitag, 12. April 2019

08:12

Sensor 26 3um Tetrahedral CoFe nanostructures D B x A and B: old square ASI

Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal



Temperature (K)

       40

Angle of sensor θ

-80





     0.5

      10

R12 = 230/1000*50 = 11,5

Period of measurement  (min)

           200

Notes



Data files

<<m194_Plusses_-80deg_Hloop_up_T40K_T_dep__Gradio_20190412_0800_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-11.5kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.5T_gate-0V_up.dat>>



<<m194_Plusses_-80deg_Hloop_down_T40K_T_dep__Gradio_20190412_0800_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-11.5kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.5T_gate-0V_down.dat>>

Plot

-800 40K





m195: Plusses_Hloop_30K_dependent_(-80)deg

Freitag, 12. April 2019

08:12

Sensor 26 3um Tetrahedral CoFe nanostructures D B x A and B: old square ASI

Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal



Temperature (K)

     30

Angle of sensor θ

-80





     0.5

      10

R12 = 230/1000*50 = 11,5

Period of measurement  (min)

           200

Notes



Data files

<<m195_Plusses_-80deg_Hloop_down_T30K_T_dep__Gradio_20190412_0800_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-11.5kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.5T_gate-0V_down.dat>>



<<m195_Plusses_-80deg_Hloop_up_T30K_T_dep__Gradio_20190412_0800_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-11.5kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.5T_gate-0V_up.dat>>

Plot

-800 30K -400 -Icn o Icn voHat(mT) 400





m196: Plusses_Hloop_20K_dependent_(-80)deg

Freitag, 12. April 2019

08:12

Sensor 26 3um Tetrahedral CoFe nanostructures D B x A and B: old square ASI

Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal



Temperature (K)

    20

Angle of sensor θ

-80





     0.5

      10

R12 = 230/1000*50 = 11,5

Period of measurement  (min)

           200

Notes



Data files

<<m196_Plusses_-80deg_Hloop_down_T20K_T_dep__Gradio_20190412_0800_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-11.5kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.5T_gate-0V_down.dat>>



<<m196_Plusses_-80deg_Hloop_up_T20K_T_dep__Gradio_20190412_0800_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-11.5kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.5T_gate-0V_up.dat>>

Plot

-04 -800 20K -400 -Icn o Icn voHat(mT) 400



m197: Plusses_Hloop_10K_dependent_(-80)deg

Freitag, 12. April 2019

08:12

Sensor 26 3um Tetrahedral CoFe nanostructures D B x A and B: old square ASI

Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal



Temperature (K)

     10

Angle of sensor θ

-80





     0.5

      10

R12 = 230/1000*50 = 11,5

Period of measurement  (min)

           200

Notes



Data files

<<m197_Plusses_-80deg_Hloop_down_T10K_T_dep__Gradio_20190412_0800_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-11.5kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.5T_gate-0V_down.dat>>



<<m197_Plusses_-80deg_Hloop_up_T10K_T_dep__Gradio_20190412_0800_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-11.5kO_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.5T_gate-0V_up.dat>>





Plot

-800 1 OK -400 -Icn o Icn voHat(mT) 400



Filling He(l)

Sonntag, 14. April 2019

09:22



1.  He(l)

27.53 in

14.04.2019

0925

Person

2.  He(l)

36.22 in

08.04.2019

0945

MAM



Notes:

·



'To do:





m198: Crosses_Hloop_10K_dependent_(-80)deg

Sonntag, 14. April 2019

09:57



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal

Temperature (K)

10K

Angle of sensor θ

-80





      0.4

    10

R12 = 0/1000*50 = 0

Period of measurement  (min)

            160

Notes



Data files





<<m198_Crosses_-80deg_Hloop_down_T10K_T_dep__Gradio_20190414_1000_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-0_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_down.dat>>



<<m198_Crosses_-80deg_Hloop_up_T10K_T_dep__Gradio_20190414_1000_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-0_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_up.dat>>



Plot

Machine generated alternative text: -800 10K mo uoHÅmT)



m199: Crosses_Hloop_15K_dependent_(-80)deg

Sonntag, 14. April 2019

09:57



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal

Temperature (K)

15K

Angle of sensor θ

-80





      0.4

    10

R12 = 0/1000*50 = 0

Period of measurement  (min)

            160

Notes



Data files



<<m199_Crosses_-80deg_Hloop_up_T15K_T_dep__Gradio_20190414_1000_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-0_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_up.dat>>



<<m199_Crosses_-80deg_Hloop_down_T15K_T_dep__Gradio_20190414_1000_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-0_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_down.dat>>





Plot



Machine generated alternative text: -800 15K mo uoHÅmT)



m200: Crosses_Hloop_20K_dependent_(-80)deg

Sonntag, 14. April 2019

09:57



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal

Temperature (K)

20K

Angle of sensor θ

-80





      0.4

    10

R12 = 0/1000*50 = 0

Period of measurement  (min)

            160

Notes



Data files

<<m200_Crosses_-80deg_Hloop_down_T20K_T_dep__Gradio_20190414_1000_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-0_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_down.dat>>



<<m200_Crosses_-80deg_Hloop_up_T20K_T_dep__Gradio_20190414_1000_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-0_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_up.dat>>



Plot

-800 20K N 07 voHat(mT)





m201: Crosses_Hloop_25K_dependent_(-80)deg

Sonntag, 14. April 2019

09:57



Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal

Temperature (K)

25K

Angle of sensor θ

-80





      0.4

    10

R12 = 0/1000*50 = 0

Period of measurement  (min)

            160

Notes



Data files



<<m201_Crosses_-80deg_Hloop_up_T25K_T_dep__Gradio_20190414_1000_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-0_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_up.dat>>



<<m201_Crosses_-80deg_Hloop_down_T25K_T_dep__Gradio_20190414_1000_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-0_R13-0_R21-1MO_C11-1_C21-6_SR-0.01-T-min_B-0.4T_gate-0V_down.dat>>



Plot



Machine generated alternative text: -800 25K mo uoHÅmT)





m202: PlussesCrossesEmpty_Parallel Hloop_(-80)deg

Montag, 15. April 2019

09:20

Float/Ground:

Ground

AC/DC:

AC

A/A-B:

A-B

Reserve:

Normal

Source:

Internal

Angle of sensor θ

-80





    1

      1000

R12 = 40/1000*50 =

Period of measurement  (min)



Notes



Data files

<<m202_cros_plu_emp_-80deg_Hloop_down_Parallel_20190415_0900_I-7-14_GB8-1-13_GB9-2-12_GB13-6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_T-30K_SR-10-T-min_B-1T_gate-0V_a_.dat>>



<<m202_cros_plu_emp_-80deg_Hloop_up_Parallel_20190415_0900_I-7-14_GB8-1-13_GB9-2-12_GB13-6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_T-30K_SR-10-T-min_B-1T_gate-0V_b_.dat>>





Plot





Comparison_crosses

15 April 2019

08:13



Machine generated alternative text: 80K 75K 70K 65K 60K 55K 50K 45K 35K 30K 25K 20K 15K 10K -300 -200 -100 0



Comparison_Plusses

15 April 2019

08:13

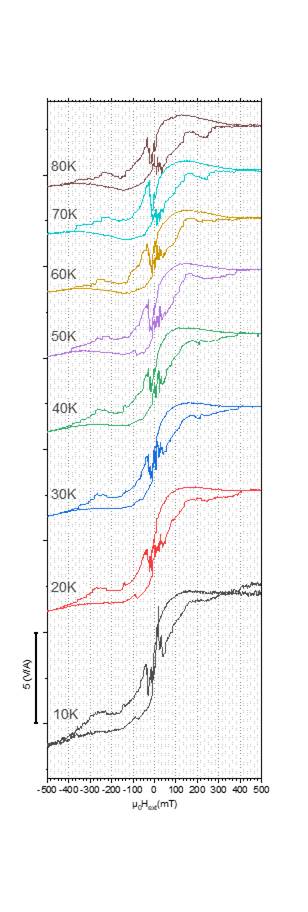

Machine generated alternative text: 80K 70K 60K 50K 40K 30K 20K 10K -no -40-300-zn-lm 0 100 200300
