Analysing FORC Data
Assuming an Input as multiple csv files (with a space as separator) like the following Table:
\(H_{ext}\) | \(V_H\) |
|---|
The unit row is being ignored by this script. Optional a third row with the temperature is valid (need to change code in the end). Adjust folder to the place where you’ve put your *.dat files. \(V_i\) will be devided by current to determine the resistance \(R_i\).
File structure
The csv input files should use the following naming convention: * Every File contains HA= in the name to determine the reversal Field \(H_A\) * Immediately after HA= must be the field value followed by .dat * Down Sweeps: contain the word down_to in the name and will be ignored * Saturation Measurements at \(H_S\) (containing only information about the saturation field value): contain the word _sat_ * All other files are up sweeps from \(H_A\) to \(H_S\)
Example
Some_Ignored_Informations_down_to_HA=1.500000.dat
Some_Ignored_Informations_sat_HA=1.500000.dat
Some_Ignored_Informations_upinformation_HA=1.500000.dat
Some_Ignored_Informations_down_to_HA=0.000000.dat
Some_Ignored_Informations_sat_HA=0.000000.dat
Some_Ignored_Informations_upinformation_HA=0.000000.dat
Some_Ignored_Informations_down_to_HA=-1.500000.dat
Some_Ignored_Informations_sat_HA=-1.500000.dat
Some_Ignored_Informations_upinformation_HA=-1.500000.dat
Output
The output will be a file output.dat which contains a header that is readable by FORCinel and a Table like the following:
\(\langle H_S\rangle\) | \(\langle R_S \rangle\) |
\(H_{A_1}\) | \(R(H_{A_1})\) |
\(H_S\) | \(R(H_S)\) |
\(\langle H_S\rangle\) | \(\langle R_S \rangle\) |
\(H_{A_2}\) | \(R(H_{A_2})\) |
\(H_{i}\) | \(R(H_i)\) |
\(H_S\) | \(R(H_S)\) |
With 2 entries for the first reversal field \(H_{A_1}\) and one more entry with each following reversal field (ordered by the magnitude of the reversal fields starting at \(\max(H_{A_i})\) and ending at \(\min(H_{A_i})\))
Example
MicroMag 2900/3900 Data File (Series 0015)
First-order reversal curves
Configuration : VSM
Hardware version: 0004
Software version: 11/20/2006
Units of measure: mks
Temperature in : Kelvin
01/11/2007 15:01
bg1.11 frag c.03 taped sample forc
Averaging time = +1.000000E-01
Hb1 = -1.000000E+03
Hb2 = +1.000000E+03
Hc1 = 0.000000E+00
Hc2 = +3.000000E+03
HCal = +1.500000E-01
HNcr = +2.000005E-03
HSat = +1.500000E-01
NCrv = 100
PauseCal = +1.000000E+00
PauseNtl = +1.000000E+00
PauseSat = +1.000000E+00
SlewRate = +1.000000E+04
Smoothing = 5
Field range = +1.500000E-01
Moment range = +1.000000E-02
Temperature = +0.000000E+00
Orientation = +9.000001E+01
Elapsed time = +6.436355E+06
Slope corr. = N/A
Saturation = N/A
NData = 5250
1.500000E+02,1.320206E+00
+4.820400E+01,+1.226155E+00
+1.500000E+02,+1.320205E+00
1.500000E+02,1.320204E+00
+4.620800E+01,+1.221773E+00
+9.810400E+01,+1.293156E+00
+1.500000E+02,+1.320204E+00
1.500000E+02,1.320207E+00
+4.421200E+01,+1.217202E+00
+7.947467E+01,+1.275475E+00
+1.147373E+02,+1.304538E+00
+1.500000E+02,+1.320206E+00
[1]:
__author__ = 'Jonathan Pieper'
__license__ = 'tbd'
__version__ = '0.1'
__status__ = "Development"
import os, sys, time
from glob import glob
import pylab as plt
import numpy as np
from scipy import stats
import pandas as pd
from scipy.interpolate import interp1d
folder = "C:\\Users\\user\\Documents\\cubes_theta_0deg"
header = ['H', 'V'] # Column names
current = 1 #2.5e-6
fit_data = True # Fitting gradiometry data (subtracting linear fit)
out_name = "output.dat"
[2]:
def get_filenames(datadir):
"""Returns all *.dat files in data directory"""
os.chdir(datadir)
return glob("*.dat")
def sort_files(filenames):
"""Sorting files by filename key HA"""
sort_dict = {}
saturation_dict = {}
for f in filenames:
if(f.find("HA=") == -1 or # File must have HA=
f.find("down_to") != -1): # File musn't have down_to
continue
pos1 = f.find("HA=") + 3 # Cursor Position after HA=
pos2 = f.find(".dat") # Cursor Position before .dat
HA = float(f[pos1:pos2]) # Number between cursor positions
if(f.find("_sat_") != -1): # Saturation for Average
saturation_dict[HA] = f
else: # Up-Sweeps
sort_dict[HA] = f
new_filenames = []
saturation = []
for HA in sorted(sort_dict):
new_filenames.append(sort_dict[HA])
saturation.append(saturation_dict[HA])
new_filenames.reverse() # From + to -
saturation.reverse() # From + to -
return new_filenames, saturation
def load_file(filename):
"""Loading File into an Array"""
data = np.genfromtxt(filename, skip_footer=1, skip_header=5, delimiter='\t')
return data
def write(name, H, R, T, sat):
"""Writing results into file"""
len_data = len(H)
for i in range(len(H)):
len_data += i+2
num_curves = len(H)
if not T:
Temp = 0
else:
Temp = T[0][0]
f = open(name, 'w')
f.write('MicroMag 2900/3900 Data File (Series 0015)\n' +
'First-order reversal curves\n' +
'Configuration : VSM\n' +
'Hardware version: 0004\n' +
'Software version: 11/20/2006\n' +
'Units of measure: mks\n' +
'Temperature in : Kelvin\n' +
'01/11/2007 15:01\n' +
'bg1.11 frag c.03 taped sample forc\n'+
'\n'+
'Averaging time = +1.000000E-01\n' +
'Hb1 = -1.000000E+03\n' +
'Hb2 = +1.000000E+03\n' +
'Hc1 = 0.000000E+00\n' +
'Hc2 = +3.000000E+03\n' +
'HCal = +1.500000E-01\n' +
'HNcr = +2.000005E-03\n' +
'HSat = +1.500000E-01\n' +
'NCrv = %d\n' % (num_curves) +
'PauseCal = +1.000000E+00\n' +
'PauseNtl = +1.000000E+00\n' +
'PauseSat = +1.000000E+00\n' +
'SlewRate = +1.000000E+04\n' +
'Smoothing = 5\n' +
'\n' +
'Field range = +1.500000E-01\n' +
'Moment range = +1.000000E-02\n' +
'Temperature = +%.6E\n' % (Temp) +
'Orientation = +9.000001E+01\n' +
'Elapsed time = +6.436355E+06\n' +
'Slope corr. = N/A\n' +
'Saturation = N/A\n' +
'NData = %d\n' % (len_data))

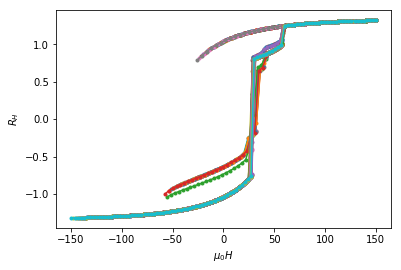

fig = plt.figure()
for i in range(len(H)):
c = np.linspace(H[i][0], H[i][-1], i+2)
# c = Array between beginning and end H with i+2 values.
f1 = interp1d(H[i], R[i], kind = 'linear')
if T:
t = interp1d(H[i], T[i], kind = 'linear')
y=[]
if not T:
f.write('\n%.6E,%.6E\n\n' % (H[i][-1],sat[i]))
else:
f.write('\n%.6E,%.6E,%.6E\n\n' % (H[i][-1],sat[i],T[i][-1]))
for k in range(len(c)):
val = f1(c[k])
y.append(val)
if not T:
f.write('%+.6E,%+.6E\n' % (c[k], val))
else:
f.write('%+.6E,%+.6E,%+.6E\n' % (c[k], val, t(c[k])))
plt.plot(c, y, linestyle="solid", marker=".")
# for i in range(len(H)):
# f.write("\n%.5E,%.5E,%.5E\n\n" % (.15, sat[i], T[i][0]))
# for j in range(len(H[i])):
# f.write("%.5E,%.5E,%.5E\n" % (H[i][j], R[i][j], T[i][j]))
f.close()
plt.xlabel("$\mu_0 H$")
plt.ylabel("$R_H$")
[3]:
def cut_data(data):
"""Cuts off the first and last values that are equal.
Returns Index of first and last value.
e.g.: [1,1,1,.5,0,0,0] -> (2, 4)"""
min_A = max_A = 0
if(data[0] == data[1]):
for i in range(len(data)):
if data[i] == data[i+1]:
min_A += 1
else:
break
if(data[-1] == data[-2]):
for i in range(len(data)-1):
if data[-(i+1)] == data[-(i+2)]:
max_A += 1
else:
break
return min_A, -max_A
[4]:
all_files = get_filenames(folder)
all_files_sorted, saturation = sort_files(all_files)
#fig = plt.figure()
H_list = []
R_list = []
T_list = []
for f in all_files_sorted:
data = pd.read_csv(f, sep=' ', header=2, names=header, index_col=False)
H = np.array(data.H)
V = np.array(data.V)
if fit_data:
fit_area = data[data.H < data.H.min() + 150]
fit = scipy.stats.linregress(fit_area.H, fit_area.H)
fitting_line = (data.H*fit.slope + fit.intercept)
V = V - fitting_line
#data = filehandler.load_file(f)
#H = [data[i][H_idx] for i in np.arange(len(data))]
#V = [data[i][V_idx] for i in np.arange(len(data))]
#T = [data[i][T_idx] for i in np.arange(len(data))]
# Cut of unneccessary data and calculate R_H
#min_H, max_H = cut_data(H)
#H = np.array(H[min_H:max_H])
#V = np.array(V[min_H:max_H])
#T = np.array(T[min_H:max_H])
R = V/current
H_list.append(H)
R_list.append(R)
#T_list.append(T)
#plt.plot(list(H) ,list(R))
sat_avg = []
for sat in saturation:
sat_data = pd.read_csv(sat, sep=' ', header=2, names=header, index_col=False)
sat_V = np.array(sat_data.V)
sat_R = sat_V/current
sat_avg.append(np.average(sat_R))
write(out_name, H_list, R_list, T_list, sat_avg)
plt.show()
[ ]:
