01: Angles

Sensor details

05 March 2019

17:17

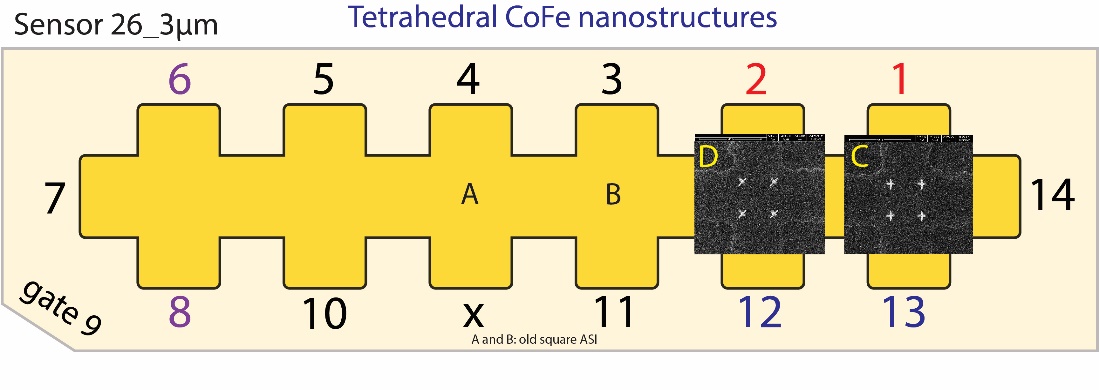

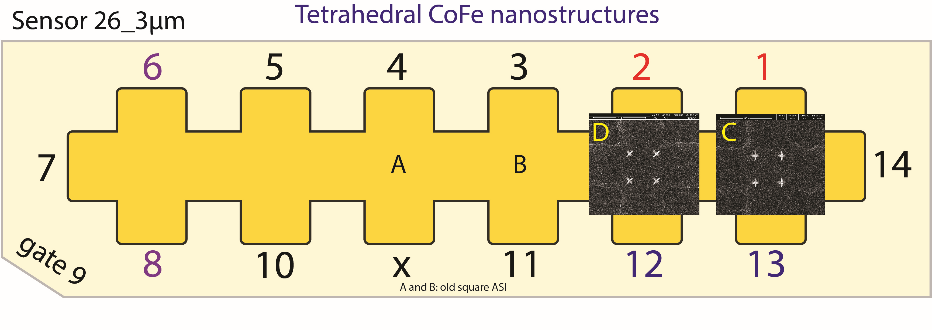

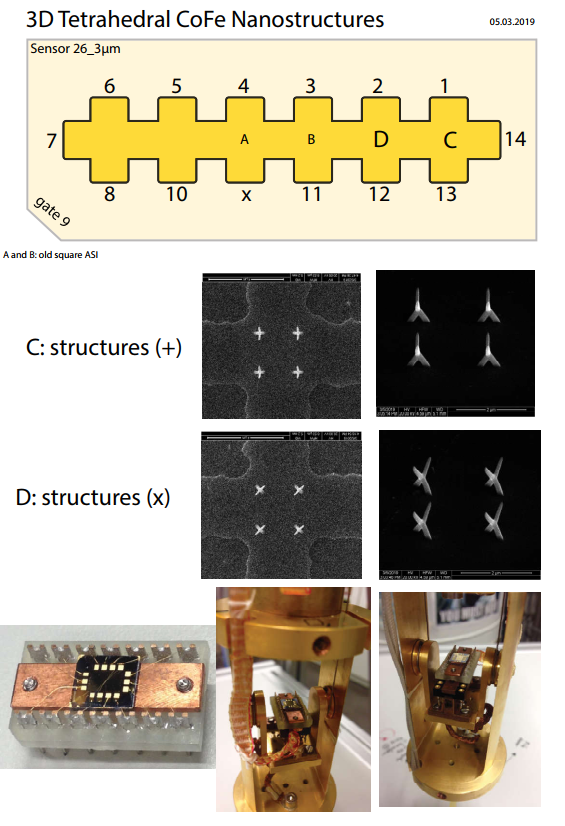

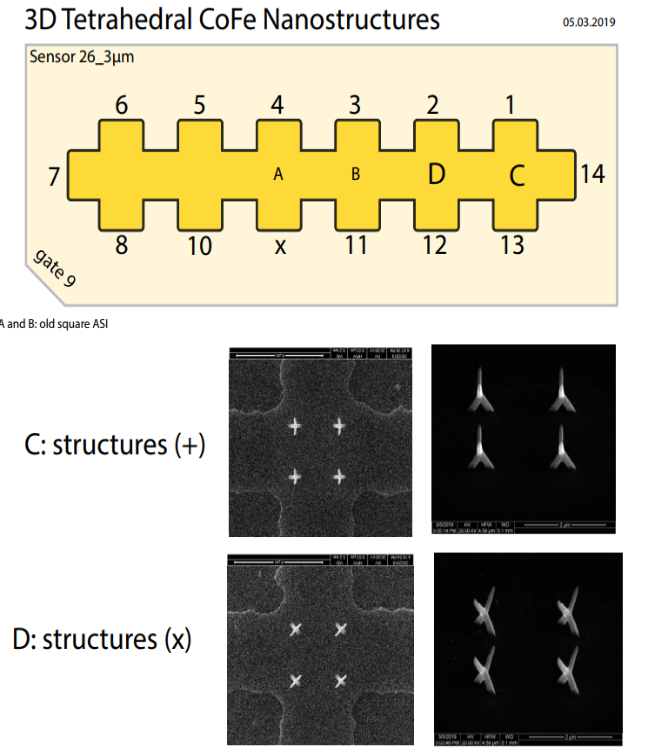

<<2_Sensor 26_3um_3D Hetro Nanostructures CoFe_drawing of crosses before measurments 05_03_2019.pdf>>

• This sensor is old fabicated by Merlin. It has 3µm cross size.

• It has been handed to Fabritizo to grow these structures shown below

Loading inside the IVC

05 March 2019

17:30

• The sensor Has been loaded on the Yoke directly after taking it out

  from the SEM chamber.

• Closing the IVC very quick.

• Pumping out the IVC for two hours (10^-5 mbar)

Loading inside Janis

06 March 2019

09:30

• Mohanad, Jens and Jonathan, managed to load the IVC inside Janis. The

  process was very gentle and the He level was 15 in. We let the system relax and filled He after 1 hour.

Introducing an exchange gas

attention please!!

06 March 2019

13:30

Important Notes:

• We had problem when we introduced and exchange gas. The temperature

  was around 200K and we introduced 1mbar for 1s. The process of cooling was very fast and we lost a lot of He(l). The cooling rate was very high and we reached 4k in 1.5 hour. That was not good and we should next time wait at least one day to cool naturally and then intorduce an exchange gas.

  Important Notes:

  Don’t introduce exchange gas too early (T > 200 K)

  Be careful and introduce as little exchange gas as possible

<<20190306-1600-I1-1-13_I2-8-6_GBIP8-14-7_Vin-1V_R1-9.25KO_R2-1MO_T-10K_0degSensor_3D-Tetra_Nano_CoFe_SR-0.02-T-min_Gradio_Up.dat>><<20190306-1600-I1-1-13_I2-8-6_GBIP8-14-7_Vin-1V_R1-9.25KO_R2-1MO_T-10K_0degSensor_3D-Tetra_Nano_CoFe_SR-0.02-T-min_Gradio_down.dat>>

M1: + Gradio 10K

Filename:

20190306_1600_…

Wednesday, 6. March 2019

15:31

200 mT	-200 mT
4 μV	-11 μV

Experiment Setup:

T = 10K

	1
	1 MΩ
	9,25 kΩ
	0
	1 MΩ
	1 μA
	1 μA
	0
Sens:	20 μV

Lock-In Setup:

Sens:	20 μV
τ:	1s
Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Cables Setup:

	13-1
	8
	7

Magnet Setup:

Range:	± 200 mT
Rate:	20 mT/min

Important Notes:

M2: + Gradio 20K

Filename:

20190306_1700_…

Mittwoch, 6. März 2019

16:00

Cables Setup:

	1-13
	8
	7

Experiment Setup:

T	20 K
	1 V
	1 MΩ
	10,5 kΩ
	0
	1 MΩ
	0,99 μA
	1 μA
	0

Lock-In Setup:

Sens:	20 μV
τ:	1s
Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

50*210/1000 = 10,5

Magnet Setup:

Range:	± 250 mT
Rate:	8 mT/min

Gradiometry Balance:

	9.5 μV
	-14.2μV
Mean:	-2.5 μV

Important Notes:

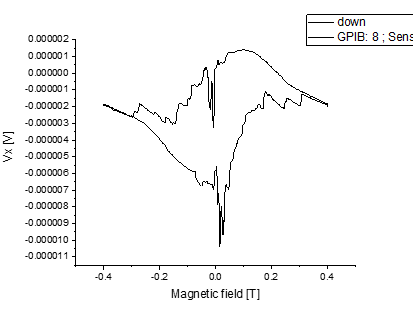

M3: + Gradio 30K

Filename:

20190307_0900…

Donnerstag, 7. März 2019

09:24

Cables Setup:

	1-13
	8
	7

Experiment Setup:

T	30 K
	1 V
	1 MΩ
	44,4 kΩ
	0
	1 MΩ
	0,99 μA
	1 μA
	0

Lock-In Setup:

Sens:	10 μV
τ:	1s
Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Magnet Setup:

Range:	± 400 mT
Rate:	30 mT/min

Important Notes:

R12 = 50*888/1000=44,4 kΩ

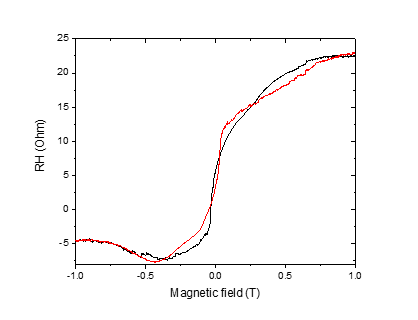

M4: + Gradio 1T

Filename:

20190307_1200…

Donnerstag, 7. März 2019

11:51

1st Run	Down
1st Run	Up
2nd Run	Down again
2nd Run	Up again

Measured everything twice to make sure it’s reproducable

Cables Setup:

	1-13
	8
	7

Experiment Setup:

T	30 K
	1 V
	1 MΩ
	6,05 kΩ
	0,19 kΩ
	1 MΩ
	1 μA
	1 μA
	0
	Pos 1 (6.8 pF)
	Pos 6 (56 pF)

Lock-In Setup:

Sens:	20 μV
τ:	1s
Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Magnet Setup:

Range:	± 1T
Rate:	150 mT/min

Gradiometry Balance:

	30 μV
	-24 μV
Mean	3μV

Important Notes:

Changing Grounding of Gate (9) and

Grounding Connection 4

Both grounded by connecting it to voltage source with Output of 0 V (at + connection, which is the inner connection of the coax-cable).

The - part (outer shield of coax-cable) is not connected.

50*121/1000 = 6,05

10*19/1000 = 0,19

M5: + Gradio 1.5T

Filename:

201903

Donnerstag, 7. März 2019

16:39

Cables Setup:

	1-13
	8
	7

Experiment Setup:

T	30 K
	1 V
	1 MΩ
	6,25 kΩ
	0
	1 MΩ
	1 μA
	1 μA
	0
	Pos 1
	Pos 6

Lock-In Setup:

Sens:	20 μV
τ:	1s
Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Magnet Setup:

Range:	± 1500 mT
Rate:	100 mT/min

Important Notes:

50*125/1000=6,25

—– Angle: 0deg —-

Dienstag, 12. März 2019

13:44

C: Changing angle 0deg (reference angle)

10 March 2019

19:37

(1) Structures measured	Empty Cross
(2) Measurement type	Angle Changing
(3) Cables Setup:	+——- —–+————+————+ | |image 164| | 14 - 7 |   | +======= =====+============+============+ | |image 165| | |   | +——- —–+————+————+ | Gate ( 9) | | | +——- —–+————+————+
(4) Magnet Setup:	B = 1 T
(5) Experiment Setup:	T 1 MΩ 0
(6) Lock-In Setup:	Sens: 20 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:	Hall Voltage of empty cross @ 1 T before changing angle (old angle 45deg) is -7.826 mV instead of expected cos(45)*11.164 = 7.894
(8) Filename and data:	No File created

Hall Voltage:

Update: this formula is not write you have to multiply by 360 not dividing by

|cos- calculaled ¯ H ( (F) from1it 2π \*360|

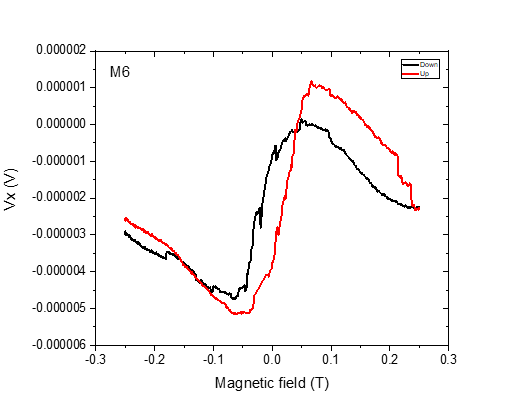

M6: Plusses_Hloop_0deg

06 March 2019

17:00

(1) Structures measured	Plusses C
name structures-measured-1

(8) Filename and data:

20190

(2) Measurement type	Hloop_gradiometry

<<20190306-1700-I1-1-13_I2-8-6_GBIP8-14-7_Vin-1V_R1-1.01MO_R2-1MO_T-20K_0degSensor_3D-Tetra_Nano_CoFe_SR-0.008-T-min_Gradio_Up.dat>>

(3) Cables Setup:

	1-13
	8-6
	7

<<20190306-1700-I1-1-13_I2-8-6_GBIP8-14-7_Vin-1V_R1-1.01MO_R2-1MO_T-20K_0degSensor_3D-Tetra_Nano_CoFe_SR-0.008-T-min_Gradio_down.dat>>

(4) Magnet Setup:

Range:
Rate:

(5) Experiment Setup:

T
	1 MΩ
	0
	0
	1 MΩ
	1 μA
	1 μA
	0

R1=1.01MO

R2=1MO

(6) Lock-In Setup:

Sens:	20 μV
τ:	1s
Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

(7) Important Notes:

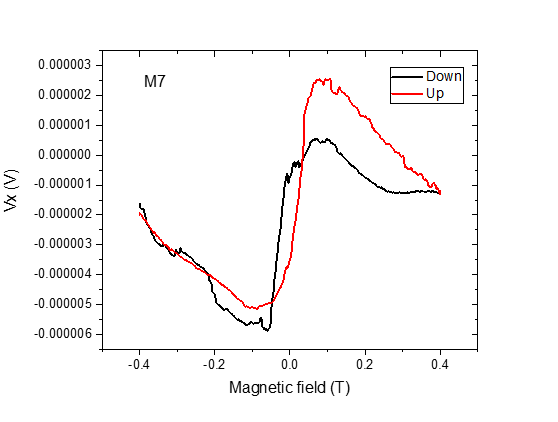

M7: Plusses_Hloop_0deg

07 March 2019

09:13

(1) Structures measured	Plusses
name structures-measured-2

(8) Filename and data:

20190

(2) Measurement type	Hloop_gradiometry

<<20190307-0900-I1-1-13_I2-8-6_GBIP8-14-7_Vin-1V_R1-1.01MO_R2-1MO_T-30K_0degSensor_3D-Tetra_Nano_CoFe_SR-0.03-T-min_B-0.4T_Gradio_Up.dat>>

(3) Cables Setup:

	1-3
	8
	7

<<20190307-0900-I1-1-13_I2-8-6_GBIP8-14-7_Vin-1V_R1-1.01MO_R2-1MO_T-30K_0degSensor_3D-Tetra_Nano_CoFe_SR-0.03-T-min_B-0.4T_Gradio_down.dat>>

(4) Magnet Setup:

Range:
Rate:

(5) Experiment Setup:

T
	1 MΩ
	0
	0
	1 MΩ
	1 μA
	1 μA
	0

(6) Lock-In Setup:

Sens:	20 μV
τ:	1s
Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

(7) Important Notes:

M8: Plusses_Hloop_0deg

07 March 2019

09:28

(1) Structures measured	Plusses
name structures-measured-3

(2) Measurement type	Hloop_gradiometry

(3) Cables Setup:

Gate (9)

(8) Filename and data:

20190

<<20190307-1200-I1-1-13_I2-8-6_GBIP8-14-7_Vin-1V_R11-1MO_R12-6.05KO_R13-0_R21-1MO_C11-1_C21-6_T-30K_0deg_plusses_SR-0.15-T-min_B-1T_gate-0V_Gradio_Up.dat>>

<<20190307-1200-I1-1-13_I2-8-6_GBIP8-14-7_Vin-1V_R11-1MO_R12-6.05KO_R13-0_R21-1MO_C11-1_C21-6_T-30K_0deg_plusses_SR-0.15-T-min_B-1T_gate-0V_Gradio_down.dat>>

(4) Magnet Setup:

Range:
Rate:

(5) Experiment Setup:

T
	1 MΩ
	6.05kO
	0
	1 MΩ
	μA
	μA
	0

(6) Lock-In Setup:

Sens:	20 μV
τ:	1s
Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

(7) Important Notes:

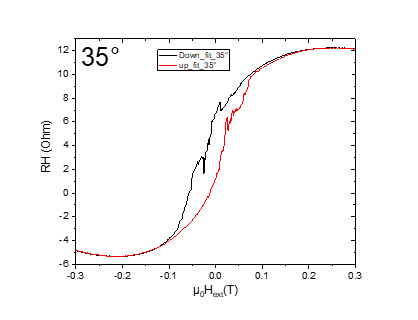

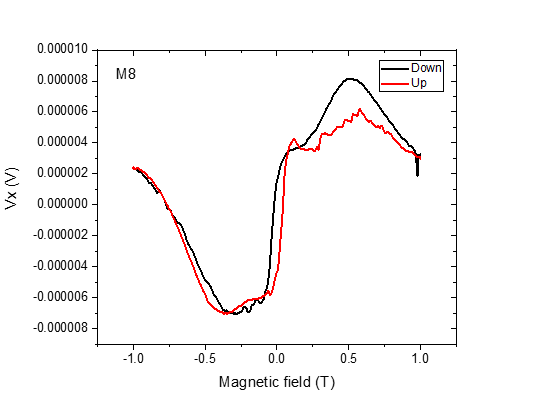

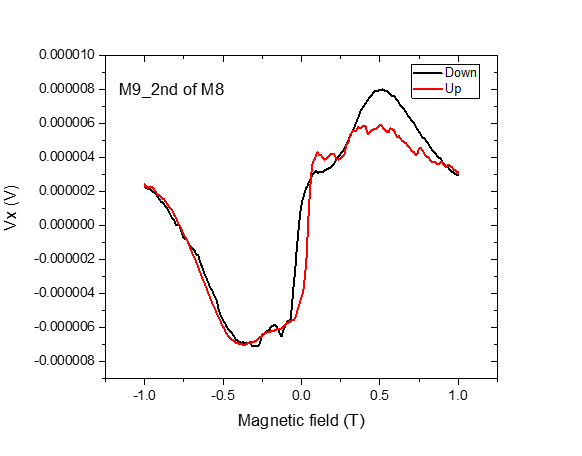

M9: Plusses_Hloop_2nd of M8_0deg2

07 March 2019

09:53

(1) Structures measured	Plusses
name structures-measured-4

(2) Measurement type	Hloop_gradiometry

(3) Cables Setup:

Gate (9)

(8) Filename and data:

<<2nd_20190307-1200-I1-1-13_I2-8-6_GBIP8-14-7_Vin-1V_R11-1MO_R12-6.05KO_R13-0_R21-1MO_C11-1_C21-6_T-30K_0deg_plusses_SR-0.15-T-min_B-1T_gate-0V_Gradio_up.dat>>

<<2nd_20190307-1200-I1-1-13_I2-8-6_GBIP8-14-7_Vin-1V_R11-1MO_R12-6.05KO_R13-0_R21-1MO_C11-1_C21-6_T-30K_0deg_plusses_SR-0.15-T-min_B-1T_gate-0V_Gradio_down.dat>>

(4) Magnet Setup:

Range:
Rate:

(5) Experiment Setup:

T
	1 MΩ
	6.05kO
	0
	1 MΩ
	μA
	μA
	0

(6) Lock-In Setup:

Sens:	20 μV
τ:	1s
Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

(7) Important Notes:

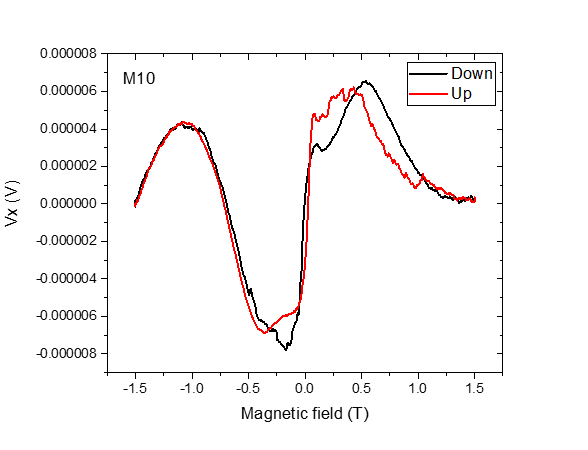

M10: Plusses_Hloop_0deg

07 March 2019

10:03

(1) Structures measured	Plusses
name structures-measured-5

(2) Measurement type	Hloop_gradiometry

(3) Cables Setup:

Gate (9)

(8) Filename and data:

<<20190307_1700_I1-1-13_I2-8-6_GBIP8-14-7_Vin-1V_R11-1MO_R12-6.25kO_R13-0_R21-1MO_C11-1_C21-6_T-30K_0deg_plusses_SR-0.1-T-min_B-1.5T_gate-0V_Gradio_Up.dat>>

<<20190307_1700_I1-1-13_I2-8-6_GBIP8-14-7_Vin-1V_R11-1MO_R12-6.25kO_R13-0_R21-1MO_C11-1_C21-6_T-30K_0deg_plusses_SR-0.1-T-min_B-1.5T_gate-0V_Gradio_down.dat>>

(4) Magnet Setup:

Range:
Rate:

(5) Experiment Setup:

T
	1 MΩ
	6.25kO
	0
	1 MΩ
	μA
	μA
	0

(6) Lock-In Setup:

Sens:	20 μV
τ:	1s
Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

(7) Important Notes:

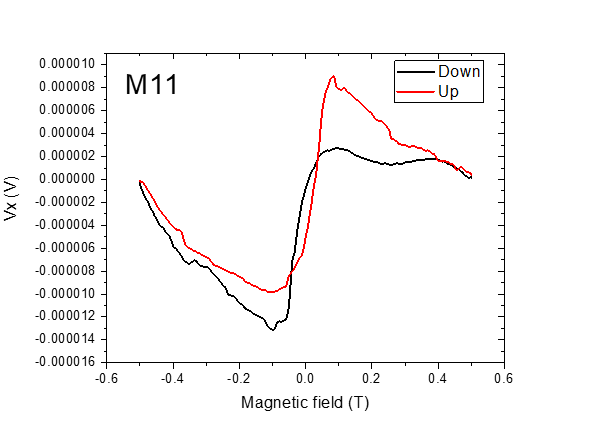

M11: Plusses_Hloop_0deg0

08 March 2019

08:00

(1) Structures measured	Plusses
name structures-measured-6

(2) Measurement type	Hloop_gradiometry

(3) Cables Setup:

Gate (9)

(8) Filename and data:

<<20190308_0800_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2V_R11-1MO_R12-8.9kO_R13-0_R21-1MO_C11-1_C21-6_T-30K_0deg_plusses_SR-0.1-T-min_B-0.5T_gate-0V_Gradio_up.dat>>

<<20190308_0800_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2V_R11-1MO_R12-8.9kO_R13-0_R21-1MO_C11-1_C21-6_T-30K_0deg_plusses_SR-0.1-T-min_B-0.5T_gate-0V_Gradio_down.dat>>

(4) Magnet Setup:

Range:
Rate:

(5) Experiment Setup:

T
	1 MΩ
	8.9kO
	0
	1 MΩ
	μA
	μA
	0

(6) Lock-In Setup:

Sens:	20 μV
τ:	1s
Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

(7) Important Notes:

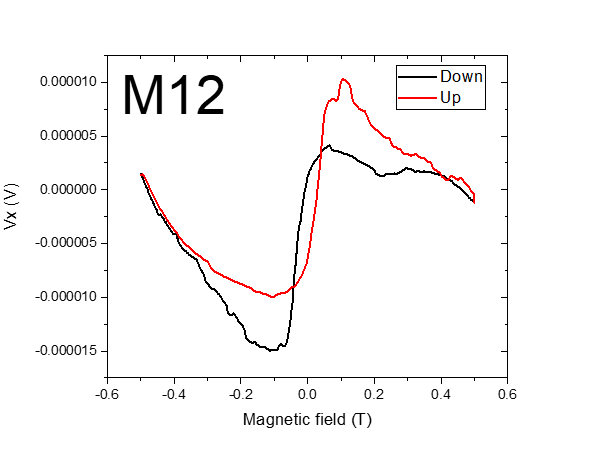

M12: Plusses_Hloop_0deg

08 March 2019

09:00

(1) Structures measured	Plusses
name structures-measured-7

(2) Measurement type	Hloop_gradiometry

(3) Cables Setup:

Gate (9)

(8) Filename and data:

<<20190308_0900_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-9kO_R13-0_R21-1MO_C11-1_C21-6_T-30K_0deg_plusses_SR-0.1-T-min_B-0.5T_gate-0V_Gradio_up.dat>>

<<20190308_0900_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-9kO_R13-0_R21-1MO_C11-1_C21-6_T-30K_0deg_plusses_SR-0.1-T-min_B-0.5T_gate-0V_Gradio_down.dat>>

(4) Magnet Setup:

Range:
Rate:

(5) Experiment Setup:

T
	1 MΩ
	8.9kO
	0
	1 MΩ
	μA
	μA
	0

(6) Lock-In Setup:

Sens:	20 μV
τ:	1s
Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

(7) Important Notes:

M13: Crosses_Hloop_0deg

08 March 2019

10:24

(1) Structures measured	Crosses
name structures-measured-8

(2) Measurement type	Hloop_gradiometry

(3) Cables Setup:

Gate (9)

(8) Filename and data:

<<20190308_1000_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-5.25kO_R13-0_R21-1MO_C11-1_C21-6_T-30K_0deg_Crosses_SR-0.1-T-min_B-0.5T_gate-0V_Gradio_up.dat>>

<<20190308_1000_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-5.25kO_R13-0_R21-1MO_C11-1_C21-6_T-30K_0deg_Crosses_SR-0.1-T-min_B-0.5T_gate-0V_Gradio_down.dat>>

(4) Magnet Setup:

Range:
Rate:

(5) Experiment Setup:

T
	1 MΩ
	5.25kO
	0
	1 MΩ
	μA
	μA
	0

(6) Lock-In Setup:

Sens:	20 μV
τ:	1s
Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

(7) Important Notes:

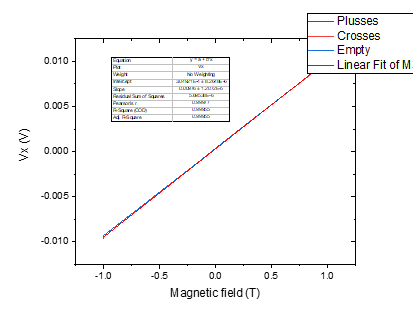

M14: Empty cross_Carrier concentration

08 March 2019

10:56

(1) Structures measured	Empty cross 6-8
name structures-measured-9

(2) Measurement type	Hall effect

(3) Cables Setup:

Gate (9)

(8) Filename and data:

(4) Magnet Setup:

Range:
Rate:

(5) Experiment Setup:

T
	1 MΩ
	0
	0
	1 MΩ
	μA
	μA
	0

(6) Lock-In Setup:

Sens:	20 μV
τ:	1s
Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

<<20190308_1030_I-14-7_GBIP8-8-6_Vin-2.5V_R11-1MO_sens50mV_gate0V_.dat>>

(7) Important Notes:

M15: Crosses_Hloop_0deg

08 March 2019

11:06

(1) Structures measured	Crosses
name structures-measured-10

(2) Measurement type	Hloop_gradiometry

(3) Cables Setup:

Gate (9)

(8) Filename and data:

<<20190308_1100_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-5.7kO_R13-0_R21-1MO_C11-1_C21-6_T-30K_0deg_Crosses_SR-0.1-T-min_B-0.7T_gate-9-5_Gradio_down.dat>>

<<20190308_1100_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-5.7kO_R13-0_R21-1MO_C11-1_C21-6_T-30K_0deg_Crosses_SR-0.1-T-min_B-0.7T_gate-9-5_Gradio_up.dat>>

(4) Magnet Setup:

Range:
Rate:

(5) Experiment Setup:

T
	1 MΩ
	5.7kO
	0
	1 MΩ
	μA
	μA
	0

(6) Lock-In Setup:

Sens:	20 μV
τ:	1s
Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

(7) Important Notes:

M16: ASI_Hloop_0deg

08 March 2019

11:11

(1) Structures measured	ASI_crossB
name structures-measured-11

(2) Measurement type	Hloop_gradiometry

(3) Cables Setup:

Gate (9)

(8) Filename and data

<<20190308_1100_I1-3-11_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-4.6kO_R13-0_R21-1MO_C11-1_C21-6_T-30K_0deg_ASI_cross B_SR-0.05-T-min_B-0.3T_gate-9-5_Gradio_up.dat>>

(4) Magnet Setup:

Range:
Rate:

(5) Experiment Setup:

T
	1 MΩ
	4.6kO
	0
	1 MΩ
	μA
	μA
	0

(6) Lock-In Setup:

Sens:	20 μV
τ:	1s
Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

(7) Important Notes:

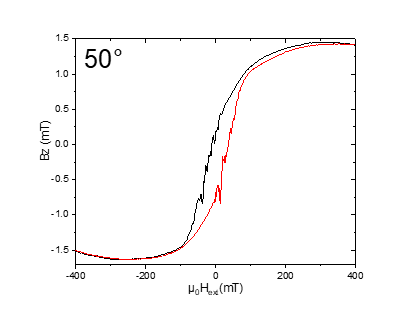

C: Changing angle 90deg (Parallel to the sensor plane)

10 March 2019

19:37

(1) Structures measured	Empty Cross
(2) Measurement type	Angle Changing
(3) Cables Setup:	+——- —–+————+————+ | |image 465| | 14 - 7 |   | +======= =====+============+============+ | |image 466| | |   | +——- —–+————+————+ | Gate ( 9) | | | +——- —–+————+————+
(4) Magnet Setup:	B = 1 T
(5) Experiment Setup:	T 1 MΩ 0
(6) Lock-In Setup:	Sens: 20 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:	Hall Voltage of empty cross @ 1 T before changing angle (old angle 45deg) is -7.826 mV instead of expected cos(45)*11.164 = 7.894
(8) Filename and data:	<<20190308_1600_I-14-7_GB8-1 -13_GB9-2-12_GB13-6-8_Vin-2.5V_R 11-1MO_C11-1_C21-6_T-30K_90degSe nsor_plus_cros_emp_SR-0.1-T-min_ B-1T_gate-0V_Parallel_down.dat>> <<20190308_1600_I-14-7_GB8 -1-13_GB9-2-12_GB13-6-8_Vin-2.5V _R11-1MO_C11-1_C21-6_T-30K_90deg Sensor_plus_cros_emp_SR-0.1-T-mi n_B-1T_gate-0V_Parallel_up.dat>>

Hall Voltage:

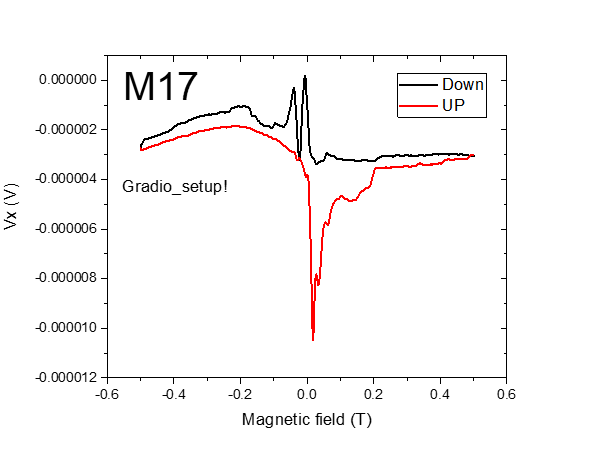

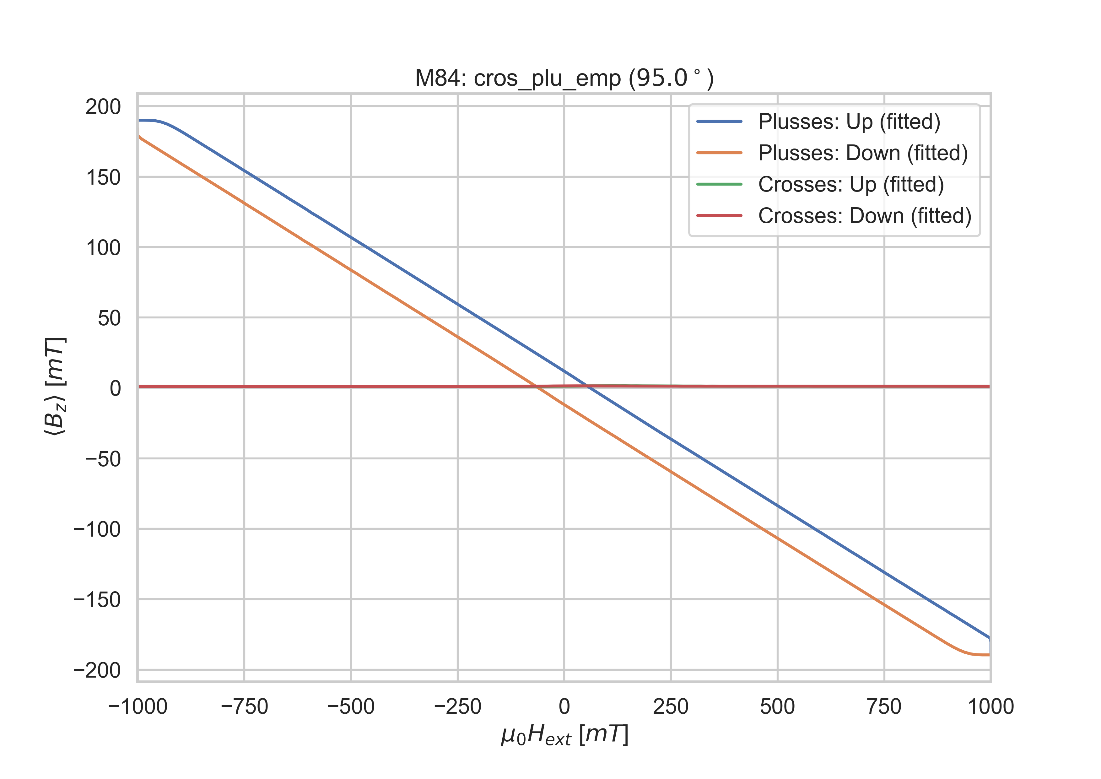

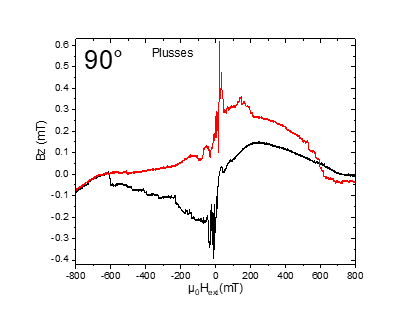

M17: Plusses_Hloop_90deg

11 March 2019

11:17

(1) Structures measured	Plusses
name structures-measured-13

(2) Measurement type	Hloop_Gradio_for fun

(3) Cables Setup:

Gate (9)

(8) Filename and data:

<<20190308_1500_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-0_R13-0_R21-1MO_C11-1_C21-6_T-30K_90degSensor_plusses_SR-0.1-T-min_B-0.5T_gate-0V_Gradio_down.dat>>

<<20190308_1500_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-0_R13-0_R21-1MO_C11-1_C21-6_T-30K_90degSensor_plusses_SR-0.1-T-min_B-0.5T_gate-0V_Gradio_Up.dat>>

(4) Magnet Setup:

Range:
Rate:

(5) Experiment Setup:

T
	1 MΩ
	0
	0
	1 MΩ
	μA
	μA
	90

(6) Lock-In Setup:

Sens:	20 μV
τ:	1s
Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

(7) Important Notes:

The gradio_setup is not usefull at 90deg_therofre, this measurment done for fun!!

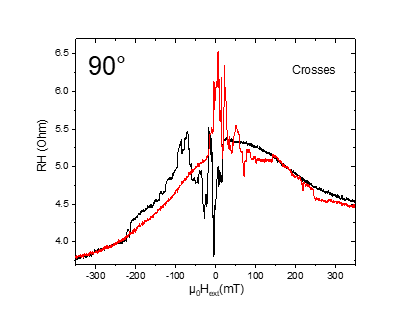

M18 and 18.1: Plusses_Crosses_empty_Hloop_90deg_2times

08 March 2019

11:27

(1) Structures measured	Plusses_Crosses_empty
name structures-measured-14

(2) Measurement type	Hloop_parallel

(3) Cables Setup:

VH (GB8)
VH(GB9)
VH(GB13)
Gate (9)

(8) Filename and data:

<<20190308_1600_I-14-7_GB8-1-13_GB9-2-12_GB13-6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_T-30K_90degSensor_plus_cros_emp_SR-0.1-T-min_B-1T_gate-0V_Parallel_down.dat>>

<<20190308_1600_I-14-7_GB8-1-13_GB9-2-12_GB13-6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_T-30K_90degSensor_plus_cros_emp_SR-0.1-T-min_B-1T_gate-0V_Parallel_up.dat>>

<<2nd_20190308_1500_I-14-7_GB8-1-13_GB9-2-12_GB13-6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_T-30K_90degSensor_plus_cros_emp_SR-0.1-T-min_B-1T_gate-0V_Parallel_down.dat>>

<<2nd_20190308_1500_I-14-7_GB8-1-13_GB9-2-12_GB13-6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_T-30K_90degSensor_plus_cros_emp_SR-0.1-T-min_B-1T_gate-0V_Parallel_up.dat>>

(4) Magnet Setup:

Range:
Rate:

(5) Experiment Setup:

T
	1 MΩ
	0
	0
	1 MΩ
	μA
	μA
	90

(6) Lock-In Setup:

Sens:	20 μV
τ:	1s
Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

(7) Important Notes:

M18.1 has same parameters of M8

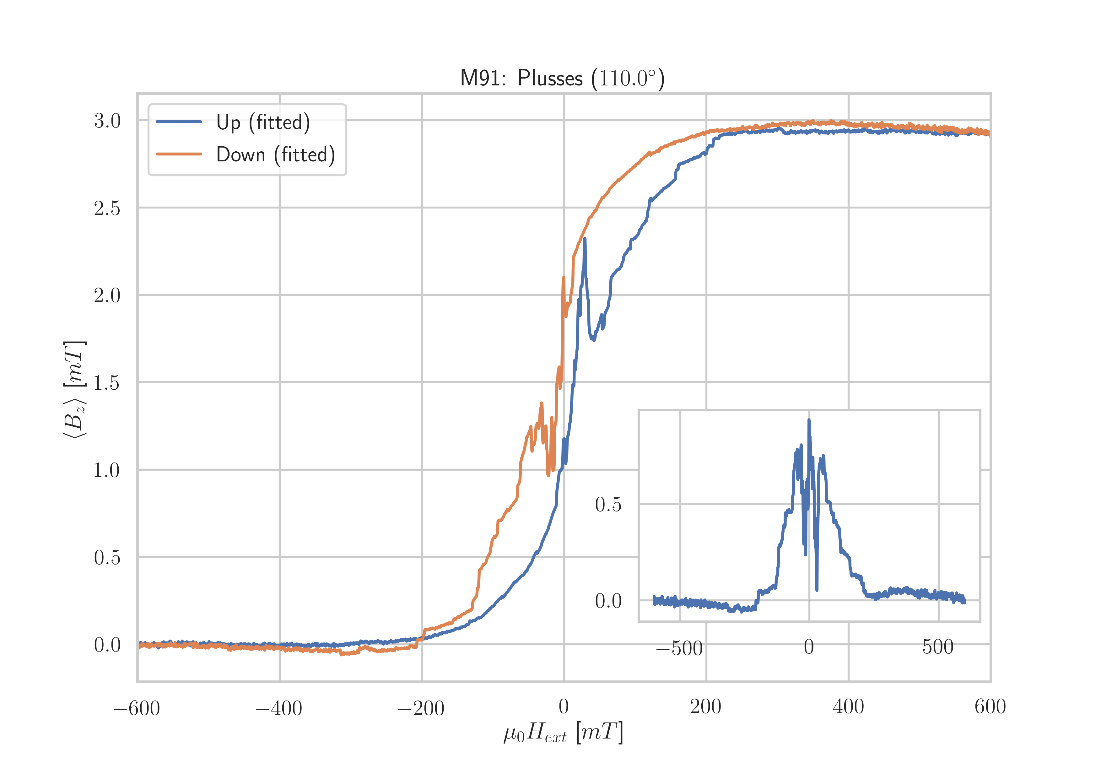

M19: Plusses_Crosses_empty_Hloop_90deg_15mT/min

09 March 2019

12:07

(1) Structures measured	Plusses_Crosses_empty
name structures-measured-15

(2) Measurement type	Hloop_parallel

(3) Cables Setup:

VH (GB8)
VH(GB9)
VH(GB13)
Gate (9)

(8) Filename and data:

<<20190309_1200_I-14-7_GB8-1-13_GB9-2-12_GB13-6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_T-30.9K_90degSensor_plus_cros_emp_SR-0.015-T-min_B-1.5T_gate-0V_Parallel_up.dat>>

<<20190309_1200_I-14-7_GB8-1-13_GB9-2-12_GB13-6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_T-30.9K_90degSensor_plus_cros_emp_SR-0.015-T-min_B-1.5T_gate-0V_Parallel_down.dat>>

(4) Magnet Setup:

Range:
Rate:

|Machine generated alternative text: 0100320 0000018 0000018 0000014 0000012 0000010 0 000308 o ooo:ne 0 000304 0 000302 0 000300 -0 000302 -0 000304 -o ooo:ne -0 000308 -0000010 M19 ug_l I_ug\_ 1 s -10 Check M 18 andM18.1 M agnetic field (T)|

(5) Experiment Setup:

T
	1 MΩ
	0
	0
	1 MΩ
	μA
	μA
	90

(6) Lock-In Setup:

Sens:	20 μV
τ:	1s
Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

(7) Important Notes:

_Very slow sweeping rate done during the weekend and at different days

C: Changing angle 45deg

10 March 2019

19:37

(1) Structures measured	Empty Cross
(2) Measurement type	Angle Changing
(3) Cables Setup:	+——- —–+————+————+ | |image 574| | 14 - 7 |   | +======= =====+============+============+ | |image 575| | |   | +——- —–+————+————+ | Gate ( 9) | | | +——- —–+————+————+
(4) Magnet Setup:	B = 1 T
(5) Experiment Setup:	T 1 MΩ 0
(6) Lock-In Setup:	Sens: 20mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:	Hall Voltage of empty cross @ 1 T before changing angle (old angle 45deg) is -7.826 mV instead of expected cos(45)*11.164 = 7.894
(8) Filename and data:	No File created

Hall Voltage:

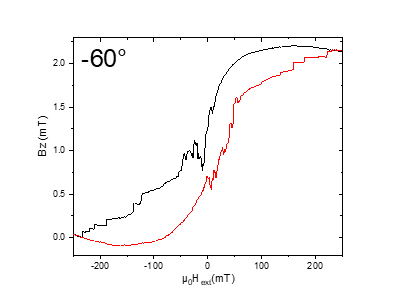

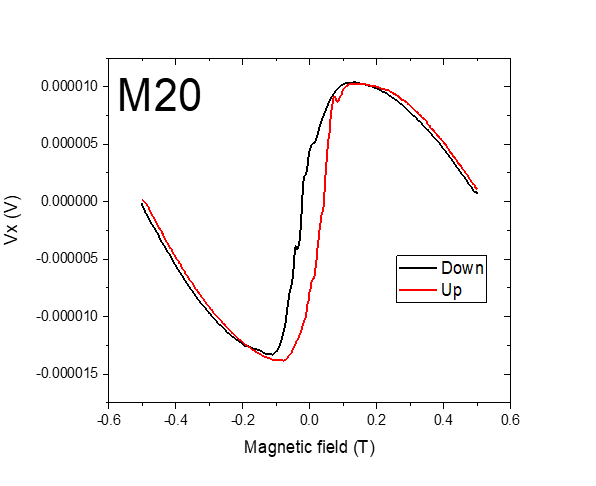

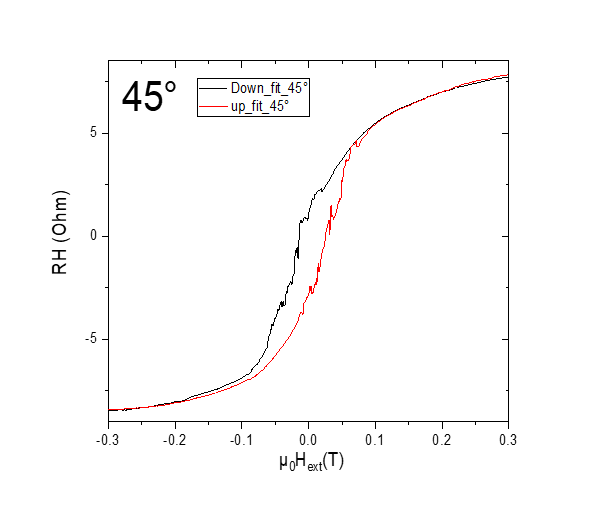

M20: Plusses_Hloop_45deg

10 March 2019

14:00

(1) Structures measured	Plusses
name structures-measured-17

(2) Measurement type	Hloop_gradiometry

(3) Cables Setup:

Gate (9)

(8) Filename and data:

<<20190310_1400_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-5.5_R13-0_R21-1MO_C11-1_C21-6_T-30K_45degSensor_plusses_SR-0.1-T-min_B-0.5T_gate-0V_Gradio_down.dat>>

<<20190310_1400_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-5.5_R13-0_R21-1MO_C11-1_C21-6_T-30K_45degSensor_plusses_SR-0.1-T-min_B-0.5T_gate-0V_Gradio_up.dat>>

(4) Magnet Setup:

Range:
Rate:

(5) Experiment Setup:

T
	1 MΩ
	5.5kO
	0
	1 MΩ
	μA
	μA
	45

(6) Lock-In Setup:

Sens:	20 μV
τ:	1s
Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

(7) Important Notes:

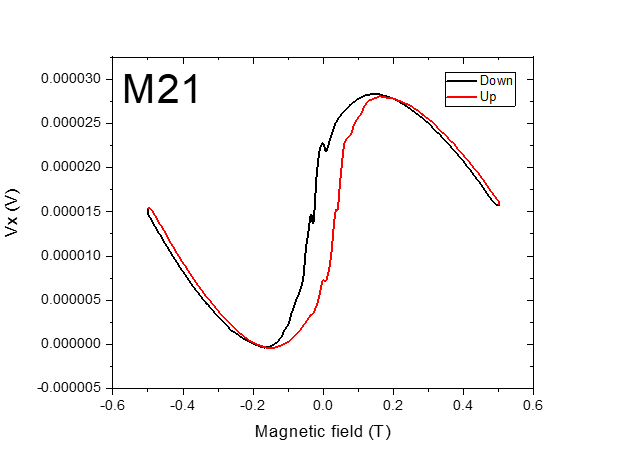

M21: Crosses_Hloop_45deg

11 March 2019

13:49

(1) Structures measured	Crosses
name structures-measured-18

(2) Measurement type	Hloop_gradiometry

(3) Cables Setup:

Gate (9)

(8) Filename and data:

<<20190310_1400_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-4.75_R13-0_R21-1MO_C11-1_C21-6_T-30K_45degSensor_Crosses_SR-0.1-T-min_B-0.5T_gate-0V_Gradio_up.dat>>

<<20190310_1400_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-4.75_R13-0_R21-1MO_C11-1_C21-6_T-30K_45degSensor_Crosses_SR-0.1-T-min_B-0.5T_gate-0V_Gradio_down.dat>>

(4) Magnet Setup:

Range:
Rate:

(5) Experiment Setup:

T
	1 MΩ
	4.75kO
	0
	1 MΩ
	μA
	μA
	45

(6) Lock-In Setup:

Sens:	20 μV
τ:	1s
Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

(7) Important Notes:

Fast sweeping

M22: Crosses_Hloop_45deg_8mT/min

11 March 2019

13:49

(1) Structures measured	Crosses
name structures-measured-19

(2) Measurement type	Hloop_gradiometry

(3) Cables Setup:

Gate (9)

(8) Filename and data:

<<20190311_0900_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-4.75_R13-0_R21-1MO_C11-1_C21-6_T-30K_45degSensor_Crosses_SR-0.008-T-min_B-0.5T_gate-0V_Gradio_up.dat>>

<<20190311_0900_I1-2-12_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-4.75_R13-0_R21-1MO_C11-1_C21-6_T-30K_45degSensor_Crosses_SR-0.008-T-min_B-0.5T_gate-0V_Gradio_down.dat>>

(4) Magnet Setup:

Range:
Rate:

(5) Experiment Setup:

T
	1 MΩ
	4.75kO
	0
	1 MΩ
	μA
	μA
	45

|— υρ_η \_u•|

(6) Lock-In Setup:

Sens:	20 μV
τ:	1s
Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

(7) Important Notes:

Very slow sweeping

M23: Plusses_Hloop_45deg_8mT/min

11 March 2019

14:27

(1) Structures measured	Plusses
name structures-measured-20

(2) Measurement type	Hloop_gradiometry

(8) Fil

<<20190311_1400_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-5.5kO_R13-0_R21-1MO_C11-1_C21-6_T-30K_45degSensor_Plusses_SR-0.008-T-min_B-0.5T_gate-0V_Gradio_up.dat>>

<<20190311_1400_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-5.5kO_R13-0_R21-1MO_C11-1_C21-6_T-30K_45degSensor_Plusses_SR-0.008-T-min_B-0.5T_gate-0V_Gradio_down.dat>>

ename and data:

(3) Cables Setup:

Gate (9)

(4) Magnet Setup:

Range:
Rate:

(5) Experiment Setup:

T
	1 MΩ
	5.5kO
	0
	1 MΩ
	μA
	μA
	45

(6) Lock-In Setup:

Sens:	20 μV
τ:	1s
Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

(7) Important Notes:

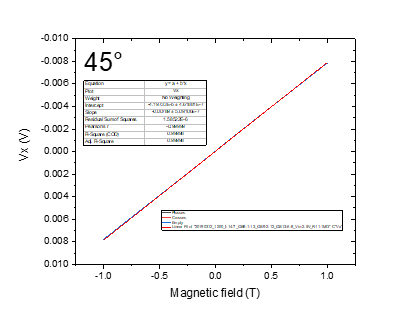

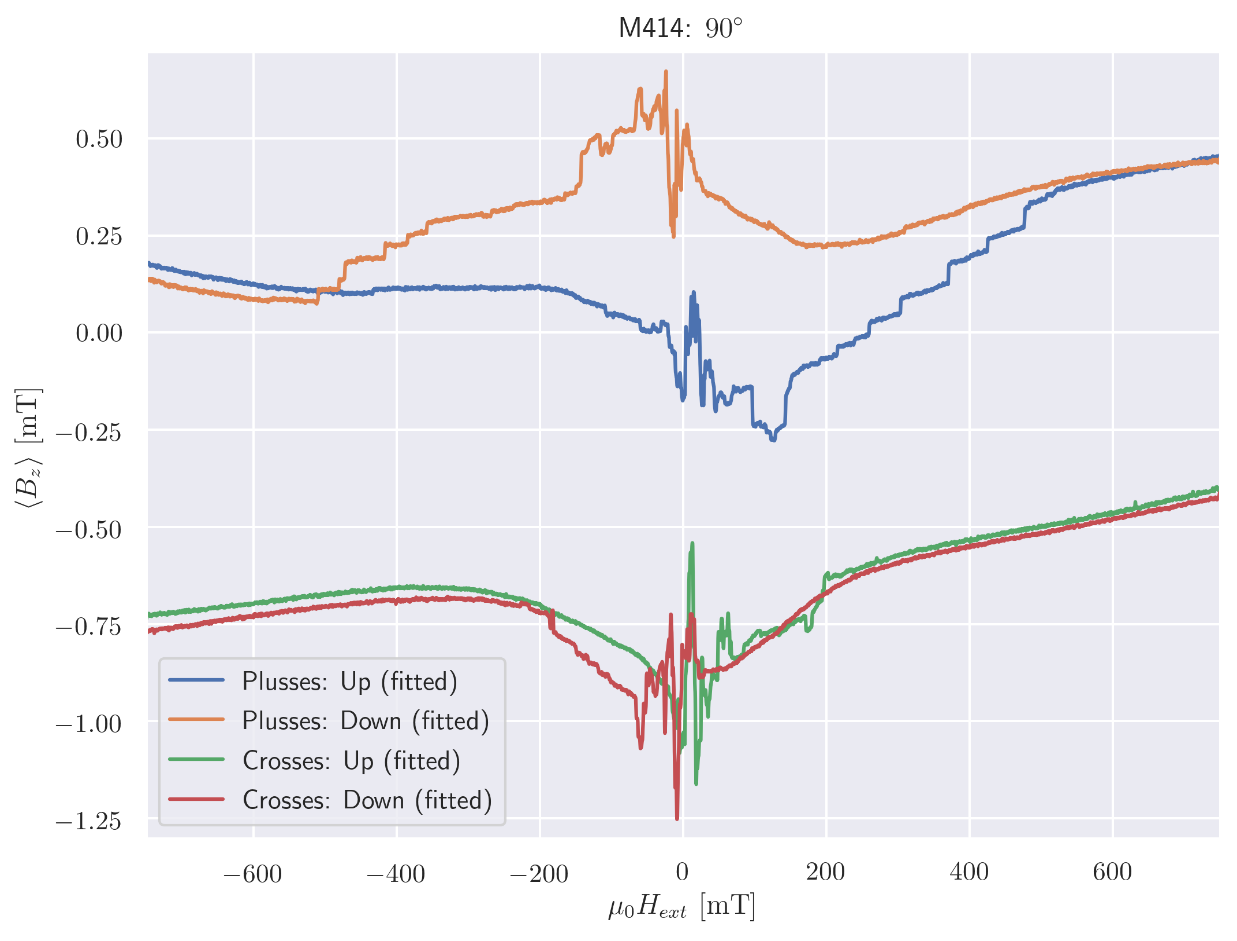

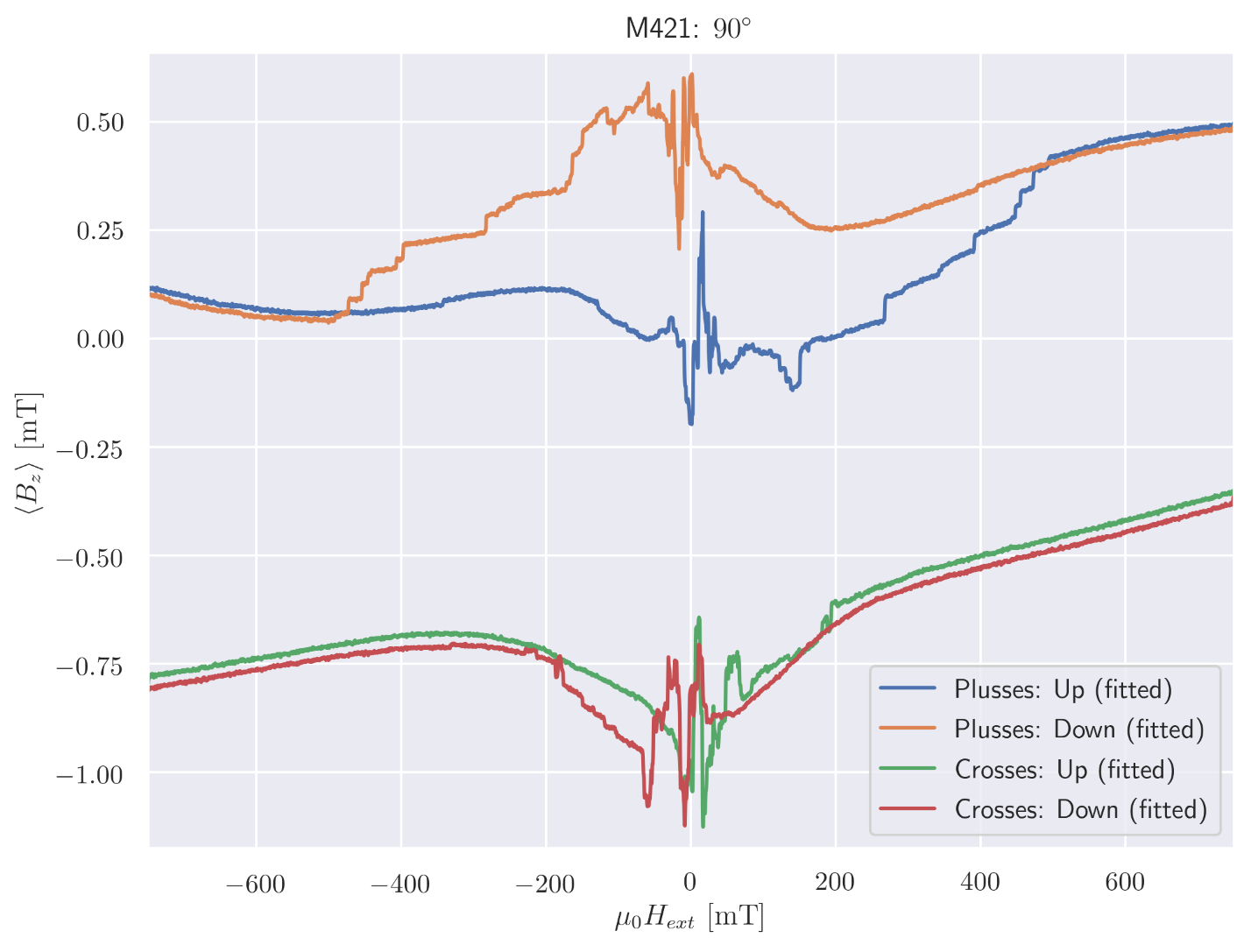

M24: 45deg All Crosses (±1T)_2 concentration

10 March 2019

19:37

(1) Structures measured	Plusses_Crosses_empty
(2) Measurement type	Hloop_parallel

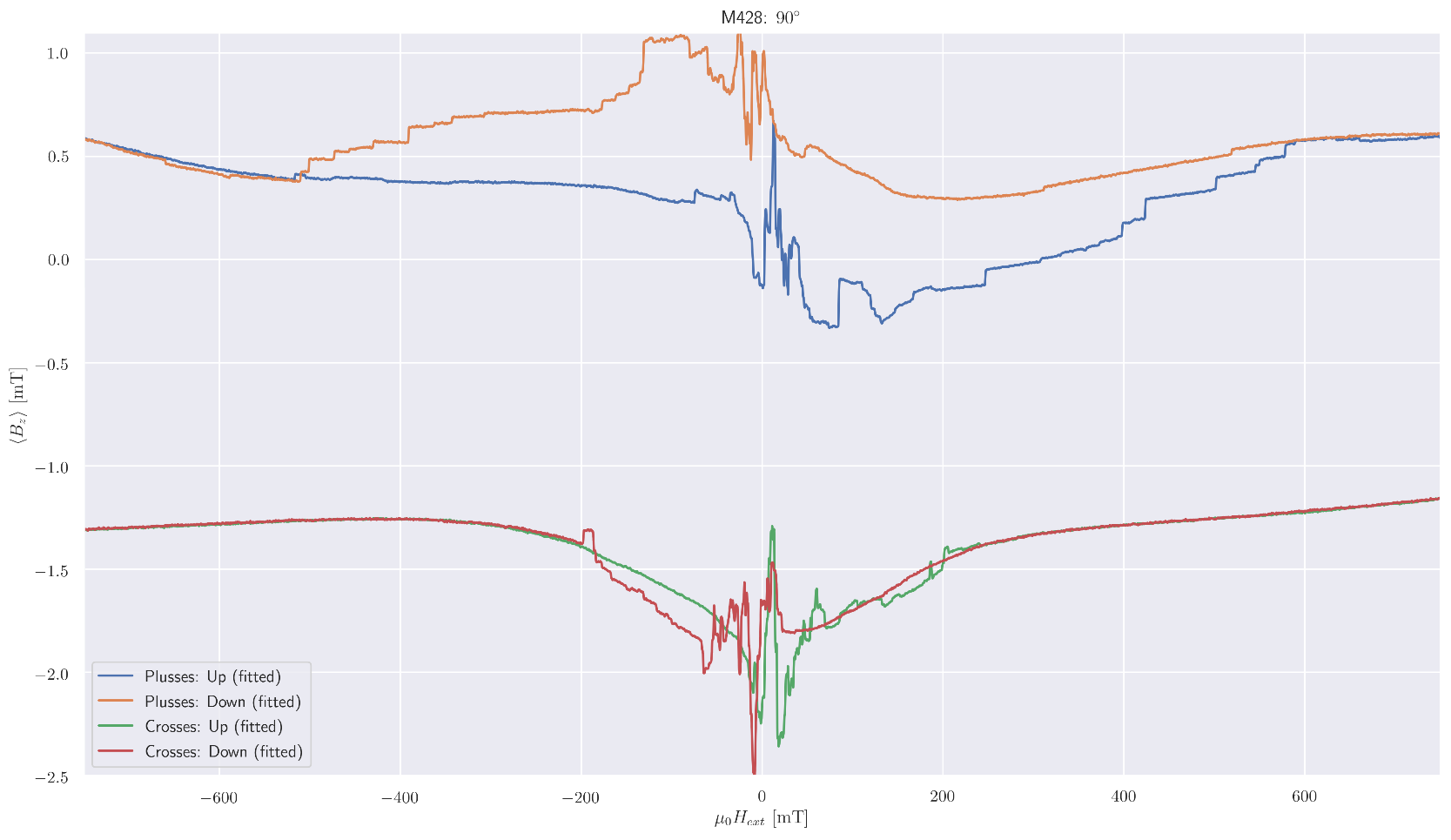

(3) Cables Setup:	+——- —–+————+————+ | |image 728| | |   | +======= =====+============+============+ | |image 730| | |   | +——- —–+————+————+ | |image 732| | |   | +——- —–+————+————+ | |image 734| | |   | +——- —–+————+————+ | Gate ( 9) | | | +——- —–+————+————+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 45
(6) Lock-In Setup:	Sens: 20 mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<20190312_1200_I-14-7_GB8 -1-13_GB9-2-12_GB13-6-8_Vin-2.5V _R11-1MO_C11-1_C21-6_T-30K_45deg Sensor_plus_cros_emp_SR-0.1-T-mi n_B-1T_gate-0V_Parallel_up.dat>> <<20190312_1200_I-14-7_GB8-1 -13_GB9-2-12_GB13-6-8_Vin-2.5V_R 11-1MO_C11-1_C21-6_T-30K_45degSe nsor_plus_cros_emp_SR-0.1-T-min_ B-1T_gate-0V_Parallel_down.dat>>

C: Changing angle 42.5deg

Dienstag, 12. März 2019

13:44

M25: Change Angle 42.5

12 March 2019

20:37

Aiming for Hall Voltage:

Voltage measured:

Voltage Measured next day before changing Angle again

8.286mV

(1) Structures measured	Empty Cross
(2) Measurement type	Angle Changing
(3) Cables Setup:	+——- —–+————+————+ | |image 772| | 14 - 7 |   | +======= =====+============+============+ | |image 773| | |   | +——- —–+————+————+ | Gate ( 9) | | | +——- —–+————+————+
(4) Magnet Setup:	B = 1 T
(5) Experiment Setup:	T 1 MΩ 42.5
(6) Lock-In Setup:	Sens: 20mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:	Hall Voltage of empty cross @ 1 T before changing angle (old angle 45deg) is -7.826 mV instead of expected cos(45)*11.164 = 7.894
(8) Filename and data:	No File created

Dienstag, 12. März 2019

12:19

(1) Structures measured	Plusses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	1-13 8-6 7 Gate (9)
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 9,5 kΩ 0 1 MΩ 42.5
(6) Lock-In Setup:	Sens: 20 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<20190312 _1500_I1-1-13_I2-8-6_GBIP8-14-7_ Vin-2.5V_R11-1MO_R12-9.5kO_R13-0 _R21-1MO_C11-1_C21-6_T-30K_42.5d egSensor_plusses_SR-0.008-T-min_ B-0.3T_gate-0V_Gradio_down.dat>> <<201903 12_1500_I1-1-13_I2-8-6_GBIP8-14- 7_Vin-2.5V_R11-1MO_R12-9.5kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_42. 5degSensor_plusses_SR-0.008-T-mi n_B-0.3T_gate-0V_Gradio_up.dat>>

R11 = 190/1000*50 = 9,5

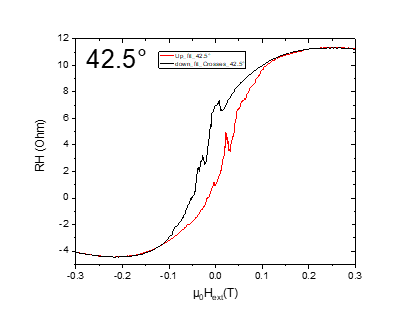

Dienstag, 12. März 2019

12:19

(1) Structures measured	Crosses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	2-12 8-6 7 Gate (9)
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 9 kΩ 0 1 MΩ 42.5
(6) Lock-In Setup:	Sens: 20 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:	Here we have used the routine. After finishing, the magnet did not go to the Zero!!!. I had to do that manually. We left the Temp at 30K over the night (He level 35.80in at 9pm)
(8) Filename and data:	<<201903 12_1800_I1-1-13_I2-8-6_GBIP8-14- 7_Vin-2.5V_R11-1MO_R12-9kO_R13-0 _R21-1MO_C11-1_C21-6_T-30K_42.5d egSensor_crosses_SR-0.008-T-min_ B-0.3T_gate-0V_Gradio_down.dat>> <<2019 0312_1800_I1-1-13_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-9kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_42. 5degSensor_crosses_SR-0.008-T-mi n_B-0.3T_gate-0V_Gradio_up.dat>>

R11 = 180/1000*50 = 9

To check:

The magnet did not go to zero. This might be the rate was set to value and magnetd did not respond unless there is rate set to tthe set point.

He(L) level next day after leaving the temp. At 30K and heater at 500mW. The heating range was 17.2%

He(l) level next day (8:14 am) was 34.55in at 30K and heater was 17.7%mW.

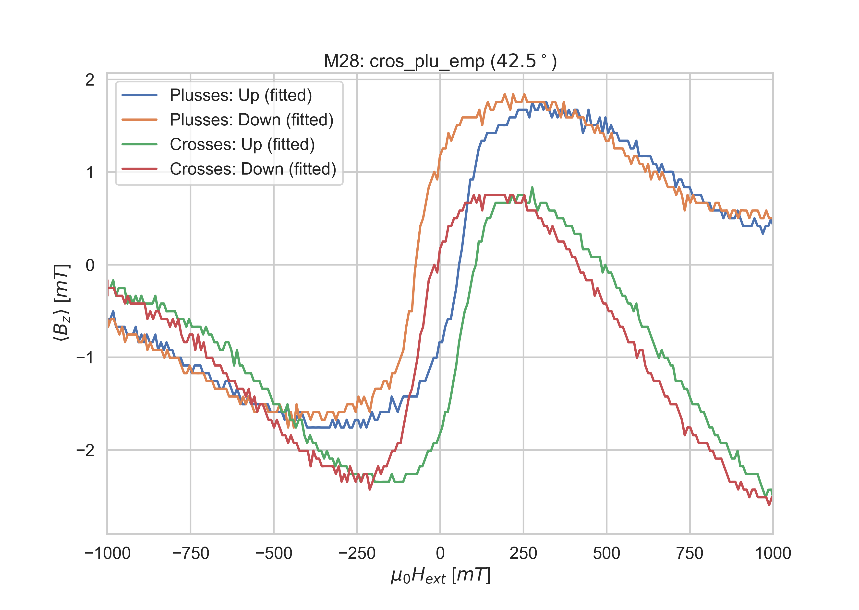

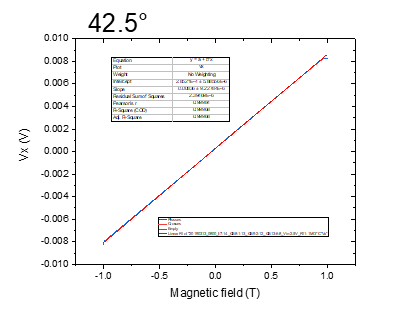

M28: 42.5 deg All Crosses (±1T)_Carrier concentration

10 March 2019

19:37

(1) Structures measured	Plusses_Crosses_empty
(2) Measurement type	Hloop_parallel
(3) Cables Setup:	+——- —–+————+————+ | |image 913| | | C | +======= =====+============+============+ | |image 915| | | D | +——- —–+————+————+ | |image 917| | |   | +——- —–+————+————+ | |image 919| | |   | +——- —–+————+————+ | Gate ( 9) | | | +——- —–+————+————+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 42.5
(6) Lock-In Setup:	Sens: 20 mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<20190313_0800_I-7-14_GB8-1-1 3_GB9-2-12_GB13-6-8_Vin-2.5V_R11 -1MO_C11-1_C21-6_T-30K_42.5degSe nsor_plus_cros_emp_SR-0.5-T-min_ B-1T_gate-0V_Parallel_down.dat>> <<20190313_0800_I-7-14_GB8-1 -13_GB9-2-12_GB13-6-8_Vin-2.5V_R 11-1MO_C11-1_C21-6_T-30K_42.5deg Sensor_plus_cros_emp_SR-0.5-T-mi n_B-1T_gate-0V_Parallel_up.dat>>

C: Changing angle 40deg

Dienstag, 12. März 2019

13:44

At 1T, 30k, 2.5V

Note: VH(42.5) next day before changing to new angle, was 8.286mV

Dienstag, 12. März 2019

12:19

(1) Structures measured	Plusses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	1-13 8-6 7 Gate (9)
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 9,5 kΩ 0 1 MΩ 40
(6) Lock-In Setup:	Sens: 20 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<2019 0313_0800_I1-1-13_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-9.5kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_4 0degSensor_plusses_SR-0.008-T-mi n_B-0.3T_gate-0V_Gradio_up.dat>> <<201903 13_0800_I1-1-13_I2-8-6_GBIP8-14- 7_Vin-2.5V_R11-1MO_R12-9.5kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_40d egSensor_plusses_SR-0.008-T-min_ B-0.3T_gate-0V_Gradio_down.dat>>

R11 = 190/1000*50 = 9,5

Dienstag, 12. März 2019

12:19

(1) Structures measured	Crosses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	2-12 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 8.7 kΩ 0 1 MΩ 40
(6) Lock-In Setup:	Sens: 20 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<2019 0313_1100_I1-2-12_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-8.7kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_4 0degSensor_Crosses_SR-0.008-T-mi n_B-0.3T_gate-0V_Gradio_up.dat>> <<201903 13_1100_I1-2-12_I2-8-6_GBIP8-14- 7_Vin-2.5V_R11-1MO_R12-8.7kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_40d egSensor_Crosses_SR-0.008-T-min_ B-0.3T_gate-0V_Gradio_down.dat>>

R11 = 174/1000*50 = 8,7 kO

M31: 40 deg All Crosses (±1T)_Carrier concentration

10 March 2019

19:37

(1) Structures measured	Plusses_Crosses_empty
(2) Measurement type	Hloop_parallel
(3) Cables Setup:	|imag e1075| |imag e1076| C |imag e1077| |imag e1078| D |imag e1079| |imag e1080| |imag e1081| |imag e1082| Gate (9) |imag e1083| |imag e1084|
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 40
(6) Lock-In Setup:	Sens: 20 mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<20190313_1400_I-7-14_GB8-1 -13_GB9-2-12_GB13-6-8_Vin-2.5V_R 11-1MO_C11-1_C21-6_T-30K_40degSe nsor_plus_cros_emp_SR-0.5-T-min_ B-1T_gate-0V_Parallel_down.dat>> <<20190313_1400_I-7-14_GB8 -1-13_GB9-2-12_GB13-6-8_Vin-2.5V _R11-1MO_C11-1_C21-6_T-30K_40deg Sensor_plus_cros_emp_SR-0.5-T-mi n_B-1T_gate-0V_Parallel_up.dat>>

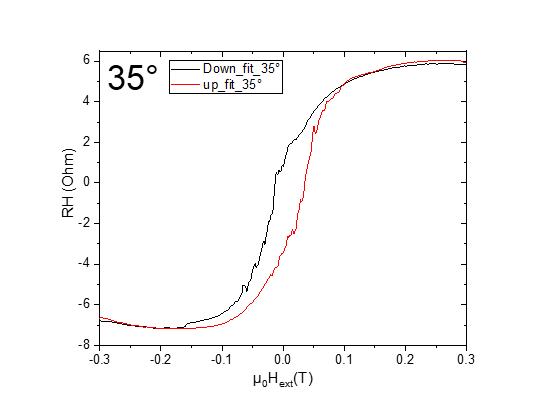

C: Changing angle 35

12 March 2019

20:37

Aiming for Hall Voltage:

Voltage measured:

(1) Structures measured	Empty Cross
(2) Measurement type	Angle Changing
(3) Cables Setup:	|imag e1124| 14 - 7 |imag e1125| |imag e1126| Gate (9) |imag e1127| |imag e1128|
(4) Magnet Setup:	B = 1 T
(5) Experiment Setup:	T 1 MΩ 35
(6) Lock-In Setup:	Sens: 20mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:	Voltage before changinig angle: 8,632 mV
(8) Filename and data:	No File created

Dienstag, 12. März 2019

12:19

(1) Structures measured	Plusses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	1-13 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 9,15 kΩ 0 1 MΩ 35
(6) Lock-In Setup:	Sens: 20 μV τ: 3s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:	Changed the Time Constant to 3s and readout every 3s to increase sensitivity
(8) Filename and data:	<<20190 313_1500_I1-1-13_I2-8-6_GBIP8-14 -7_Vin-2.5V_R11-1MO_R12-9.15kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_3 5degSensor_plusses_SR-0.008-T-mi n_B-0.3T_gate-0V_Gradio_up.dat>> <<2019031 3_1500_I1-1-13_I2-8-6_GBIP8-14-7 _Vin-2.5V_R11-1MO_R12-9.15kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_35d egSensor_plusses_SR-0.008-T-min_ B-0.3T_gate-0V_Gradio_down.dat>>

R11 = 183/1000*50 = 9,15

Dienstag, 12. März 2019

12:19

(1) Structures measured	Crosses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	2-12 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 8.7 kΩ 0 1 MΩ 35
(6) Lock-In Setup:	Sens: 20 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:	He (l) level at 21:32, was 32.58in at 17.5% 500mW, 30K heater. Check it out next day to see how much He(l) will be consumed if the heater left on to stabalize the temperature. Checked next day at 7:53 am, He(l) level was 31.44in
(8) Filename and data:	<<20190 313_1730_I1-1-13_I2-8-6_GBIP8-14 -7_Vin-2.5V_R11-1MO_R12-5kO_R13- 0_R21-1MO_C11-1_C21-6_T-30K_35de gSensor_crosses_SR-0.008-T-min_B -0.3T_gate-0V_Gradio_down_.dat>>

R11 = 174/1000*50 = 8,7 kO

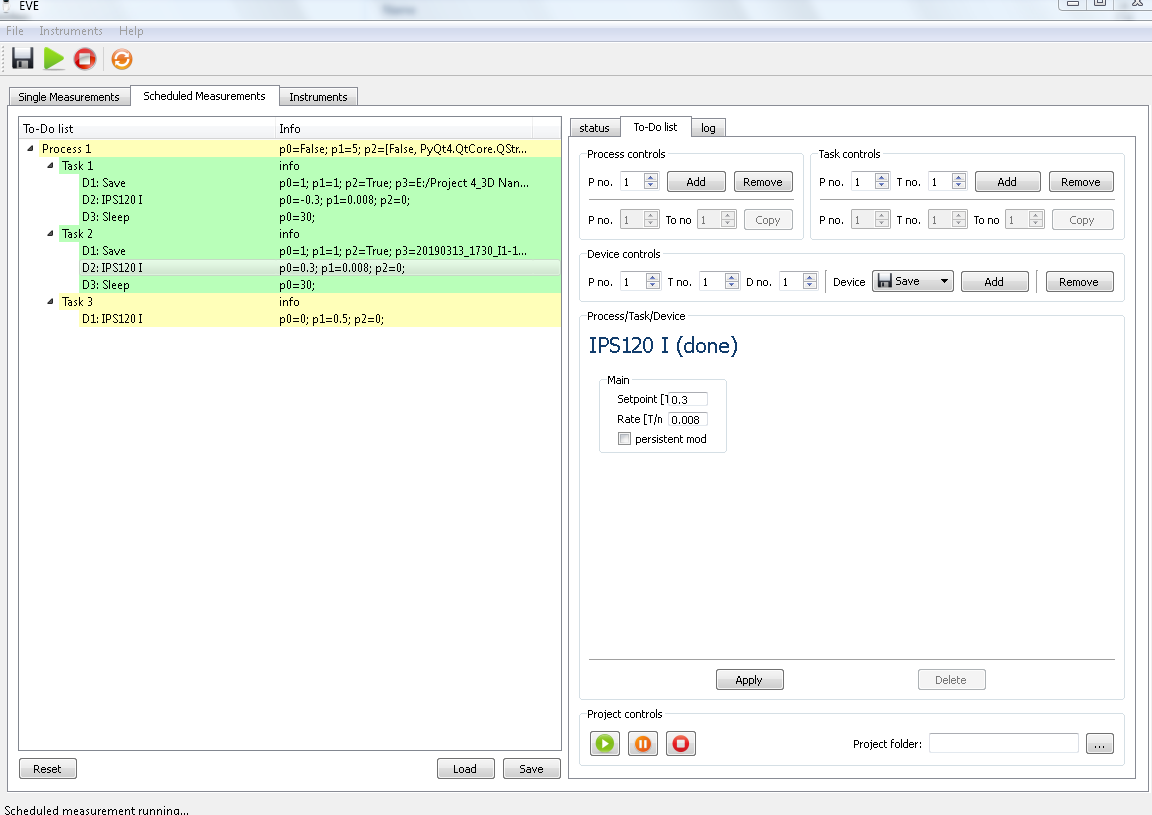

To check_

I founf the magnet at 0T and EVE saved only one file for up and down sweeps, the heater was on. Fix: Checking persistend mode

From the curve , there was overload, the sensitivity has to be set to 50µV.

Fix: Checking the sensitivity with fast sweep after balancing Gradiomery

I found the up sweep file saved at another directory of EVEui !. So, double check is realy important.

No Fix: Happens when only a Filename is given without a path to save.

We have to repeat the mesurements.

Donnerstag, 14. März 2019

08:00

(1) Structures measured	Crosses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	2-12 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 8.7 kΩ 0 1 MΩ 35
(6) Lock-In Setup:	Sens: 20 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<M34_Crosses _35deg_Hloop_down__Gradio_201903 14_0800_I1-2-12_I2-8-6_GBIP8-14- 7_Vin-2.5V_R11-1MO_R12-8.7kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.3T_gate-0V.dat>> <<M34_Cross es_35deg_Hloop_up__Gradio_201903 14_0800_I1-2-12_I2-8-6_GBIP8-14- 7_Vin-2.5V_R11-1MO_R12-8.7kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.3T_gate-0V.dat>>

R11 = 174/1000*50 = 8,7 kO

M35: 35deg All Crosses (±1T)_Carrier concentration

10 March 2019

19:37

(1) Structures measured	Plusses_Crosses_empty
(2) Measurement type	Hloop_parallel
(3) Cables Setup:	|imag e1330| |imag e1331| C |imag e1332| |imag e1333| D |imag e1334| |imag e1335| |imag e1336| |imag e1337| Gate (9) |imag e1338| |imag e1339|
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 35
(6) Lock-In Setup:	Sens: 20 mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:	All 3 Lock Ins have been initialized with GPIB 8.
(8) Filename and data:	<<M35_cros_plu_emp_35_Hloop_d own_Parallel_20190314_1000_I-7-1 4_GB8-1-13_GB9-2-12_GB13-6-8_Vin -2.5V_R11-1MO_C11-1_C21-6_T-30K_ SR-0.5-T-min_B-1T_gate-0V_.dat>> <<M35_cros_plu_emp_35_Hloop _up_Parallel_20190314_1000_I-7-1 4_GB8-1-13_GB9-2-12_GB13-6-8_Vin -2.5V_R11-1MO_C11-1_C21-6_T-30K_ SR-0.5-T-min_B-1T_gate-0V_.dat>>

|Machine generated alternative text: 0010 0105 omo -0105 -0010 0.00942\_ 1.1603685 M agnetic field (T)|

C: Changing angle 30

12 March 2019

20:37

Aiming for Hall Voltage:

Voltage measured:

(1) Structures measured	Empty Cross
(2) Measurement type	Angle Changing
(3) Cables Setup:	|imag e1379| 14 - 7 |imag e1380| |imag e1381| Gate (9) |imag e1382| |imag e1383|
(4) Magnet Setup:	B = 1 T
(5) Experiment Setup:	T 1 MΩ 30
(6) Lock-In Setup:	Sens: 20mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:	Voltage before changinig angle: 9,321 mV
(8) Filename and data:	No File created

Dienstag, 12. März 2019

12:19

(1) Structures measured	Plusses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	1-13 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 8,75 kΩ 0 1 MΩ 30
(6) Lock-In Setup:	Sens: 20 μV τ: 3s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<M36_Plusses_ 30deg_Hloop_down__Gradio_2019031 4_1100_I1-2-12_I2-8-6_GBIP8-14-7 _Vin-2.5V_R11-1MO_R12-8.75kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.3T_gate-0V.dat>> <<M36_Plusse s_30deg_Hloop_up__Gradio_2019031 4_1100_I1-2-12_I2-8-6_GBIP8-14-7 _Vin-2.5V_R11-1MO_R12-8.75kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.3T_gate-0V.dat>>

R11 = 175/1000*50 = 8,75

Donnerstag, 14. März 2019

08:00

(1) Structures measured	Crosses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	2-12 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 7,75 kΩ 0 1 MΩ 30
(6) Lock-In Setup:	Sens: 20 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<M37_Crosses _30deg_Hloop_down_Gradio_2019031 4_1100_I1-2-12_I2-8-6_GBIP8-14-7 _Vin-2.5V_R11-1MO_R12-7.75kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.3T_gate-0V.dat>> <<M37_Cross es_30deg_Hloop_up_Gradio_2019031 4_1100_I1-2-12_I2-8-6_GBIP8-14-7 _Vin-2.5V_R11-1MO_R12-7.75kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.3T_gate-0V.dat>>

R11 = 155/1000*50 = 7,75 kO

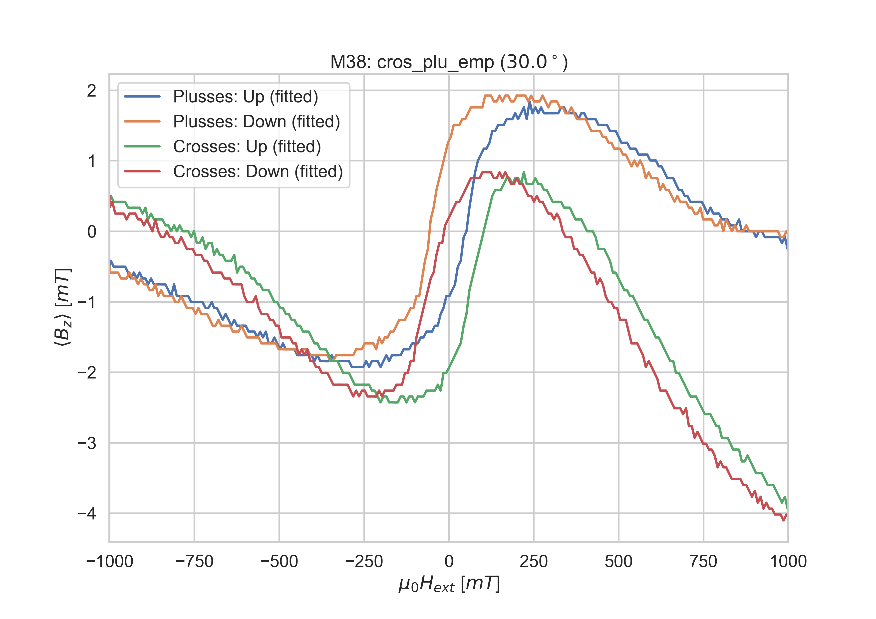

M38: 30deg All Crosses (±1T)_Carrier concentration

Donnerstag, 14. März 2019

17:02

(1) Structures measured	Plusses_Crosses_empty
(2) Measurement type	Hloop_parallel
(3) Cables Setup:	|imag e1539| |imag e1540| C |imag e1541| |imag e1542| D |imag e1543| |imag e1544| |imag e1545| |imag e1546| Gate (9) |imag e1547| |imag e1548|
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 30
(6) Lock-In Setup:	Sens: 20 mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<M38_cros_plu_emp_35_Hloop_d own_Parallel_20190314_1700_I-7-1 4_GB8-1-13_GB9-2-12_GB13-6-8_Vin -2.5V_R11-1MO_C11-1_C21-6_T-30K_ SR-0.5-T-min_B-1T_gate-0V_.dat>> <<M38_cros_plu_emp_35_Hloop _up_Parallel_20190314_1700_I-7-1 4_GB8-1-13_GB9-2-12_GB13-6-8_Vin -2.5V_R11-1MO_C11-1_C21-6_T-30K_ SR-0.5-T-min_B-1T_gate-0V_.dat>>

C: Changing angle 25

12 March 2019

20:37

Aiming for Hall Voltage:

Voltage measured:

(1) Structures measured	Empty Cross
(2) Measurement type	Angle Changing
(3) Cables Setup:	|imag e1589| 14 - 7 |imag e1590| |imag e1591| Gate (9) |imag e1592| |imag e1593|
(4) Magnet Setup:	B = 1 T
(5) Experiment Setup:	T 1 MΩ 25
(6) Lock-In Setup:	Sens: 20mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:	Voltage before changinig angle: 9,642 mV
(8) Filename and data:	No File created

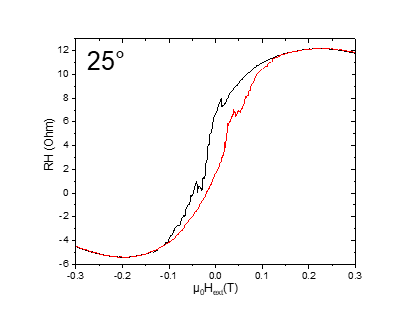

Freitag, 15. März 2019

08:00

(1) Structures measured	Plusses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	1-13 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 8,75 kΩ 0 1 MΩ 25
(6) Lock-In Setup:	Sens: 50 μV τ: 3s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<M39_Plusse s_25deg_Hloop_up__Gradio_2019031 5_0800_I1-2-12_I2-8-6_GBIP8-14-7 _Vin-2.5V_R11-1MO_R12-8.75kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.3T_gate-0V.dat>> <<M39_Plusses_ 25deg_Hloop_down__Gradio_2019031 5_0800_I1-2-12_I2-8-6_GBIP8-14-7 _Vin-2.5V_R11-1MO_R12-8.75kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.3T_gate-0V.dat>>

R11 = 172/1000*50 = 8,6 kO

Freitag, 15. März 2019

08:00

(1) Structures measured	Crosses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	2-12 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 4.5 kΩ 0 1 MΩ 25
(6) Lock-In Setup:	Sens: 20 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<M40_Cros ses_25deg_Hloop_up_Gradio_201903 15_1100_I1-2-12_I2-8-6_GBIP8-14- 7_Vin-2.5V_R11-1MO_R12-4.5kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.3T_gate-0V.dat>> <<M40_Crosse s_25deg_Hloop_down_Gradio_201903 15_1100_I1-2-12_I2-8-6_GBIP8-14- 7_Vin-2.5V_R11-1MO_R12-4.5kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.3T_gate-0V.dat>>

R11 = 90/1000*50 = 4,5 kO

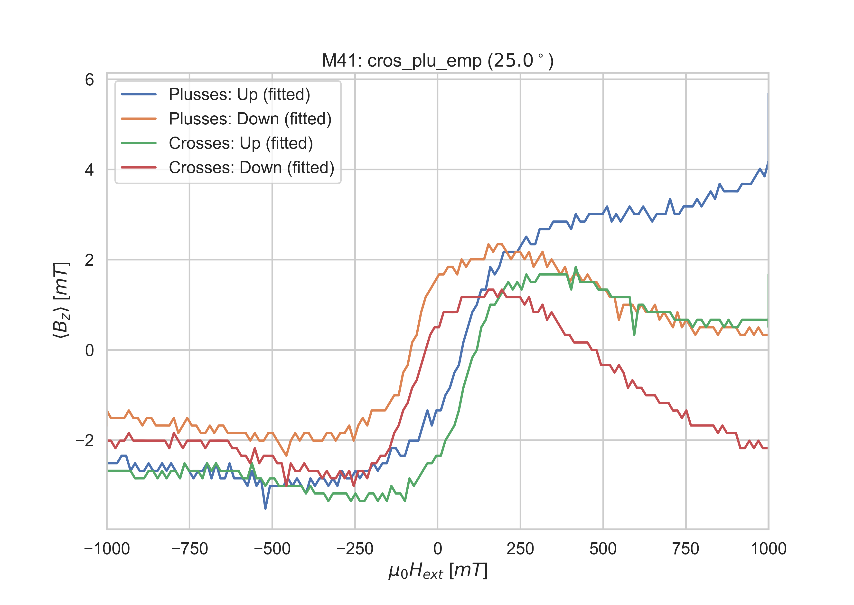

M41: 25deg All Crosses (±1T)_Carrier concentration

Freitag, 15. März 2019

14:10

(1) Structures measured	Plusses_Crosses_empty
(2) Measurement type	Hloop_parallel
(3) Cables Setup:	|imag e1749| |imag e1750| C |imag e1751| |imag e1752| D |imag e1753| |imag e1754| |imag e1755| |imag e1756| Gate (9) |imag e1757| |imag e1758|
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 25
(6) Lock-In Setup:	Sens: 20 mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<M41_cros_plu_emp_25deg_Hloop_d own_Parallel_20190314_1700_I-7-1 4_GB8-1-13_GB9-2-12_GB13-6-8_Vin -2.5V_R11-1MO_C11-1_C21-6_T-30K_ SR-0.5-T-min_B-1T_gate-0V_.dat>> <<M41_cros_plu_emp_25deg_Hloop _up_Parallel_20190315_1400_I-7-1 4_GB8-1-13_GB9-2-12_GB13-6-8_Vin -2.5V_R11-1MO_C11-1_C21-6_T-30K_ SR-0.5-T-min_B-1T_gate-0V_.dat>>

C: Changing angle 20

12 March 2019

20:37

(1) Structures measured	Empty Cross
(2) Measurement type	Angle Changing
(3) Cables Setup:	|imag e1797| 14 - 7 |imag e1798| |imag e1799| Gate (9) |imag e1800| |imag e1801|
(4) Magnet Setup:	B = 1 T
(5) Experiment Setup:	T 1 MΩ 20
(6) Lock-In Setup:	Sens: 20mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:	Voltage before changinig angle: 10,107 mV
(8) Filename and data:	No File created

Aiming for Hall Voltage:

Voltage measured:

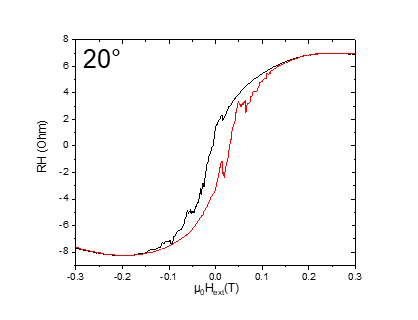

Freitag, 15. März 2019

14:30

(1) Structures measured	Plusses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	1-13 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 8,75 kΩ 0 1 MΩ 20 1 6
(6) Lock-In Setup:	Sens: 50 μV τ: 3s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<M42_Plusses_ 20deg_Hloop_down__Gradio_2019031 5_1400_I1-2-12_I2-8-6_GBIP8-14-7 _Vin-2.5V_R11-1MO_R12-8.75kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.3T_gate-0V.dat>> <<M42_Plusse s_20deg_Hloop_up__Gradio_2019031 5_1400_I1-2-12_I2-8-6_GBIP8-14-7 _Vin-2.5V_R11-1MO_R12-8.75kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.3T_gate-0V.dat>>

R11 = 175/1000*50 = 8,75

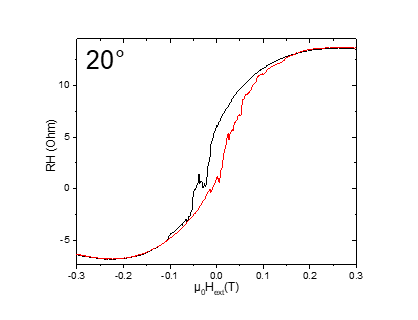

Freitag, 15. März 2019

17:27

(1) Structures measured	Crosses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	2-12 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 7 kΩ 0 1 MΩ 20
(6) Lock-In Setup:	Sens: 50 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:	The routine worked fine. Go to zero option of the magnet worked fine. The measurment finished without any problems.
(8) Filename and data:	<<M43_Cros ses_20deg_Hloop_down_Gradio_2019 0315_1800_I1-2-12_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-7kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.3T_gate-0V.dat>> <<M43_Cr osses_20deg_Hloop_up_Gradio_2019 0315_1800_I1-2-12_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-7kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.3T_gate-0V.dat>>

R11 = 140/1000*50 = 7,0

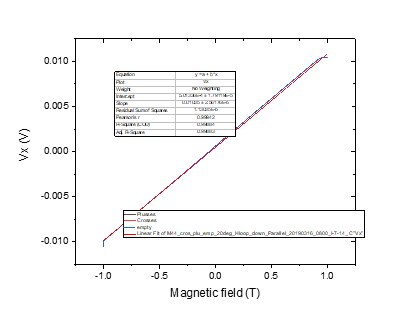

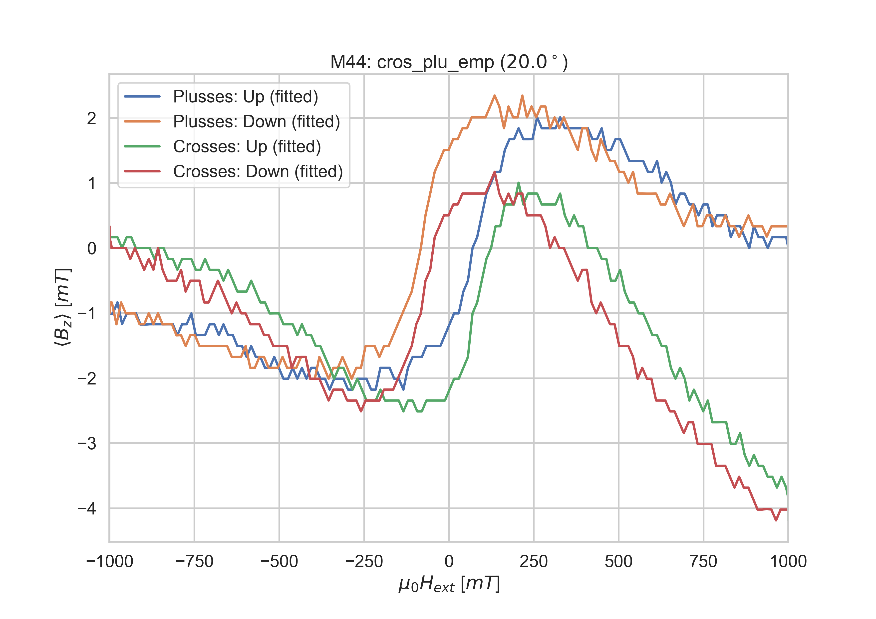

M44: 20deg All Crosses (±1T)_Carrier concentration

Sonntag, 17. März 2019

08:29

(1) Structures measured	Plusses_Crosses_empty
(2) Measurement type	Hloop_parallel
(3) Cables Setup:	|imag e1959| |imag e1960| C |imag e1961| |imag e1962| D |imag e1963| |imag e1964| |imag e1965| |imag e1966| Gate (9) |imag e1967| |imag e1968|
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 20
(6) Lock-In Setup:	Sens: 20 mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<M44_cros_plu_emp_20deg_Hloop _up_Parallel_20190316_0800_I-7-1 4_GB8-1-13_GB9-2-12_GB13-6-8_Vin -2.5V_R11-1MO_C11-1_C21-6_T-30K_ SR-0.5-T-min_B-1T_gate-0V_.dat>> <<M44_cros_plu_emp_20deg_Hloop_d own_Parallel_20190316_0800_I-7-1 4_GB8-1-13_GB9-2-12_GB13-6-8_Vin -2.5V_R11-1MO_C11-1_C21-6_T-30K_ SR-0.5-T-min_B-1T_gate-0V_.dat>>

C: Changing angle 15

Samstag, 16. März 2019

08:40

(1) Structures measured	Empty Cross
(2) Measurement type	Angle Changing
(3) Cables Setup:	|imag e2007| 14 - 7 |imag e2008| |imag e2009| Gate (9) |imag e2010| |imag e2011|
(4) Magnet Setup:	B = 1 T
(5) Experiment Setup:	T 1 MΩ 15
(6) Lock-In Setup:	Sens: 20mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:	Voltage before changinig angle:10,483 mV
(8) Filename and data:	No File created

Aiming for Hall Voltage:

Cos(90)=0

Voltage measured:

Samstag, 16. März 2019

08:57

(1) Structures measured	Plusses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	1-13 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 8,5 kΩ 0 1 MΩ 15 1 6
(6) Lock-In Setup:	Sens: 50 μV τ: 3s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<M45_Pluss es_15deg_Hloop_up__Gradio_201903 16_0800_I1-2-12_I2-8-6_GBIP8-14- 7_Vin-2.5V_R11-1MO_R12-8.5kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.3T_gate-0V.dat>> <<M45_Plusses _15deg_Hloop_down__Gradio_201903 16_0800_I1-2-12_I2-8-6_GBIP8-14- 7_Vin-2.5V_R11-1MO_R12-8.5kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.3T_gate-0V.dat>>

R11 = 170/1000*50 = 8,5

Samstag, 16. März 2019

11:00

(1) Structures measured	Crosses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	2-12 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 9.75kΩ 0 1 MΩ 15
(6) Lock-In Setup:	Sens: 50 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<M46_Crosses _15deg_Hloop_down_Gradio_2019031 6_1100_I1-2-12_I2-8-6_GBIP8-14-7 _Vin-2.5V_R11-1MO_R12-9.75kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.3T_gate-0V.dat>> <<M46_Cross es_15deg_Hloop_up_Gradio_2019031 6_1100_I1-2-12_I2-8-6_GBIP8-14-7 _Vin-2.5V_R11-1MO_R12-9.75kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.3T_gate-0V.dat>>

R11 = 195/1000*50 = 9,75

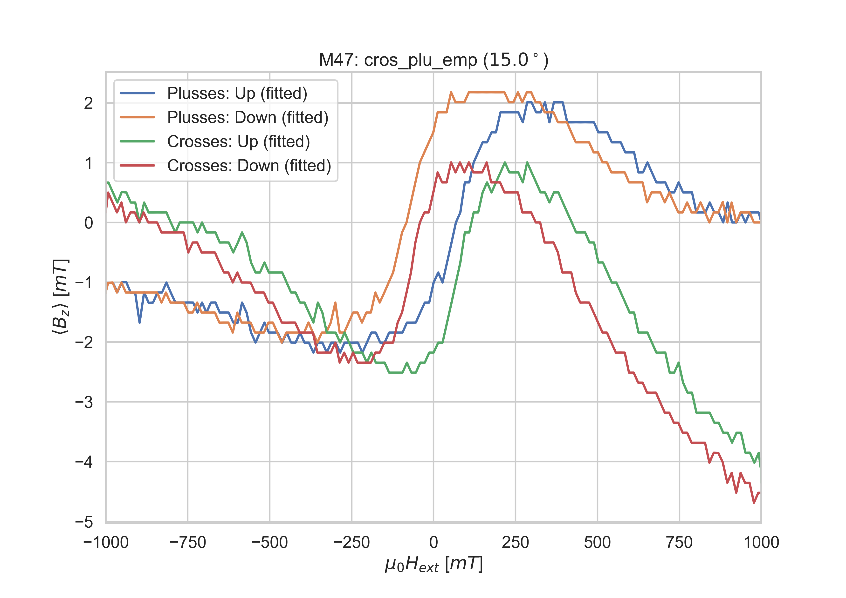

M47: 15deg All Crosses (±1T)_Carrier concentration

Samstag, 16. März 2019

08:29

(1) Structures measured	Plusses_Crosses_empty
(2) Measurement type	Hloop_parallel
(3) Cables Setup:	|imag e2169| |imag e2170| C |imag e2171| |imag e2172| D |imag e2173| |imag e2174| |imag e2175| |imag e2176| Gate (9) |imag e2177| |imag e2178|
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 15
(6) Lock-In Setup:	Sens: 50 mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<M47_cros_plu_emp_15deg_Hloop_d own_Parallel_20190316_1400_I-7-1 4_GB8-1-13_GB9-2-12_GB13-6-8_Vin -2.5V_R11-1MO_C11-1_C21-6_T-30K_ SR-0.5-T-min_B-1T_gate-0V_.dat>> <<M47_cros_plu_emp_15deg_Hloop _up_Parallel_20190316_1400_I-7-1 4_GB8-1-13_GB9-2-12_GB13-6-8_Vin -2.5V_R11-1MO_C11-1_C21-6_T-30K_ SR-0.5-T-min_B-1T_gate-0V_.dat>>

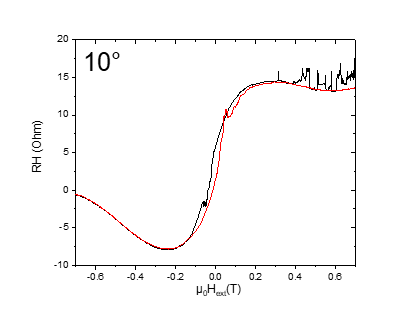

C: Changing angle 10

Samstag, 16. März 2019

14:23

(1) Structures measured	Empty Cross
(2) Measurement type	Angle Changing
(3) Cables Setup:	|imag e2216| 14 - 7 |imag e2217| |imag e2218| Gate (9) |imag e2219| |imag e2220|
(4) Magnet Setup:	B = 1 T
(5) Experiment Setup:	T 1 MΩ 10
(6) Lock-In Setup:	Sens: 20mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:	Voltage before changinig angle: 10.847 mV
(8) Filename and data:	No File created

Aiming for Hall Voltage:

Cos(90)=0

Voltage measured:

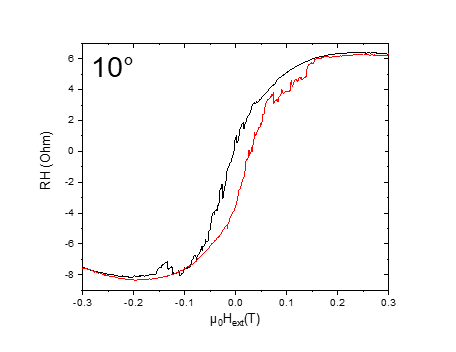

Samstag, 16. März 2019

14:23

(1) Structures measured	Plusses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	1-13 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 8 kΩ 0 1 MΩ 10 1 6
(6) Lock-In Setup:	Sens: 50 μV τ: 3s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<M48_Pluss es_10deg_Hloop_down__Gradio_2019 0316_1400_I1-2-12_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-8kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.3T_gate-0V.dat>> <<M48_Plu sses_10deg_Hloop_up__Gradio_2019 0316_1400_I1-2-12_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-8kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.3T_gate-0V.dat>>

R11 = 160/1000*50 = 8

(1) Structures measured	Crosses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	2-12 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 1,9kΩ 0 1 MΩ 10
(6) Lock-In Setup:	Sens: 50 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<M49_Crosse s_10deg_Hloop_down_Gradio_201903 16_1800_I1-2-12_I2-8-6_GBIP8-14- 7_Vin-2.5V_R11-1MO_R12-1,9kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.7T_gate-0V.dat>> <<M49_Cros ses_10deg_Hloop_up_Gradio_201903 16_1800_I1-2-12_I2-8-6_GBIP8-14- 7_Vin-2.5V_R11-1MO_R12-1,9kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.7T_gate-0V.dat>>

Samstag, 16. März 2019

17:40

R11 = 38/1000*50 = 1,9

M50: 10deg All Crosses (±1T)_Carrier concentration

Sonntag, 17. März 2019

07:57

(1) Structures measured	Plusses_Crosses_empty
(2) Measurement type	Hloop_parallel
(3) Cables Setup:	|imag e2379| |imag e2380| C |imag e2381| |imag e2382| D |imag e2383| |imag e2384| |imag e2385| |imag e2386| Gate (9) |imag e2387| |imag e2388|
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 10
(6) Lock-In Setup:	Sens: 50 mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<M50_cros_plu_emp_10deg_Hloop_d own_Parallel_20190317_0800_I-7-1 4_GB8-1-13_GB9-2-12_GB13-6-8_Vin -2.5V_R11-1MO_C11-1_C21-6_T-30K_ SR-0.5-T-min_B-1T_gate-0V_.dat>> <<M50_cros_plu_emp_10deg_Hloop _up_Parallel_20190317_0800_I-7-1 4_GB8-1-13_GB9-2-12_GB13-6-8_Vin -2.5V_R11-1MO_C11-1_C21-6_T-30K_ SR-0.5-T-min_B-1T_gate-0V_.dat>>

C: Changing angle 5

Sonntag, 17. März 2019

08:05

(1) Structures measured	Empty Cross
name structures-measured-54
(2) Measurement type	Angle Changing
name measurement-type-19
(3) Cables Setup:	14 - 7 Gate (9)
(4) Magnet Setup:	B = 1 T
(5) Experiment Setup:	T 1 MΩ 5
(6) Lock-In Setup:	Sens: 20mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	No File created

Aiming for Hall Voltage:

Cos(90)=0

Voltage measured:

Sonntag, 17. März 2019

08:09

(1) Structures measured	Plusses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	1-13 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 5 kΩ 0 1 MΩ 5 1 6
(6) Lock-In Setup:	Sens: 50 μV τ: 3s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<M51_Plus ses_5deg_Hloop_down__Gradio_2019 0317_0800_I1-1-13_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-5kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.5T_gate-0V.dat>> <<M51_Pl usses_5deg_Hloop_up__Gradio_2019 0317_0800_I1-1-13_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-5kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.5T_gate-0V.dat>>

R11 = 100/1000*50 = 5

Pay attention to files name : typo error in the plusses name I1-1-12 and it should be 1-13

Sonntag, 17. März 2019

13:00

(1) Structures measured	Crosses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	2-12 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 3kΩ 0 1 MΩ 5
(6) Lock-In Setup:	Sens: 50 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<M52_C rosses_5deg_Hloop_up_Gradio_2019 0317_1300_I1-2-12_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-3kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.5T_gate-0V.dat>> <<M52_Cro sses_5deg_Hloop_down_Gradio_2019 0317_1300_I1-2-12_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-3kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.5T_gate-0V.dat>>

R11 = 60/1000*50 = 3

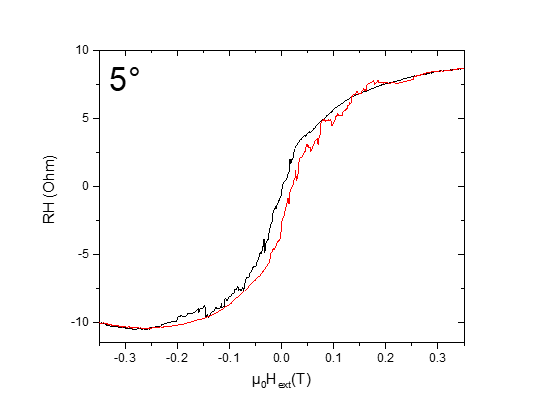

M53: 5deg All Crosses (±1T)_Carrier concentration

Sonntag, 17. März 2019

17:05

(1) Structures measured	Plusses_Crosses_empty
(2) Measurement type	Hloop_parallel
(3) Cables Setup:	|imag e2559| |imag e2560| C |imag e2561| |imag e2562| D |imag e2563| |imag e2564| |imag e2565| |imag e2566| Gate (9) |imag e2567| |imag e2568|
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 5
(6) Lock-In Setup:	Sens: 50 mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<M53_cros_plu_emp_5deg_Hloop_d own_Parallel_20190317_1700_I-7-1 4_GB8-1-13_GB9-2-12_GB13-6-8_Vin -2.5V_R11-1MO_C11-1_C21-6_T-30K_ SR-0.5-T-min_B-1T_gate-0V_.dat>> <<M53_cros_plu_emp_5deg_Hloop _up_Parallel_20190317_1700_I-7-1 4_GB8-1-13_GB9-2-12_GB13-6-8_Vin -2.5V_R11-1MO_C11-1_C21-6_T-30K_ SR-0.5-T-min_B-1T_gate-0V_.dat>>

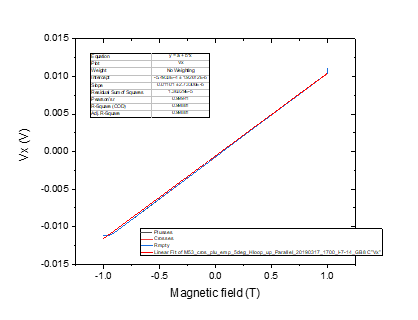

|(Bz)[mn , 14 \| 4 , 1000 0 2 C 乛 osses … Down (fitted) C 乛 osses … Up (fitted) Plusses … Down (fitted 一 Plusses … Up 冖 fitted) \| 750 , 500M53 … cros_plu_emp 冖 5.0 。 一 , 250 UoHext 冖 m 0 250 500 750 1000| ———————————————–

C: Changing angle 0_2nd_VH(0)=VH(max)

Sonntag, 17. März 2019

17:32

(1) Structures measured	Empty Cross
name structures-measured-58
(2) Measurement type	Angle Changing
name measurement-type-21
(3) Cables Setup:	14 - 7 Gate (9)
(4) Magnet Setup:	B = 1 T
(5) Experiment Setup:	T 1 MΩ 0
(6) Lock-In Setup:	Sens: 20mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	No File created

Hall Voltage:

Cos(90)=0

Voltage measured:

17 March 2019

18:00

(1) Structures measured	Plusses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	1-13 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 9.35 kΩ 0 1 MΩ 0 1 6
(6) Lock-In Setup:	Sens: 50 μV τ: 3s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:	It might need to be repeated again for higher field range.
(8) Filename and data:	<<M54_Pluss es_0deg_Hloop_up__Gradio_2019031 7_1800_I1-1-13_I2-8-6_GBIP8-14-7 _Vin-2.5V_R11-1MO_R12-9.35kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.5T_gate-0V.dat>> <<M54_Plusses _0deg_Hloop_down__Gradio_2019031 7_1800_I1-1-13_I2-8-6_GBIP8-14-7 _Vin-2.5V_R11-1MO_R12-9.35kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.5T_gate-0V.dat>>

R11 = 187/1000*50 = 9,35

Sonntag, 17. März 2019

22:09

(1) Structures measured	Crosses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	2-12 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 5.25kΩ 0 1 MΩ 0
(6) Lock-In Setup:	Sens: 50 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<M55_Cros ses_0deg_Hloop_down_Gradio_20190 317_2200_I1-2-12_I2-8-6_GBIP8-14 -7_Vin-2.5V_R11-1MO_R12-5.25kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_S R-0.008-T-min_B-1T_gate-0V.dat>> <<M55_Cr osses_0deg_Hloop_up_Gradio_20190 317_2200_I1-2-12_I2-8-6_GBIP8-14 -7_Vin-2.5V_R11-1MO_R12-5.25kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_S R-0.008-T-min_B-1T_gate-0V.dat>>

R11 = 105/1000*50 = 5,25

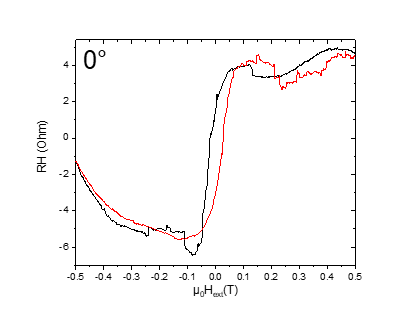

m56: 0deg Empty cross only_2nd_ (±1T)_Carrier concentration

Sonntag, 17. März 2019

17:05

(1) Structures measured	Plusses_Crosses_empty
(2) Measurement type	Hloop_parallel
(3) Cables Setup:	|imag e2738| |imag e2739| C |imag e2740| |imag e2741| D |imag e2742| |imag e2743| |imag e2744| |imag e2745| Gate (9) |imag e2746| |imag e2747|
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 0
(6) Lock-In Setup:	Sens: 50 mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<m56_emp_0deg_Hloop_up_Parallel _20190318_0800_I-7-14_GB8-6-8_Vi n-2.5V_R11-1MO_C11-1_C21-6_T-30K _SR-01-T-min_B-1T_gate-0V_.dat>> << m56_emp_0deg_Hloop_down_Parallel _20190318_0800_I-7-14_GB8-6-8_Vi n-2.5V_R11-1MO_C11-1_C21-6_T-30K _SR-01-T-min_B-1T_gate-0V_.dat>>

Note: I did forget doing this at the original location of 0deg. I by mistake changged the angle to 90 and then again to 0 to make this measuremtn. VH(max)= 11.386mV

Note:the parallel measurments is not suitable in 0deg. I did measure only for the empty cross.

|000 09Z 009 098 冖 。 0 • 0 一 dwe … 99W w] 0 098 \| 冖 pell!J) … SéSSOJO (P911!J) :sessnld (pell!J) d n … SéSSOJO 冖 P911!J) dn :sessnld 009 \| 09Z \| 000 ㄒ 000L 09Z 009 09d 0 096 \| 009 \| 09Z , 000 ㄒ|

Used this Measurement to calculate Strayfield for other Measurements

C: Changing angle 90deg VH=VH(min)

Montag, 18. März 2019

08:26

(1) Structures measured	Empty Cross
(2) Measurement type	Angle Changing
(3) Cables Setup:	|imag e2785| 14 - 7 |imag e2786| |imag e2787| Gate (9) |imag e2788| |imag e2789|
(4) Magnet Setup:	B = 1 T
(5) Experiment Setup:	T 1 MΩ 90
(6) Lock-In Setup:	Sens: 20mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:	Voltage before changinig angle: 11,383 mV
(8) Filename and data:	<<test79_Full_Fast_ Sweep_at_90deg_empty_cross.dat>>

Aiming for Hall Voltage:

Cos(90)=0

Voltage measured after balancing (1 μV @ 1T - 6.5 μV @ -1 T see test79.dat):

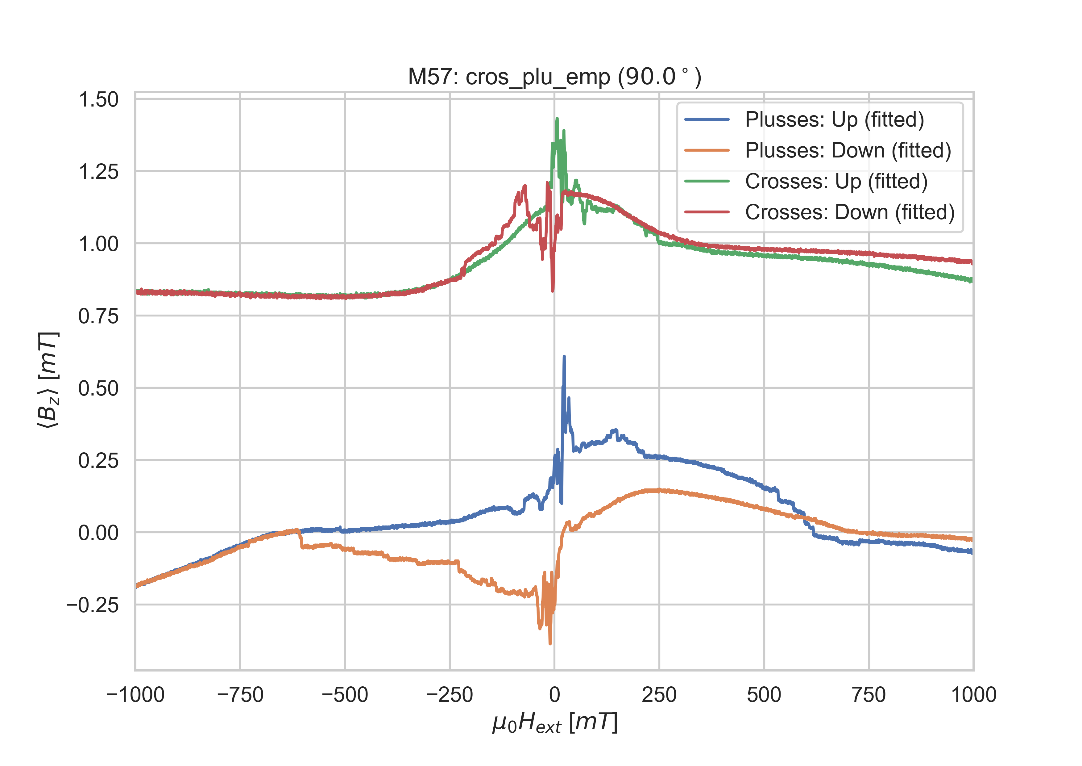

m57: Plusses_Crosses_empty_Hloop_90deg_10mT/min

Montag, 18. März 2019

10:43

(1) Structures measured	Plusses_Crosses_empty
(2) Measurement type	Hloop_parallel
(3) Cables Setup:	|imag e2849| |imag e2850| P lusses (C) |imag e2851| |imag e2852| C rosses (D) |imag e2853| |imag e2854| Empty |imag e2855| |imag e2856| Gate (9) |imag e2857| |imag e2858|
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 90
(6) Lock-In Setup:	Sens: 500 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<m57_cros_plu_emp_90deg_Hloop_d own_Parallel_20190318_1100_I-7-1 4_GB8-1-13_GB9-2-12_GB13-6-8_Vin -2.5V_R11-1MO_C11-1_C21-6_T-30K_ SR-0.01-T-min_B-1T_gate-0V.dat>> <<m57_cros_plu_emp_90deg_Hloop _up_Parallel_20190318_1100_I-7-1 4_GB8-1-13_GB9-2-12_GB13-6-8_Vin -2.5V_R11-1MO_C11-1_C21-6_T-30K_ SR-0.01-T-min_B-1T_gate-0V.dat>>

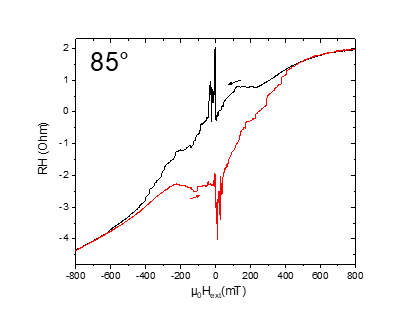

C: Changing angle 85_

Montag, 18. März 2019

20:50

(1) Structures measured	Empty Cross
name structures-measured-64
(2) Measurement type	Angle Changing
name measurement-type-25
(3) Cables Setup:	14 - 7 Gate (9)
(4) Magnet Setup:	B = 1 T
(5) Experiment Setup:	T 1 MΩ 85
(6) Lock-In Setup:	Sens: 20mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	No File created

Aiming for Hall Voltage:

Cos(90)=0

Voltage measured:

Montag, 18. März 2019

21:00

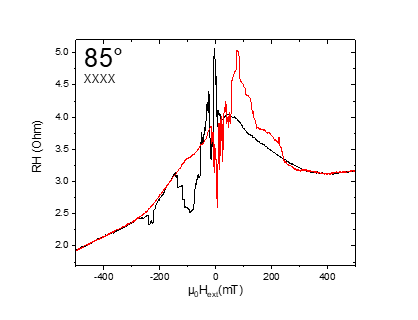

(1) Structures measured	Plusses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	1-13 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 3,25 kΩ 0 1 MΩ 85 1 6
(6) Lock-In Setup:	Sens: 20 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<m58_Plusse s_85deg_Hloop_down__Gradio_20190 318_2100_I1-1-13_I2-8-6_GBIP8-14 -7_Vin-2.5V_R11-1MO_R12-3.25kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_S R-0.008-T-min_B-1T_gate-0V.dat>> <<m58_Plus ses_85deg_Hloop_up__Gradio_20190 318_2100_I1-1-13_I2-8-6_GBIP8-14 -7_Vin-2.5V_R11-1MO_R12-3.25kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_S R-0.008-T-min_B-1T_gate-0V.dat>>

R11 = 65/1000*50 = 3,25

Dienstag, 19. März 2019

07:51

(1) Structures measured	Crosses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	2-12 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 3kΩ 0 1 MΩ 85
(6) Lock-In Setup:	Sens: 20 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<m59_Cr osses_85deg_Hloop_down__Gradio_2 0190319_0800_I1-2-12_I2-8-6_GBIP 8-14-7_Vin-2.5V_R11-1MO_R12-3kO_ R13-0_R21-1MO_C11-1_C21-6_T-30K_ SR-0.01-T-min_B-1T_gate-0V.dat>> <<m59_ Crosses_85deg_Hloop_up__Gradio_2 0190319_0800_I1-2-12_I2-8-6_GBIP 8-14-7_Vin-2.5V_R11-1MO_R12-3kO_ R13-0_R21-1MO_C11-1_C21-6_T-30K_ SR-0.01-T-min_B-1T_gate-0V.dat>>

R11 = 60/1000*50 = 3

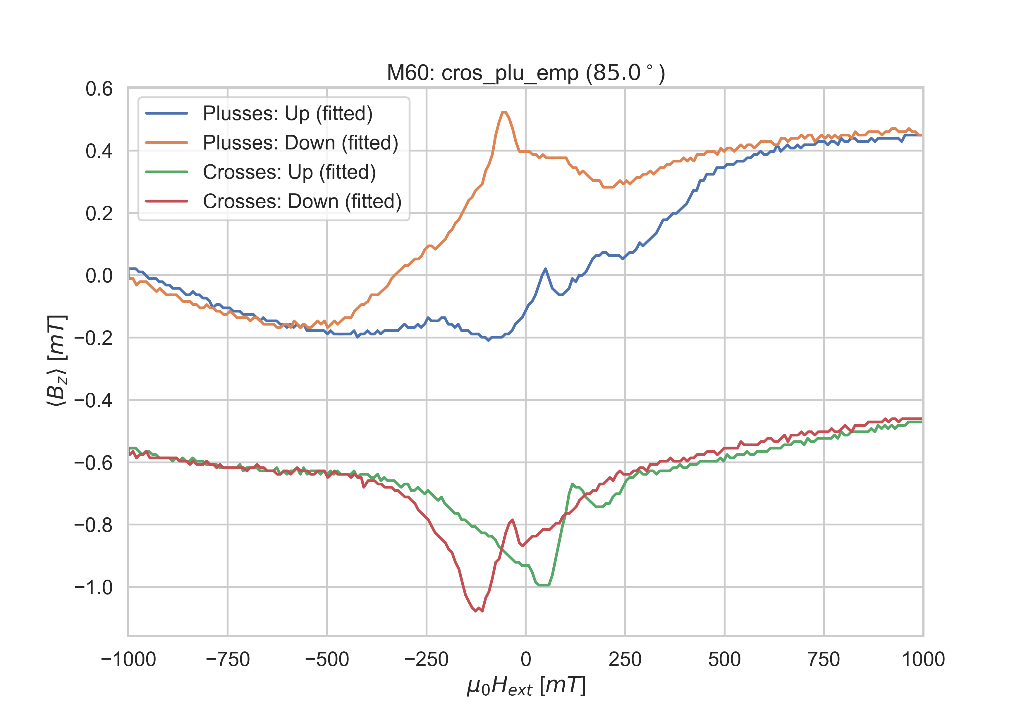

m60: Plusses_Crosses_empty_Hloop_85deg_500mT/min

Dienstag, 19. März 2019

15:12

(1) Structures measured	Plusses_Crosses_empty
(2) Measurement type	Hloop_parallel
(3) Cables Setup:	|imag e3030| |imag e3031| P lusses (C) |imag e3032| |imag e3033| C rosses (D) |imag e3034| |imag e3035| Empty |imag e3036| |imag e3037| Gate (9) |imag e3038| |imag e3039|
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 85
(6) Lock-In Setup:	Sens: 2 mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	< <m60_cros_plu_emp_85deg_Hloop_do wn_Parallel_20190319_1500_I-7-14 _GB8-1-13_GB9-2-12_GB13-6-8_Vin- 2.5V_R11-1MO_C11-1_C21-6_T-30K_S R-0.5-T-min_B-1T_gate-0V_2.dat>> <<m60_cros_plu_emp_85deg_Hloop_ up_Parallel_20190319_1500_I-7-14 _GB8-1-13_GB9-2-12_GB13-6-8_Vin- 2.5V_R11-1MO_C11-1_C21-6_T-30K_S R-0.5-T-min_B-1T_gate-0V_2.dat>>

C: Changing angle 80

Dienstag, 19. März 2019

15:12

(1) Structures measured	Empty Cross
name structures-measured-68
(2) Measurement type	Angle Changing
name measurement-type-27
(3) Cables Setup:	14 - 7 Gate (9)
(4) Magnet Setup:	B = 1 T
(5) Experiment Setup:	T 1 MΩ 85
(6) Lock-In Setup:	Sens: 20mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	No File created

Aiming for Hall Voltage:

Voltage measured:

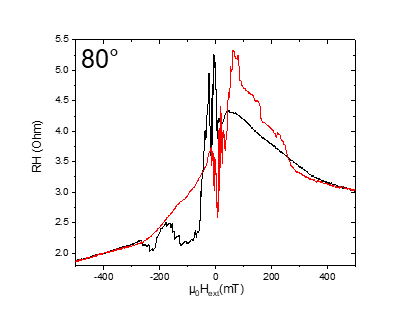

Dienstag, 19. März 2019

15:12

(1) Structures measured	Plusses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	1-13 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 3.15kΩ 0 1 MΩ 80 1 6
(6) Lock-In Setup:	Sens: 10 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<m61_Plu sses_80deg_Hloop_up__Gradio_2019 0319_1530_I1-1-13_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-3.15kO_ R13-0_R21-1MO_C11-1_C21-6_T-30K_ SR-0.01-T-min_B-1T_gate-0V.dat>> <<m61_Pluss es_80deg_Hloop_down__Gradio_2019 0319_1530_I1-1-13_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-3.15kO_ R13-0_R21-1MO_C11-1_C21-6_T-30K_ SR-0.01-T-min_B-1T_gate-0V.dat>>

R12= 45/1000*50 = 3,15

Dienstag, 19. März 2019

22:23

(1) Structures measured	Crosses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	2-12 8-6 (empty) 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 2.25kO 0 1 MΩ 80 1 6
(6) Lock-In Setup:	Sens: 20 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<m62_Crosse s_80deg_Hloop_down__Gradio_20190 319_2230_I1-2-12_I2-8-6_GBIP8-14 -7_Vin-2.5V_R11-1MO_R12-2.25kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_S R-0.008-T-min_B-1T_gate-0V.dat>> <<m62_Cros ses_80deg_Hloop_up__Gradio_20190 319_2230_I1-2-12_I2-8-6_GBIP8-14 -7_Vin-2.5V_R11-1MO_R12-2.25kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_S R-0.008-T-min_B-1T_gate-0V.dat>>

R12 = 45/1000*50 = 2,25

Measurement has started at 22:42 :(

m63: Plusses_Crosses_empty_Hloop_80deg_500mT/min

Mittwoch, 20. März 2019

08:28

(1) Structures measured	Plusses_Crosses_empty
(2) Measurement type	Hloop_parallel
(3) Cables Setup:	|imag e3216| |imag e3217| P lusses (C) |imag e3218| |imag e3219| C rosses (D) |imag e3220| |imag e3221| Empty |imag e3222| |imag e3223| Gate (9) |imag e3224| |imag e3225|
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 80
(6) Lock-In Setup:	Sens: 2 mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	< <m63_cros_plu_emp_80deg_Hloop_do wn_Parallel_20190320_0800_I-7-14 _GB8-1-13_GB9-2-12_GB13-6-8_Vin- 2.5V_R11-1MO_C11-1_C21-6_T-30K_S R-0.5-T-min_B-1T_gate-0V_2.dat>> <<m63_cros_plu_emp_80deg_Hloop_ up_Parallel_20190320_0800_I-7-14 _GB8-1-13_GB9-2-12_GB13-6-8_Vin- 2.5V_R11-1MO_C11-1_C21-6_T-30K_S R-0.5-T-min_B-1T_gate-0V_2.dat>>

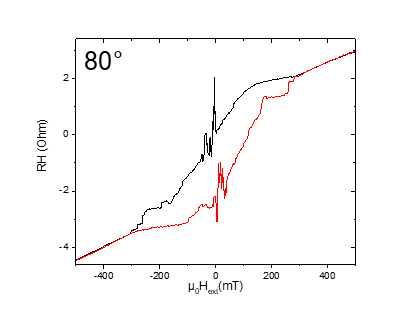

|000 09Z 009 冖 。 0 • 08 一 dwe¯nld¯SOJ0 9LAJ 098 w] 0 098 \| 冖 pell!J) … SéSSOJO (P911!J) I-IMOO :sessnld 冖 pell!J) d n … SéSSOJO 冖 P911!J) dn :sessnld 009 \| 09Z \| 000 ㄒ 09 • 0 940 0q0 09 • 0 丨 GL 0 , 00 · ㄒ 94 ㄒ|

C: Changing angle 75

Mittwoch, 20. März 2019

08:29

(1) Structures measured	Empty Cross
(2) Measurement type	Angle Changing
(3) Cables Setup:	|imag e3263| 14 - 7 |imag e3264| |imag e3265| Gate (9) |imag e3266| |imag e3267|
(4) Magnet Setup:	B = 1 T
(5) Experiment Setup:	T 1 MΩ 75
(6) Lock-In Setup:	Sens: 20mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:	VH measured before changing the angle: 1.948mV
(8) Filename and data:	No File created

Aiming for Hall Voltage:

Voltage measured:

Mittwoch, 20. März 2019

08:32

(1) Structures measured	Plusses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	1-13 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 3.6kΩ 0 1 MΩ 75 1 6
(6) Lock-In Setup:	Sens: 20 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<m64_Pluss es_75deg_Hloop_up__Gradio_201903 20_0800_I1-1-13_I2-8-6_GBIP8-14- 7_Vin-2.5V_R11-1MO_R12-3.6kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.01-T-min_B-0.75T_gate-0V.dat>> <<m64_Plusses _75deg_Hloop_down__Gradio_201903 20_0800_I1-1-13_I2-8-6_GBIP8-14- 7_Vin-2.5V_R11-1MO_R12-3.6kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.01-T-min_B-0.75T_gate-0V.dat>>

R12= 72/1000*50 = 3,6

Mittwoch, 20. März 2019

14:48

(1) Structures measured	Crosses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	2-12 8-6 (empty) 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 3.25kO 0 1 MΩ 75 1 6
(6) Lock-In Setup:	Sens: 20 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<m65_Cros ses_75deg_Hloop_up__Gradio_20190 320_1430_I1-2-12_I2-8-6_GBIP8-14 -7_Vin-2.5V_R11-1MO_R12-3.25kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_S R-0.008-T-min_B-1T_gate-0V.dat>> <<m65_Crosse s_75deg_Hloop_down__Gradio_20190 320_1430_I1-2-12_I2-8-6_GBIP8-14 -7_Vin-2.5V_R11-1MO_R12-3.25kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_S R-0.008-T-min_B-1T_gate-0V.dat>>

R12 = 65/1000*50 = 3,25

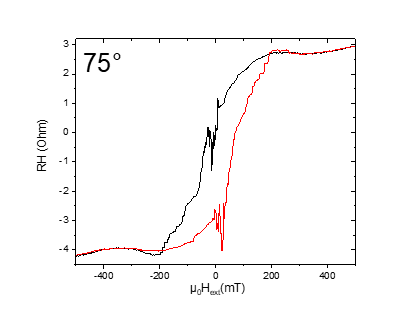

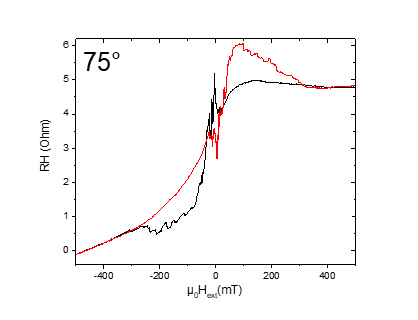

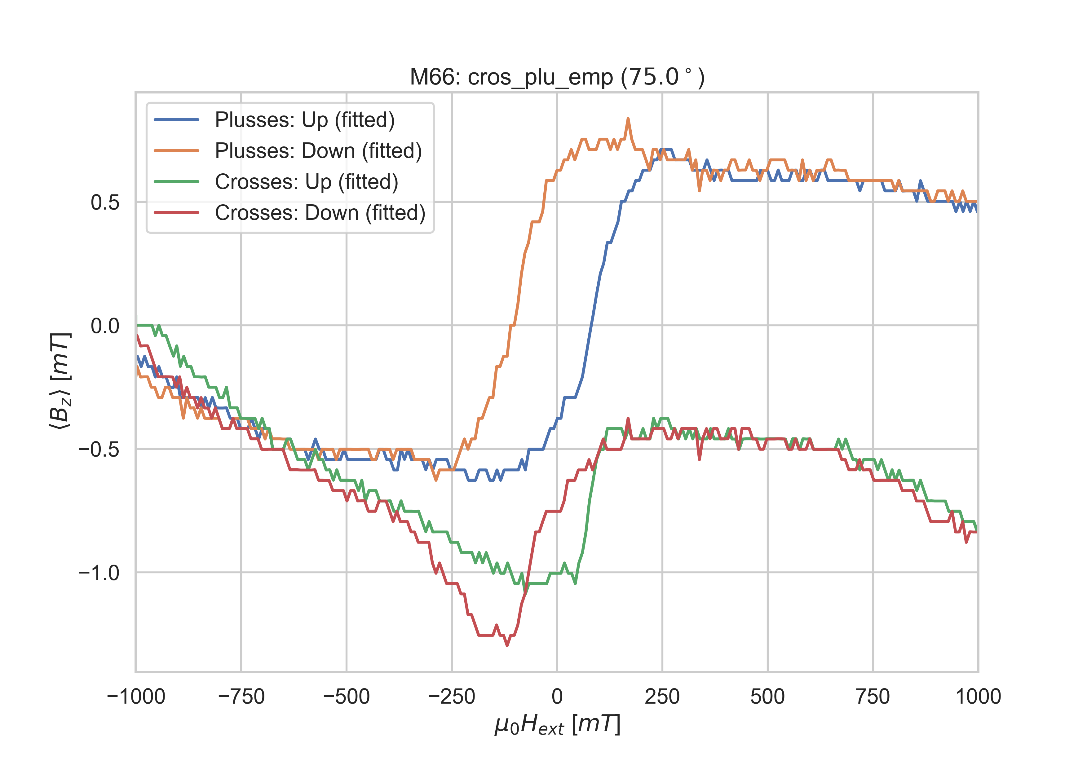

m66: Plusses_Crosses_empty_Hloop_75deg_500mT/min

Mittwoch, 20. März 2019

19:22

(1) Structures measured	Plusses_Crosses_empty
(2) Measurement type	Hloop_parallel
(3) Cables Setup:	|imag e3431| |imag e3432| P lusses (C) |imag e3433| |imag e3434| C rosses (D) |imag e3435| |imag e3436| Empty |imag e3437| |imag e3438| Gate (9) |imag e3439| |imag e3440|
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 75
(6) Lock-In Setup:	Sens: 2 mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	< <m66_cros_plu_emp_75deg_Hloop_do wn_Parallel_20190320_1900_I-7-14 _GB8-1-13_GB9-2-12_GB13-6-8_Vin- 2.5V_R11-1MO_C11-1_C21-6_T-30K_S R-0.5-T-min_B-1T_gate-0V_2.dat>> <<m66_cros_plu_emp_75deg_Hloop_ up_Parallel_20190320_1900_I-7-14 _GB8-1-13_GB9-2-12_GB13-6-8_Vin- 2.5V_R11-1MO_C11-1_C21-6_T-30K_S R-0.5-T-min_B-1T_gate-0V_2.dat>>

C: Changing angle 70

Mittwoch, 20. März 2019

19:28

(1) Structures measured	Empty Cross
(2) Measurement type	Angle Changing
(3) Cables Setup:	|imag e3478| 14 - 7 |imag e3479| |imag e3480| Gate (9) |imag e3481| |imag e3482|
(4) Magnet Setup:	B = 1 T
(5) Experiment Setup:	T 1 MΩ 70
(6) Lock-In Setup:	Sens: 20mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:	VH measured before changing the angle: 2.886mV
(8) Filename and data:	No File created

Aiming for Hall Voltage:

Voltage measured:

Mittwoch, 20. März 2019

20:02

(1) Structures measured	Plusses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	1-13 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 5.15kΩ 0 1 MΩ 70 1 6
(6) Lock-In Setup:	Sens: 10 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<m67_Plusses_ 70deg_Hloop_down__Gradio_2019032 0_2000_I1-1-13_I2-8-6_GBIP8-14-7 _Vin-2.5V_R11-1MO_R12-5.15kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.5T_gate-0V.dat>> <<m67_Plusse s_70deg_Hloop_up__Gradio_2019032 0_2000_I1-1-13_I2-8-6_GBIP8-14-7 _Vin-2.5V_R11-1MO_R12-5.15kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.5T_gate-0V.dat>>

R12= 103/1000*50 = 5,15

Donnerstag, 21. März 2019

07:11

(1) Structures measured	Crosses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	2-12 8-6 (empty) 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 3.5kO 0 1 MΩ 70 1 6
(6) Lock-In Setup:	Sens: 20 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<m68_Cross es_70deg_Hloop_up__Gradio_201903 21_0700_I1-2-12_I2-8-6_GBIP8-14- 7_Vin-2.5V_R11-1MO_R12-3.5kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.5T_gate-0V.dat>> <<m68_Crosses _70deg_Hloop_down__Gradio_201903 21_0700_I1-2-12_I2-8-6_GBIP8-14- 7_Vin-2.5V_R11-1MO_R12-3.5kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.5T_gate-0V.dat>>

R12 = 70/1000*50 = 3,5

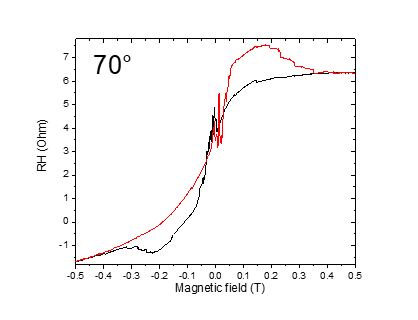

m69: Plusses_Crosses_empty_Hloop_70deg_1T/min

Mittwoch, 20. März 2019

19:22

(1) Structures measured	Plusses_Crosses_empty
(2) Measurement type	Hloop_parallel
(3) Cables Setup:	|imag e3646| |imag e3647| P lusses (C) |imag e3648| |imag e3649| C rosses (D) |imag e3650| |imag e3651| Empty |imag e3652| |imag e3653| Gate (9) |imag e3654| |imag e3655|
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 70
(6) Lock-In Setup:	Sens: 20 mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<m69_cros_plu_emp_70deg_Hloop_ down_Parallel_20190321_1200_I-7- 14_GB8-1-13_GB9-2-12_GB13-6-8_Vi n-2.5V_R11-1MO_C11-1_C21-6_T-30K _SR-0.5-T-min_B-1T_gate-0V.dat>> <<m69_cros_plu_emp_70deg_Hloo p_up_Parallel_20190321_1200_I-7- 14_GB8-1-13_GB9-2-12_GB13-6-8_Vi n-2.5V_R11-1MO_C11-1_C21-6_T-30K _SR-0.5-T-min_B-1T_gate-0V.dat>>

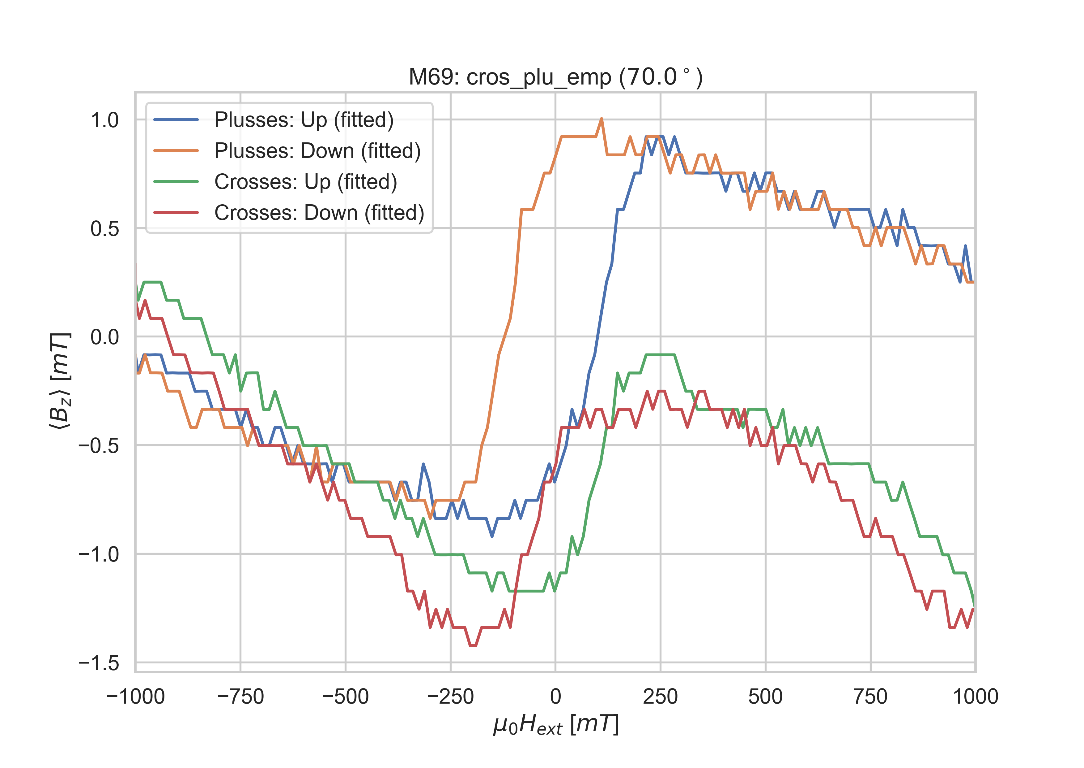

C: Changing angle 65

Donnerstag, 21. März 2019

12:16

(1) Structures measured	Empty Cross
name structures-measured-80
(2) Measurement type	Angle Changing
name measurement-type-33
(3) Cables Setup:	14 - 7 Gate (9)
(4) Magnet Setup:	B = 1 T
(5) Experiment Setup:	T 1 MΩ 65
(6) Lock-In Setup:	Sens: 20mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	No File created

Aiming for Hall Voltage:

Voltage measured:

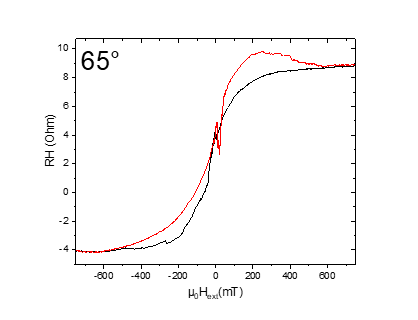

Donnerstag, 21. März 2019

12:15

(1) Structures measured	Plusses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	1-13 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 5.15kΩ 0 1 MΩ 65 1 6
(6) Lock-In Setup:	Sens: 10 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<m70_Plusses _65deg_Hloop_down__Gradio_201903 21_1200_I1-1-13_I2-8-6_GBIP8-14- 7_Vin-2.5V_R11-1MO_R12-5.15kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR -0.01-T-min_B-0.5T_gate-0V.dat>> <<m70_Pluss es_65deg_Hloop_up__Gradio_201903 21_1200_I1-1-13_I2-8-6_GBIP8-14- 7_Vin-2.5V_R11-1MO_R12-5.15kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR -0.01-T-min_B-0.5T_gate-0V.dat>>

R12= 103/1000*50 = 5,15

Donnerstag, 21. März 2019

18:50

(1) Structures measured	Crosses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	2-12 8-6 (empty) 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 1,3kO 0 1 MΩ 65 1 6
(6) Lock-In Setup:	Sens: 20 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<m71_Crosses_ 65deg_Hloop_down__Gradio_2019032 1_1900_I1-2-12_I2-8-6_GBIP8-14-7 _Vin-2.5V_R11-1MO_R12-1.3kO_R13- 0_R21-1MO_C11-1_C21-6_T-30K_SR-0 .008-T-min_B-0.75T_gate-0V.dat>> <<m71_Crosse s_65deg_Hloop_up__Gradio_2019032 1_1900_I1-2-12_I2-8-6_GBIP8-14-7 _Vin-2.5V_R11-1MO_R12-1.3kO_R13- 0_R21-1MO_C11-1_C21-6_T-30K_SR-0 .008-T-min_B-0.75T_gate-0V.dat>>

R12 = 26/1000*50 = 1,3

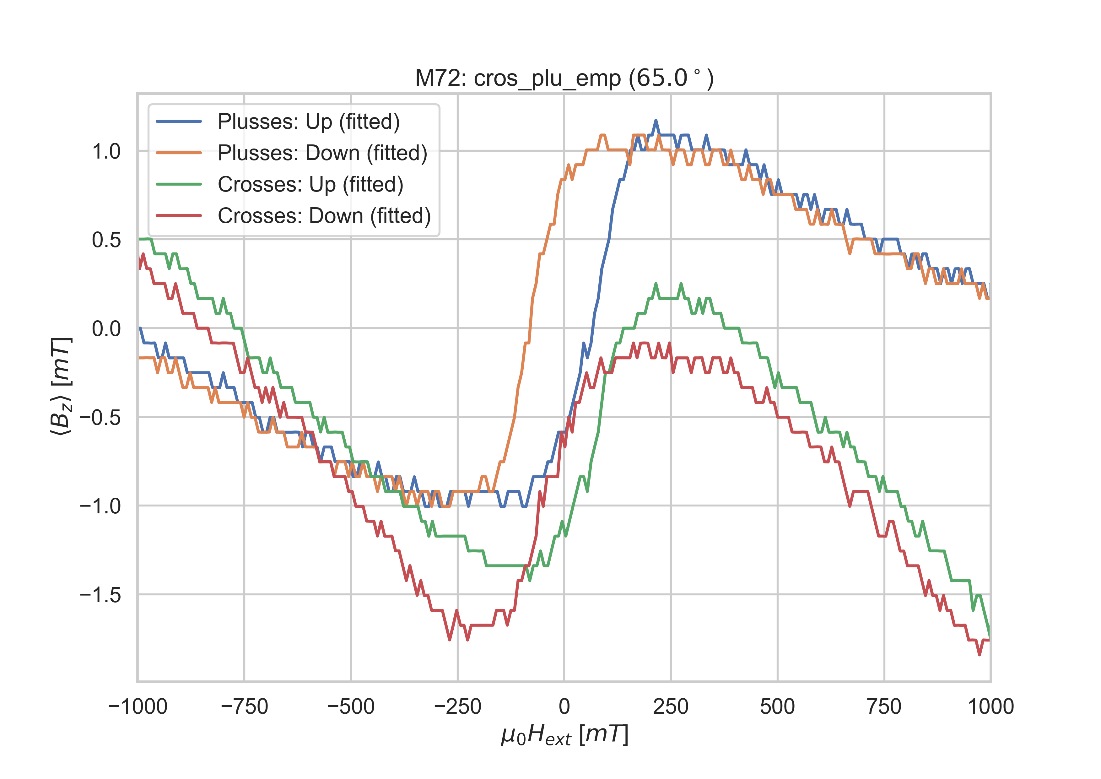

m72: Plusses_Crosses_empty_Hloop_65deg_1T/min

Freitag, 22. März 2019

07:39

(1) Structures measured	Plusses_Crosses_empty
(2) Measurement type	Hloop_parallel
(3) Cables Setup:	|imag e3831| |imag e3832| P lusses (C) |imag e3833| |imag e3834| C rosses (D) |imag e3835| |imag e3836| Empty |imag e3837| |imag e3838| Gate (9) |imag e3839| |imag e3840|
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 65
(6) Lock-In Setup:	Sens: 20 mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<m72_cros_plu_emp_65deg_Hloop _up_Parallel_20190322_0700_I-7-1 4_GB8-1-13_GB9-2-12_GB13-6-8_Vin -2.5V_R11-1MO_C11-1_C21-6_T-30K_ SR-0.5-T-min_B-1T_gate-0V_.dat>> <<m72_cros_plu_emp_65deg_Hloop_d own_Parallel_20190322_0700_I-7-1 4_GB8-1-13_GB9-2-12_GB13-6-8_Vin -2.5V_R11-1MO_C11-1_C21-6_T-30K_ SR-0.5-T-min_B-1T_gate-0V_.dat>>

C: Changing angle 60

Freitag, 22. März 2019

12:16

(1) Structures measured	Empty Cross
(2) Measurement type	Angle Changing
(3) Cables Setup:	|imag e3878| 14 - 7 |imag e3879| |imag e3880| Gate (9) |imag e3881| |imag e3882|
(4) Magnet Setup:	B = 1 T
(5) Experiment Setup:	T 1 MΩ 60
(6) Lock-In Setup:	Sens: 20mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:	VH before changing the angle: 4.706mV
(8) Filename and data:	No File created

Aiming for Hall Voltage:

Voltage measured:

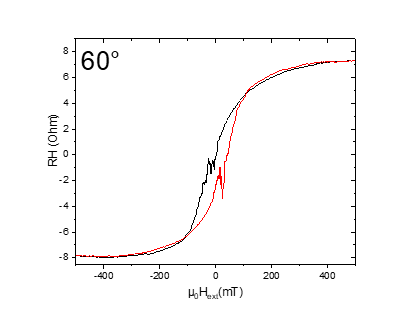

Freitag, 22. März 2019

08:11

(1) Structures measured	Plusses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	1-13 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 3.1kΩ 0 1 MΩ 60 1 6
(6) Lock-In Setup:	Sens: 20 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<m73_Plus ses_60deg_Hloop_up__Gradio_20190 322_0800_I1-1-13_I2-8-6_GBIP8-14 -7_Vin-2.5V_R11-1MO_R12-3.1kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR -0.01-T-min_B-0.7T_gate-0V.dat>> <<m73_Plusse s_60deg_Hloop_down__Gradio_20190 322_0800_I1-1-13_I2-8-6_GBIP8-14 -7_Vin-2.5V_R11-1MO_R12-3.1kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR -0.01-T-min_B-0.7T_gate-0V.dat>>

R12= 62/1000*50 = 3,1

Freitag, 22. März 2019

13:52

(1) Structures measured	Crosses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	2-12 8-6 (empty) 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 2.8kO 0 1 MΩ 60 1 6
(6) Lock-In Setup:	Sens: 50 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<m74_Crosse s_60deg_Hloop_down__Gradio_20190 322_1400_I1-2-12_I2-8-6_GBIP8-14 -7_Vin-2.5V_R11-1MO_R12-2.8kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR -0.01-T-min_B-0.6T_gate-0V.dat>> <<m74_Cros ses_60deg_Hloop_up__Gradio_20190 322_1400_I1-2-12_I2-8-6_GBIP8-14 -7_Vin-2.5V_R11-1MO_R12-2.8kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR -0.01-T-min_B-0.6T_gate-0V.dat>>

R12 = 56/1000*50 = 2,8

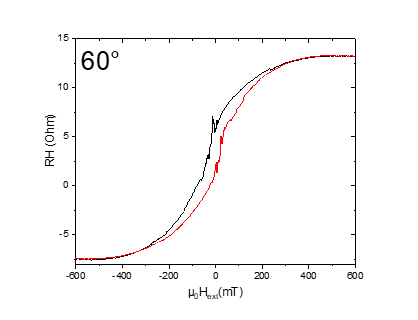

m75: Plusses_Crosses_empty_Hloop_60deg_1T/min

Freitag, 22. März 2019

18:16

(1) Structures measured	Plusses_Crosses_empty
(2) Measurement type	Hloop_parallel
(3) Cables Setup:	|imag e4046| |imag e4047| P lusses (C) |imag e4048| |imag e4049| C rosses (D) |imag e4050| |imag e4051| Empty |imag e4052| |imag e4053| Gate (9) |imag e4054| |imag e4055|
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 60
(6) Lock-In Setup:	Sens: 20 mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<m75_cros_plu_emp_60deg_Hloop_d own_Parallel_20190322_1800_I-7-1 4_GB8-1-13_GB9-2-12_GB13-6-8_Vin -2.5V_R11-1MO_C11-1_C21-6_T-30K_ SR-0.5-T-min_B-1T_gate-0V_.dat>> <<m75_cros_plu_emp_60deg_Hloop _up_Parallel_20190322_1800_I-7-1 4_GB8-1-13_GB9-2-12_GB13-6-8_Vin -2.5V_R11-1MO_C11-1_C21-6_T-30K_ SR-0.5-T-min_B-1T_gate-0V_.dat>>

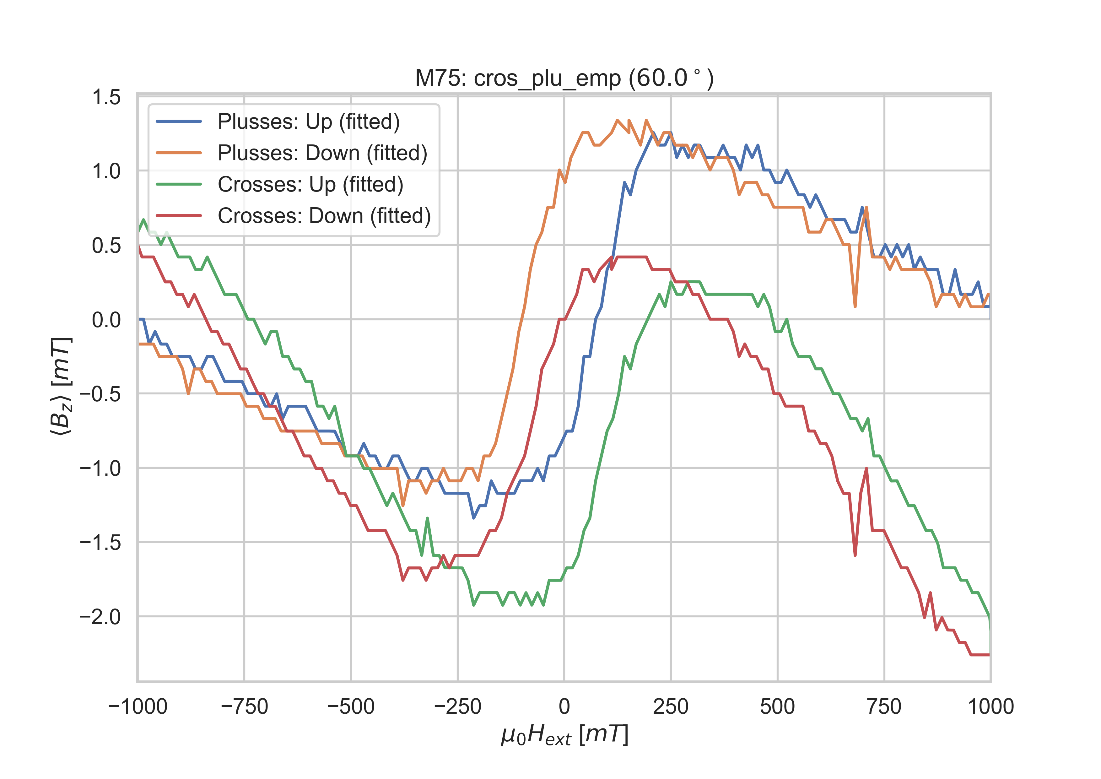

C: Changing angle 55

Freitag, 22. März 2019

18:17

(1) Structures measured	Empty Cross
(2) Measurement type	Angle Changing
(3) Cables Setup:	|imag e4093| 14 - 7 |imag e4094| |imag e4095| Gate (9) |imag e4096| |imag e4097|
(4) Magnet Setup:	B = 1 T
(5) Experiment Setup:	T 1 MΩ 55
(6) Lock-In Setup:	Sens: 20mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:	VH before changing the angle: 5,561mV
(8) Filename and data:	No File created

Aiming for Hall Voltage:

Voltage measured:

Freitag, 22. März 2019

18:35

(1) Structures measured	Plusses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	1-13 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 4,75kΩ 0 1 MΩ 55 1 6
(6) Lock-In Setup:	Sens: 20 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<m76_Plusse s_55deg_Hloop_down__Gradio_20190 322_1900_I1-1-13_I2-8-6_GBIP8-14 -7_Vin-2.5V_R11-1MO_R1-4.75kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR -0.01-T-min_B-0.5T_gate-0V.dat>> <<m76_Plus ses_55deg_Hloop_up__Gradio_20190 322_1900_I1-1-13_I2-8-6_GBIP8-14 -7_Vin-2.5V_R11-1MO_R1-4.75kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR -0.01-T-min_B-0.5T_gate-0V.dat>>

R12= 95/1000*50 = 4,75

Freitag, 22. März 2019

22:11

(1) Structures measured	Crosses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	2-12 8-6 (empty) 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 2.65kO 0 1 MΩ 55 1 6
(6) Lock-In Setup:	Sens: 50 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<m77_Crosses_ 55deg_Hloop_down__Gradio_2019032 2_2200_I1-2-12_I2-8-6_GBIP8-14-7 _Vin-2.5V_R11-1MO_R12-2.65kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.6T_gate-0V.dat>> <<m77_Crosse s_55deg_Hloop_up__Gradio_2019032 2_2200_I1-2-12_I2-8-6_GBIP8-14-7 _Vin-2.5V_R11-1MO_R12-2.65kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-0.6T_gate-0V.dat>>

R12 = 53/1000*50 = 2,65

I have realized that there is a problem with the cables of current I1. I did change them and everything was fine.

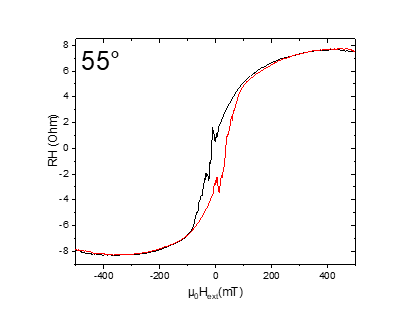

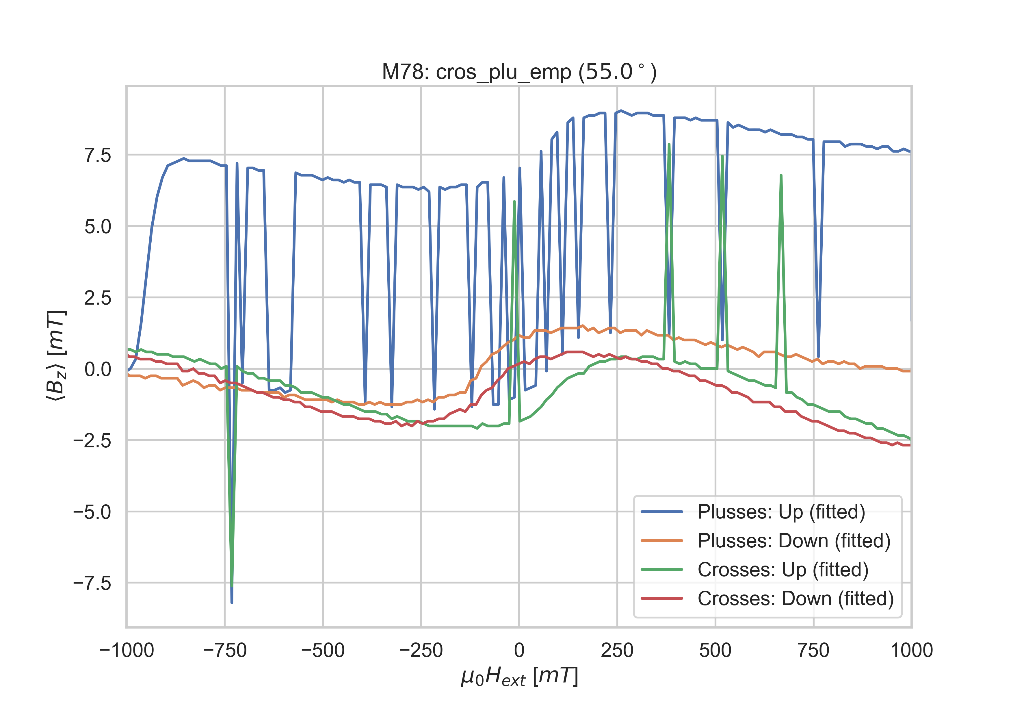

M78: Plusses_Crosses_empty_Hloop_55deg_1T/min

Samstag, 23. März 2019

09:09

(1) Structures measured	Plusses_Crosses_empty
(2) Measurement type	Hloop_parallel
(3) Cables Setup:	|imag e4261| |imag e4262| P lusses (C) |imag e4263| |imag e4264| C rosses (D) |imag e4265| |imag e4266| Empty |imag e4267| |imag e4268| Gate (9) |imag e4269| |imag e4270|
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 55
(6) Lock-In Setup:	Sens: 20 mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<m78_cros_plu_emp_55deg_Hloop _up_Parallel_20190323_0900_I-7-1 4_GB8-1-13_GB9-2-12_GB13-6-8_Vin -2.5V_R11-1MO_C11-1_C21-6_T-30K_ SR-0.5-T-min_B-1T_gate-0V_.dat>> <<m78_cros_plu_emp_55deg_Hloop_d own_Parallel_20190323_0900_I-7-1 4_GB8-1-13_GB9-2-12_GB13-6-8_Vin -2.5V_R11-1MO_C11-1_C21-6_T-30K_ SR-0.5-T-min_B-1T_gate-0V_.dat>>

C: Changing angle 50

Samstag, 23. März 2019

09:09

(1) Structures measured	Empty Cross
(2) Measurement type	Angle Changing
(3) Cables Setup:	|imag e4308| 14 - 7 |imag e4309| |imag e4310| Gate (9) |imag e4311| |imag e4312|
(4) Magnet Setup:	B = 1 T
(5) Experiment Setup:	T 1 MΩ 55
(6) Lock-In Setup:	Sens: 20mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:	VH before changing the angle: 6.429mV
(8) Filename and data:	No File created

Aiming for Hall Voltage:

Voltage measured:

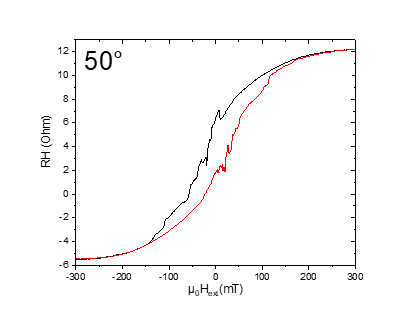

Samstag, 23. März 2019

09:15

(1) Structures measured	Plusses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	1-13 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 6.75kΩ 0 1 MΩ 50 1 6
(6) Lock-In Setup:	Sens: 50μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<m79_Plusses_50d eg_Hloop_down__Gradio_20190323_0 900_I1-1-13_I2-8-6_GBIP8-14-7_Vi n-2.5V_R11-1MO_R1-6.75kO_R13-0_R 21-1MO_C11-1_C21-6_T-30K_SR-0.01 -T-min_B-0.4T_gate-0V_down.dat>> <<m79_Plusse s_50deg_Hloop_up_Gradio_20190323 _0900_I1-1-13_I2-8-6_GBIP8-14-7_ Vin-2.5V_R11-1MO_R1-6.75kO_R13-0 _R21-1MO_C11-1_C21-6_T-30K_SR-0. 01-T-min_B-0.4T_gate-0V_up.dat>>

R12= 135/1000*50 = 6,75

Samstag, 23. März 2019

12:38

(1) Structures measured	Crosses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	2-12 8-6 (empty) 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 6kO 0 1 MΩ 55 1 6
(6) Lock-In Setup:	Sens: 20 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<m80_Cros ses_50deg_Hloop_down__Gradio_201 90323_1200_I1-2-12_I2-8-6_GBIP8- 14-7_Vin-2.5V_R11-1MO_R12-6kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR -0.01-T-min_B-0.4T_gate-0V.dat>> <<m80_Cr osses_50deg_Hloop_up__Gradio_201 90323_1200_I1-2-12_I2-8-6_GBIP8- 14-7_Vin-2.5V_R11-1MO_R12-6kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR -0.01-T-min_B-0.4T_gate-0V.dat>>

R12 = 120/1000*50 = 6

m81: Plusses_Crosses_empty_Hloop_50deg_1T/min

Samstag, 23. März 2019

15:31

(1) Structures measured	Plusses_Crosses_empty
(2) Measurement type	Hloop_parallel
(3) Cables Setup:	|imag e4476| |imag e4477| P lusses (C) |imag e4478| |imag e4479| C rosses (D) |imag e4480| |imag e4481| Empty |imag e4482| |imag e4483| Gate (9) |imag e4484| |imag e4485|
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 50
(6) Lock-In Setup:	Sens: 20 mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<m81_cros_plu_emp_50deg_Hloop _up_Parallel_20190323_1500_I-7-1 4_GB8-1-13_GB9-2-12_GB13-6-8_Vin -2.5V_R11-1MO_C11-1_C21-6_T-30K_ SR-0.5-T-min_B-1T_gate-0V_.dat>> <<m81_cros_plu_emp_50deg_Hloop_d own_Parallel_20190323_1500_I-7-1 4_GB8-1-13_GB9-2-12_GB13-6-8_Vin -2.5V_R11-1MO_C11-1_C21-6_T-30K_ SR-0.5-T-min_B-1T_gate-0V_.dat>>

C: Changing angle 95

Samstag, 23. März 2019

15:35

(1) Structures measured	Empty Cross
(2) Measurement type	Angle Changing
(3) Cables Setup:	|imag e4523| 14 - 7 |imag e4524| |imag e4525| Gate (9) |imag e4526| |imag e4527|
(4) Magnet Setup:	B = 1 T
(5) Experiment Setup:	T 1 MΩ 95
(6) Lock-In Setup:	Sens: 20mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:	VH before changing the angle: 7.166mV
(8) Filename and data:	No File created

Aiming for Hall Voltage:

Voltage measured:

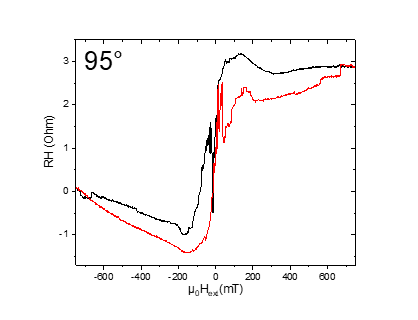

Samstag, 23. März 2019

16:11

(1) Structures measured	Plusses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	1-13 8-6 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 6,25 kΩ 0 1 MΩ 95 1 6
(6) Lock-In Setup:	Sens: 20μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<m82_Plusses_95deg _Hloop_down__Gradio_20190323_160 0_I1-1-13_I2-8-6_GBIP8-14-7_Vin- 2.5V_R11-1MO_R1-6.25kO_R13-0_R21 -1MO_C11-1_C21-6_T-30K_SR-0.01-T -min_B-0.75T_gate-0V_down_.dat>> <<m82_Plusses_9 5deg_Hloop_up__Gradio_20190323_1 600_I1-1-13_I2-8-6_GBIP8-14-7_Vi n-2.5V_R11-1MO_R1-6.25kO_R13-0_R 21-1MO_C11-1_C21-6_T-30K_SR-0.01 -T-min_B-0.75T_gate-0V_up_.dat>>

R12= 125/1000*50 = 6,25

Samstag, 23. März 2019

00:01

(1) Structures measured	Crosses
(2) Measurement type	Hloop_gradiometry
(3) Cables Setup:	2-12 8-6 (empty) 7 +——- —+————-+————-+ | Gate ( 9) | | | +——- —+————-+————-+
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 2kO 0 1 MΩ 95 1 6
(6) Lock-In Setup:	Sens: 20 μV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<m83_ Crosses_95deg_Hloop_up__Gradio_2 0190324_0000_I1-2-12_I2-8-6_GBIP 8-14-7_Vin-2.5V_R11-1MO_R12-2kO_ R13-0_R21-1MO_C11-1_C21-6_T-30K_ SR-0.01-T-min_B-1T_gate-0V.dat>> <<m83_Cr osses_95deg_Hloop_down__Gradio_2 0190324_0000_I1-2-12_I2-8-6_GBIP 8-14-7_Vin-2.5V_R11-1MO_R12-2kO_ R13-0_R21-1MO_C11-1_C21-6_T-30K_ SR-0.01-T-min_B-1T_gate-0V.dat>>

R12 = 40/1000*50 = 2

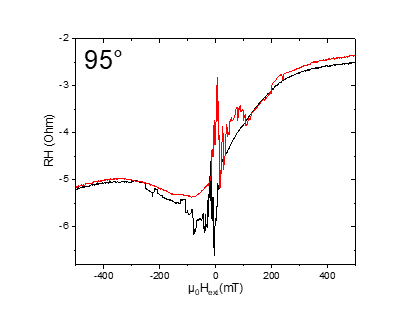

m84: Plusses_Crosses_empty_Hloop_95deg_1T/min

Sonntag, 24. März 2019

08:18

(1) Structures measured	Plusses_Crosses_empty
(2) Measurement type	Hloop_parallel
(3) Cables Setup:	|imag e4691| |imag e4692| P lusses (C) |imag e4693| |imag e4694| C rosses (D) |imag e4695| |imag e4696| Empty |imag e4697| |imag e4698| Gate (9) |imag e4699| |imag e4700|
(4) Magnet Setup:
(5) Experiment Setup:	T 1 MΩ 95
(6) Lock-In Setup:	Sens: 5 mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:
(8) Filename and data:	<<m84_cros_plu_emp_95deg_Hloop _down_Parallel_20190324_0800_I-7 -14_GB8-1-13_GB9-2-12_GB13-6-8_V in-2.5V_R11-1MO_C11-1_C21-6_T-30 K_SR-1-T-min_B-1T_gate-0V_.dat>> <<m84_cros_plu_emp_95deg_Hlo op_up_Parallel_20190324_0800_I-7 -14_GB8-1-13_GB9-2-12_GB13-6-8_V in-2.5V_R11-1MO_C11-1_C21-6_T-30 K_SR-1-T-min_B-1T_gate-0V_.dat>>

C: Changing angle 100

Sonntag, 24. März 2019

08:20

	Empty Cross
(2) Measurement type	Angle Changing
(3) Cables Setup:	|imag e4738| 14 - 7 |imag e4739| |imag e4740| Gate (9) |imag e4741| |imag e4742|
(4) Magnet Setup:	B = 1 T
(5) Experiment Setup:	T 1 MΩ 95
(6) Lock-In Setup:	Sens: 20mV τ: 1s Float/Ground: Ground AC/DC: AC A/A-B: A-B Reserve: Normal Source: Internal
(7) Important Notes:	VH before changing the angle: -1.075mV
(8) Filename and data:	No File created

Aiming for Hall Voltage:

Voltage measured:

m85: Plusses_Hloop_100deg

Sonntag, 24. März 2019

08:30

Angle of sensor θ	100
	0.75 10
	R12 = 105/1000*50 = 5,25
Period of measurement (min)	300
Notes
Data files	< <m85_Plusses_100deg_Hloop_up__Gradi o_20190324_0800_I1-1-13_I2-8-6_GBIP 8-14-7_Vin-2.5V_R11-1MO_R1-5.25kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_SR-0 .01-T-min_B-0.75T_gate-0V_up_.dat>> <<m85 _Plusses_100deg_Hloop_down__Gradio_ 20190324_0800_I1-1-13_I2-8-6_GBIP8- 14-7_Vin-2.5V_R11-1MO_R1-5.25kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR-0.0 1-T-min_B-0.75T_gate-0V_down_.dat>>

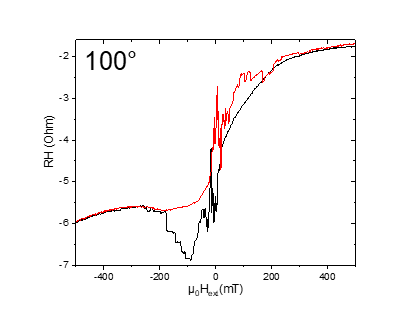

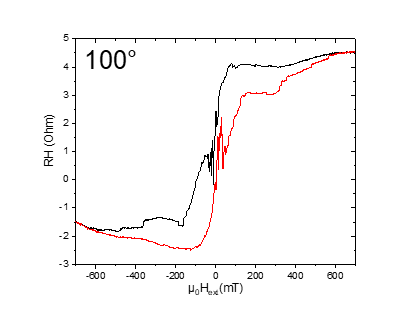

Plot

m86:Crosses_Hloop_100deg

24/03/2019 17:49

Angle of sensor θ	100
	0.75 10
	R12 = 45/1000*50 = 2,25
Period of measurement (min)	300
Notes
Data files	<<m86_Crosses_100deg_Hloop_down__Gr adio_20190324_1400_I1-2-12_I2-8-6_G BIP8-14-7_Vin-2.5V_R11-1MO_R12-2.25 kO_R13-0_R21-1MO_C11-1_C21-6_T-30K_ SR-0.01-T-min_B-0.75T_gate-0V.dat>> <<m86_Crosses_100deg_Hloop_up_Gr adio_20190324_1400_I1-2-12_I2-8-6_G BIP8-14-7_Vin-2.5V_R11-1MO_R12-2.25 kO_R13-0_R21-1MO_C11-1_C21-6_T-30K_ SR-0.01-T-min_B-0.75T_gate-0V.dat>>
Plot

m87: PlussesCrossesEmpty_Parallel Hloop_100deg

Sonntag, 24. März 2019

19:24

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	100
	1 1000
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files	<<m87_cros_plu_emp_ 100deg_Hloop_down_Parallel_20190324 _1900_I-7-14_GB8-1-13_GB9-2-12_GB13 -6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_T -30K_SR-1-T-min_B-1T_gate-0V_.dat>> <<m87_cros_plu_em p_100deg_Hloop_up_Parallel_20190324 _1900_I-7-14_GB8-1-13_GB9-2-12_GB13 -6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_T -30K_SR-1-T-min_B-1T_gate-0V_.dat>>
Plot

C: Changing angle 105

Sonntag, 24. März 2019

19:26

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

VH(max) (mV)	11,164
Angle of sensor calculator	V_H= Cos(105)*11,164 = -2,889455819524543 Cos(0)=1 Before changing: -1.906mV Measured: -2.888mV
	1
Period of measurement
Notes
Data files
Plot

m88: Plusses_Hloop_105deg

Sonntag, 24. März 2019

20:33

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	105
	1 10
	R12 = 52/1000*50 = 2,6
Period of measurement (min)	400
Notes	Waiting to fill He and listening to music :)
Data files	< <m88_Plusses_105deg_Hloop_down__Gra dio_20190324_2000_I1-1-13_I2-8-6_GB IP8-14-7_Vin-2.5V_R11-1MO_R1-2.6kO_ R13-0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.01-T-min_B-1T_gate-0V_down_.dat>> <<m88_Plusses_105deg_Hloop_up__G radio_20190324_2000_I1-1-13_I2-8-6_ GBIP8-14-7_Vin-2.5V_R11-1MO_R1-2.6k O_R13-0_R21-1MO_C11-1_C21-6_T-30K_S R-0.01-T-min_B-1T_gate-0V_up_.dat>>

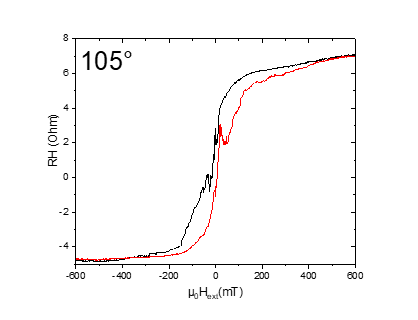

Plot

m89: Crosses_Hloop_105deg

Montag, 25. März 2019

08:10

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	105
	0.75 10
	R12 = 28/1000*50 = 1,4
Period of measurement (min)	300
Notes	check file names
Data files	<<m8 9_Crosses_105deg_Hloop_down__Gradio _20190325_0800_I1-1-13_I2-8-6_GBIP8 -14-7_Vin-2.5V_R11-1MO_R1-1.4kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR-0.0 1-T-min_B-0.75T_gate-0V_down_.dat>> <<m89_Crosses_105deg_Hloop_up__Grad io_20190325_0800_I1-1-13_I2-8-6_GBI P8-14-7_Vin-2.5V_R11-1MO_R1-1.4kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_SR-0 .01-T-min_B-0.75T_gate-0V_up_.dat>>

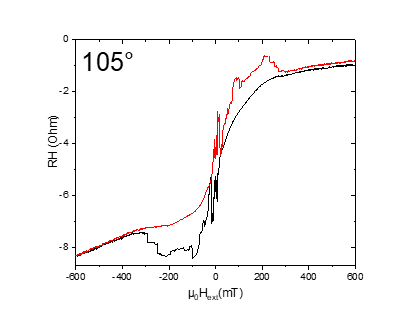

Plot

m90: PlussesCrossesEmpty_Parallel Hloop_105deg

Montag, 25. März 2019

13:00

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	105
	1 1000
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files	<<m90_cros_plu_emp_ 100deg_Hloop_down_Parallel_20190325 _1300_I-7-14_GB8-1-13_GB9-2-12_GB13 -6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_T -30K_SR-1-T-min_B-1T_gate-0V_.dat>> <<m90_cros_plu_em p_100deg_Hloop_up_Parallel_20190325 _1300_I-7-14_GB8-1-13_GB9-2-12_GB13 -6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_T -30K_SR-1-T-min_B-1T_gate-0V_.dat>>
Plot

C: Changing angle 110

Montag, 25. März 2019

13:48

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

VH(max) (mV)	11,164
Angle of sensor calculator	V_H= Cos(110)*11,164 = -3,818312880087765 Cos(0)=1 Before changing: -1.906mV Measured: -3.817mV
	1
Period of measurement
Notes
Data files
Plot

m91: Plusses_Hloop_110deg

19 March 2019

08:49

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	110
	0,6 10
	R12 = 103/1000*50 = 5,15
Period of measurement (min)	240m
Notes
Data files	<<m91 _Plusses_110deg_Hloop_down__Gradio_ 20190325_1400_I1-1-13_I2-8-6_GBIP8- 14-7_Vin-2.5V_R11-1MO_R12-5.15kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR-0. 01-T-min_B-0.6T_gate-0V_down_.dat>> < <m91_Plusses_110deg_Hloop_up__Gradi o_20190325_1400_I1-1-13_I2-8-6_GBIP 8-14-7_Vin-2.5V_R11-1MO_R12-5.15kO_ R13-0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.01-T-min_B-0.6T_gate-0V_up_.dat>>
Plot

m92: Crosses_Hloop_110deg_overload repeated at 22:00 :( check m93

Montag, 25. März 2019

18:30

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	100
	0.5 10
	R12 = 45/1000*50 = 2,25
Period of measurement (min)	200
Notes	Damit, there was overload!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
Data files	<<m92 _Crosses_110deg_Hloop_down__Gradio_ 20190325_1800_I1-1-13_I2-8-6_GBIP8- 14-7_Vin-2.5V_R11-1MO_R12-2.25kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR-0. 01-T-min_B-0.5T_gate-0V_down_.dat>> < <m92_Crosses_110deg_Hloop_up__Gradi o_20190325_1800_I1-1-13_I2-8-6_GBIP 8-14-7_Vin-2.5V_R11-1MO_R12-2.25kO_ R13-0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.01-T-min_B-0.5T_gate-0V_up_.dat>>
Plot

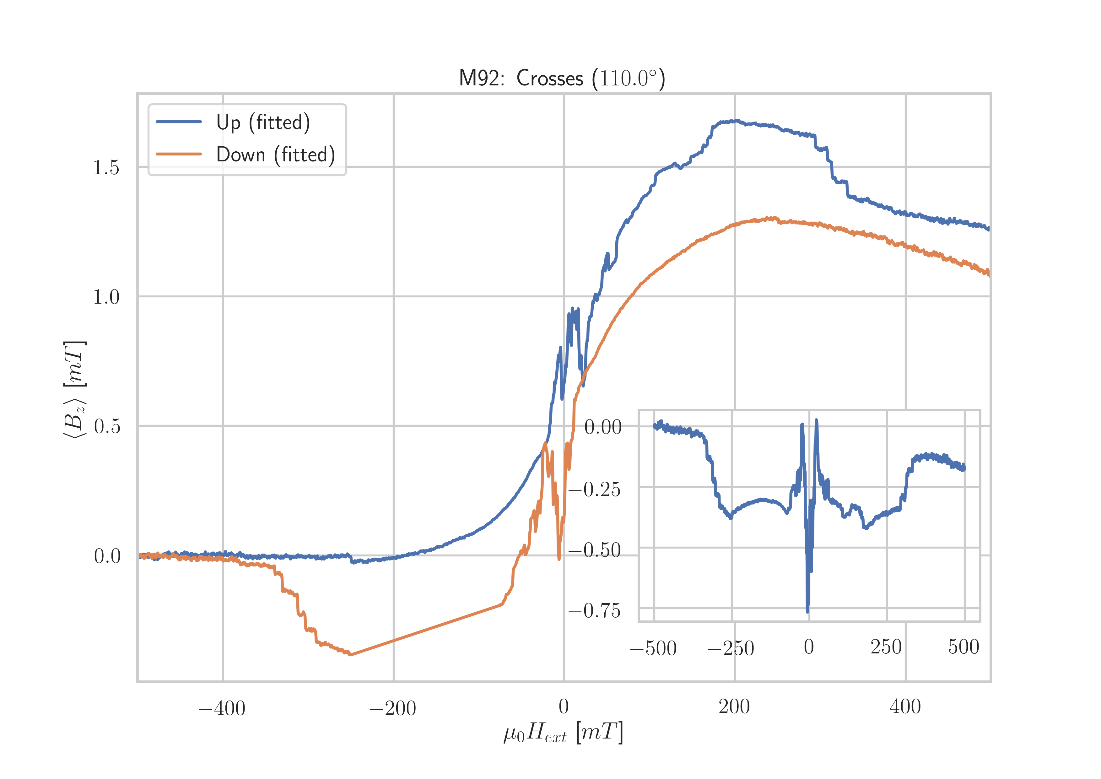

m93: Crosses_Hloop_110deg

Montag, 25. März 2019

22:20

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	100
	0.5 8
	R12 = 45/1000*50 = 2,25
Period of measurement (min)	200
Notes
Data files	<<m93_ Crosses_110deg_Hloop_down__Gradio_2 0190325_2200_I1-1-13_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-2.25kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR-0.0 08-T-min_B-0.5T_gate-0V_down_.dat>> << m93_Crosses_110deg_Hloop_up__Gradio _20190325_2200_I1-1-13_I2-8-6_GBIP8 -14-7_Vin-2.5V_R11-1MO_R12-2.25kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_SR-0 .008-T-min_B-0.5T_gate-0V_up_.dat>>

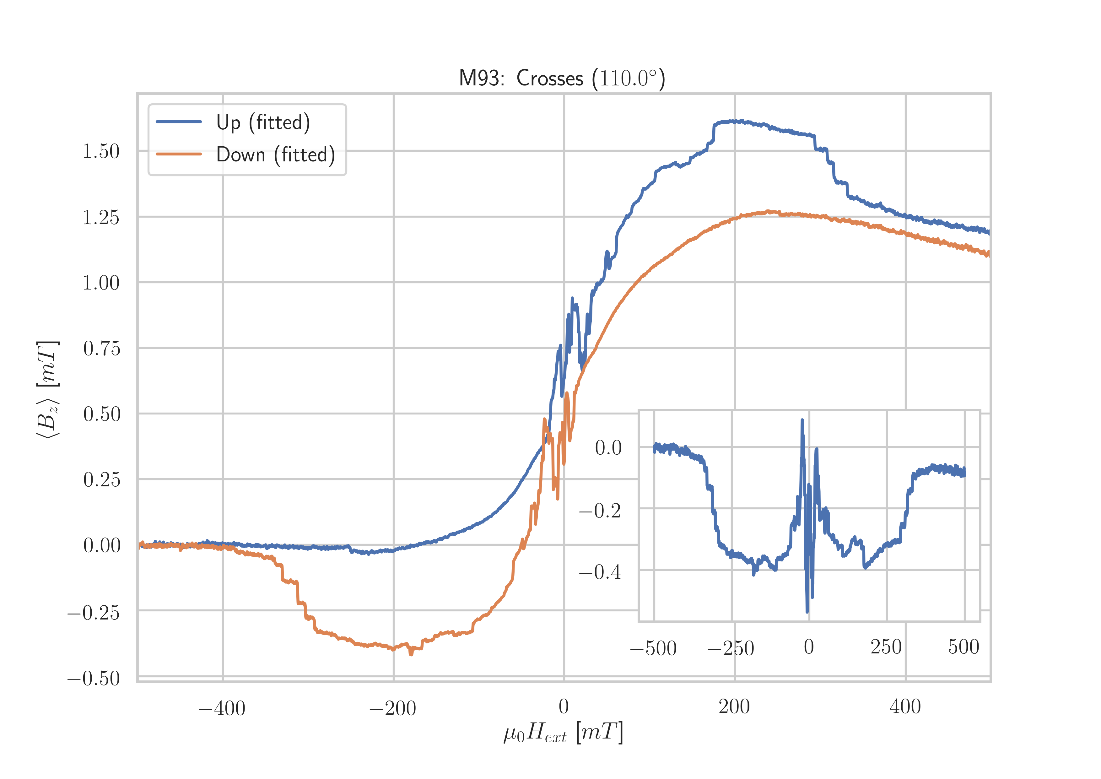

Plot

M94: PlussesCrossesEmpty_Parallel Hloop_110deg

Dienstag, 26. März 2019

07:26

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ
	1 1000
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files	<<m94_cros_plu_emp_ 100deg_Hloop_down_Parallel_20190326 _0700_I-7-14_GB8-1-13_GB9-2-12_GB13 -6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_T -30K_SR-1-T-min_B-1T_gate-0V_.dat>> <<m94_cros_plu_em p_100deg_Hloop_up_Parallel_20190326 _0700_I-7-14_GB8-1-13_GB9-2-12_GB13 -6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_T -30K_SR-1-T-min_B-1T_gate-0V_.dat>>
Plot

: Negative angles

Sens:	20 μV
τ:	1s
Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

(7) Important Notes:

C: Changing angle (-5 )

Dienstag, 26. März 2019

08:46

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

VH(max) (mV)	11,164
Angle of sensor calculator	V_H= Cos(-5)*11,164 = 11,12151760949625 Before changing: Measured:11.121mV
	1
Period of measurement
Notes
Data files
Plot

m95: Plusses_Hloop_(-5) deg

Dienstag, 26. März 2019

08:58

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-5
	0.75 10
	R12 = 73/1000*50 = 3,65
Period of measurement (min)	300
Notes
Data files	<<m95_P lusses_neg5deg_Hloop_down__Gradio_2 0190326_0900_I1-1-13_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-3.65kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR-0.0 1-T-min_B-0.75T_gate-0V_down_.dat>> <<m 95_Plusses_neg5deg_Hloop_up__Gradio _20190326_0900_I1-1-13_I2-8-6_GBIP8 -14-7_Vin-2.5V_R11-1MO_R12-3.65kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_SR-0 .01-T-min_B-0.75T_gate-0V_up_.dat>>

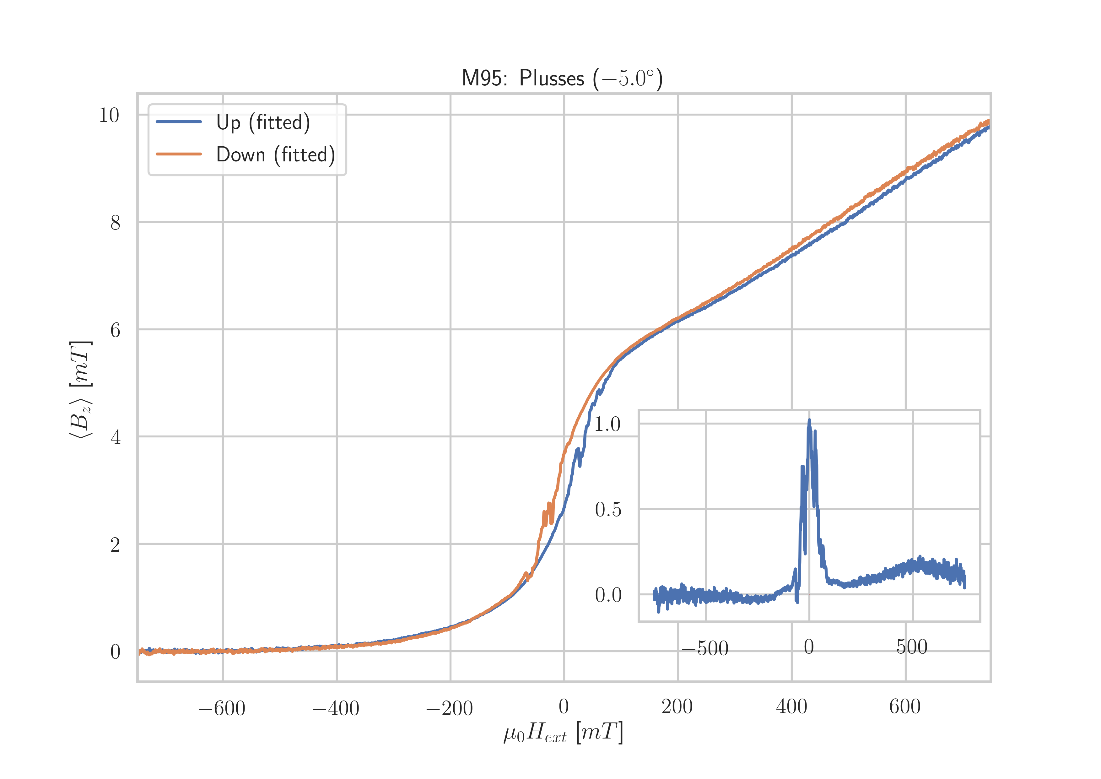

Plot

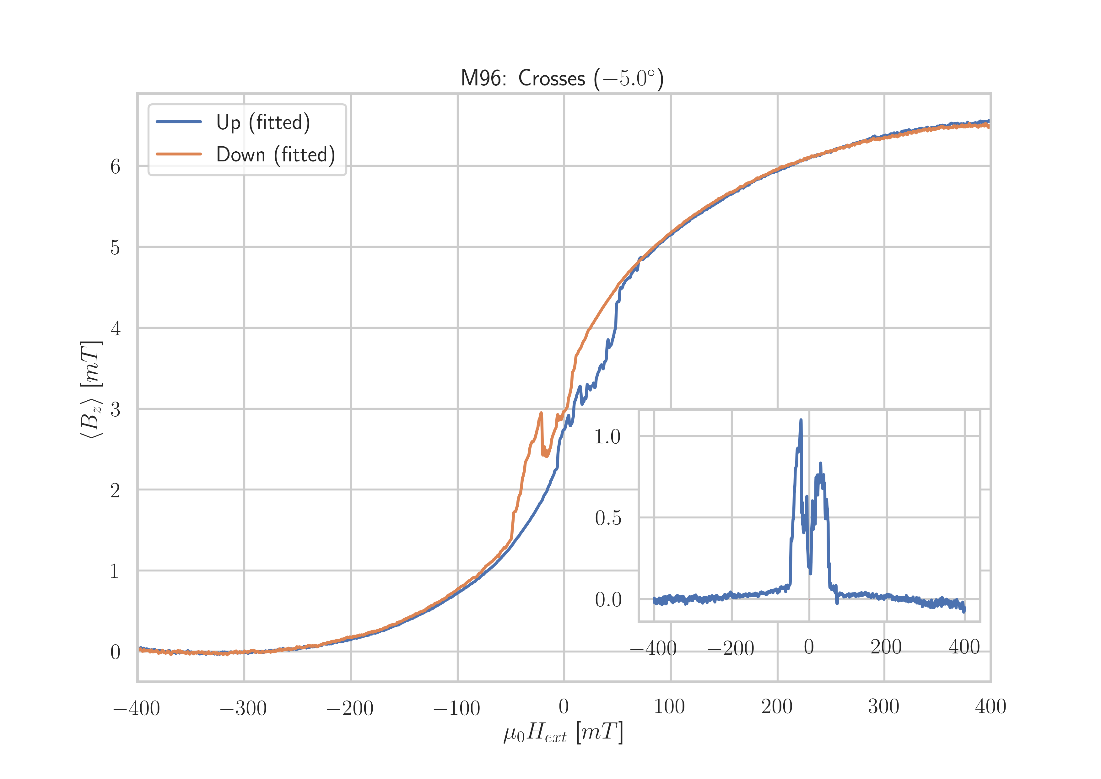

m96: Crosses_Hloop_(-5)deg

Dienstag, 26. März 2019

14:39

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-5
	0.4 10
	R12 = 65/1000*50 = 3,25
Period of measurement (min)	160
Notes
Data files	<<m9 6_Crosses_-5deg_Hloop_down__Gradio_ 20190326_1400_I1-1-13_I2-8-6_GBIP8- 14-7_Vin-2.5V_R11-1MO_R12-3.25kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR-0. 01-T-min_B-0.4T_gate-0V_down_.dat>> <<m96_Crosses_-5deg_Hloop_up__Gradi o_20190326_1400_I1-1-13_I2-8-6_GBIP 8-14-7_Vin-2.5V_R11-1MO_R12-3.25kO_ R13-0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.01-T-min_B-0.4T_gate-0V_up_.dat>>
Plot

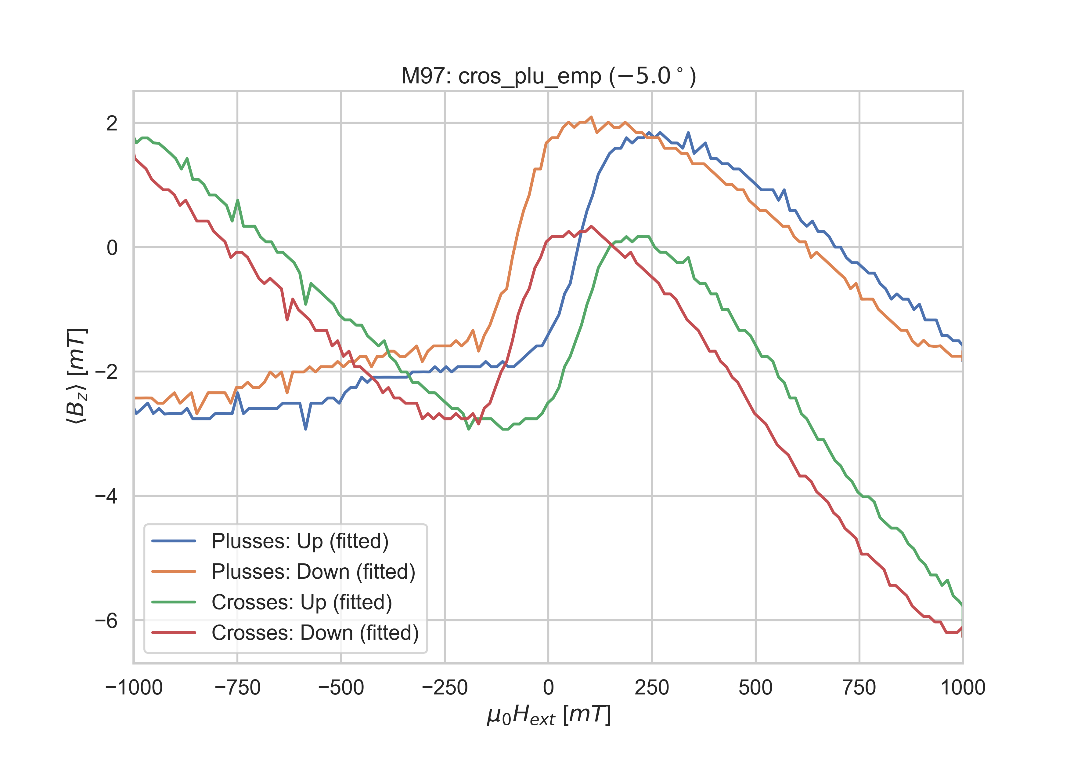

m97: PlussesCrossesEmpty_Parallel Hloop_(-5)deg

Dienstag, 26. März 2019

17:29

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-5
	1 1000
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files	<<m97_cros_plu_emp_ -5deg_Hloop_down_Parallel_20190326_ 1700_I-7-14_GB8-1-13_GB9-2-12_GB13- 6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_T- 30K_SR-1-T-min_B-1T_gate-0V__.dat>> <<m97_cros_plu_em p_-5deg_Hloop_up_Parallel_20190326_ 1700_I-7-14_GB8-1-13_GB9-2-12_GB13- 6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_T- 30K_SR-1-T-min_B-1T_gate-0V__.dat>>
Plot

C: Changing angle (-10)

19 March 2019

08:49

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

VH(max) (mV)	11,164
Angle of sensor calculator	V_H= Cos(-10)*11,164 = 10,99439375462829 Before changing: 10,4 Measured:10,992
	1
Period of measurement
Notes
Data files
Plot

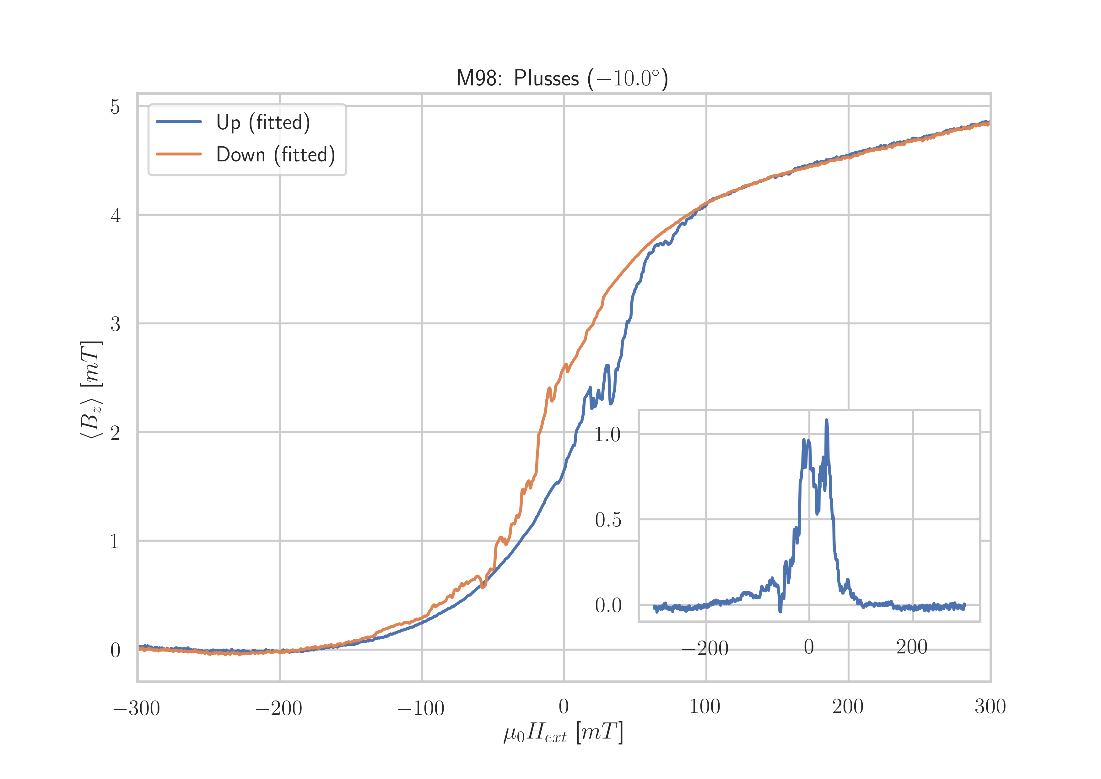

m98: Plusses_Hloop_(-10)deg

19 March 2019

08:49

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ
	0.3 10
	R12 = 155/1000*50 = 7,75
Period of measurement (min)	160
Notes
Data files	<<m9 8_Plusses_-10deg_Hloop_up__Gradio_2 0190326_1700_I1-1-13_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-7.75kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR-0.0 1-T-min_B-0.3T_gate-0V_up_A__.dat>> <<m9 8_Plusses_-10deg_Hloop_up__Gradio_2 0190326_1700_I1-1-13_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-7.75kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR-0.0 1-T-min_B-0.3T_gate-0V_up_B__.dat>>
Plot

m99: Crosses_Hloop_(-10)deg

Dienstag, 26. März 2019

21:07

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ
	0.3 10
	R12 = 128/1000*50 = 6,4
Period of measurement (min)	160
Notes
Data files	<<m9 9_Crosses_-10deg_Hloop_down__Gradio _20190326_2100_I1-2-12_I2-8-6_GBIP8 -14-7_Vin-2.5V_R11-1MO_R12-6.4kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR-0. 01-T-min_B-0.3T_gate-0V_down_.dat>> <<m99_Crosses_-10deg_Hloop_up__Grad io_20190326_2100_I1-2-12_I2-8-6_GBI P8-14-7_Vin-2.5V_R11-1MO_R12-6.4kO_ R13-0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.01-T-min_B-0.3T_gate-0V_up_.dat>>
Plot

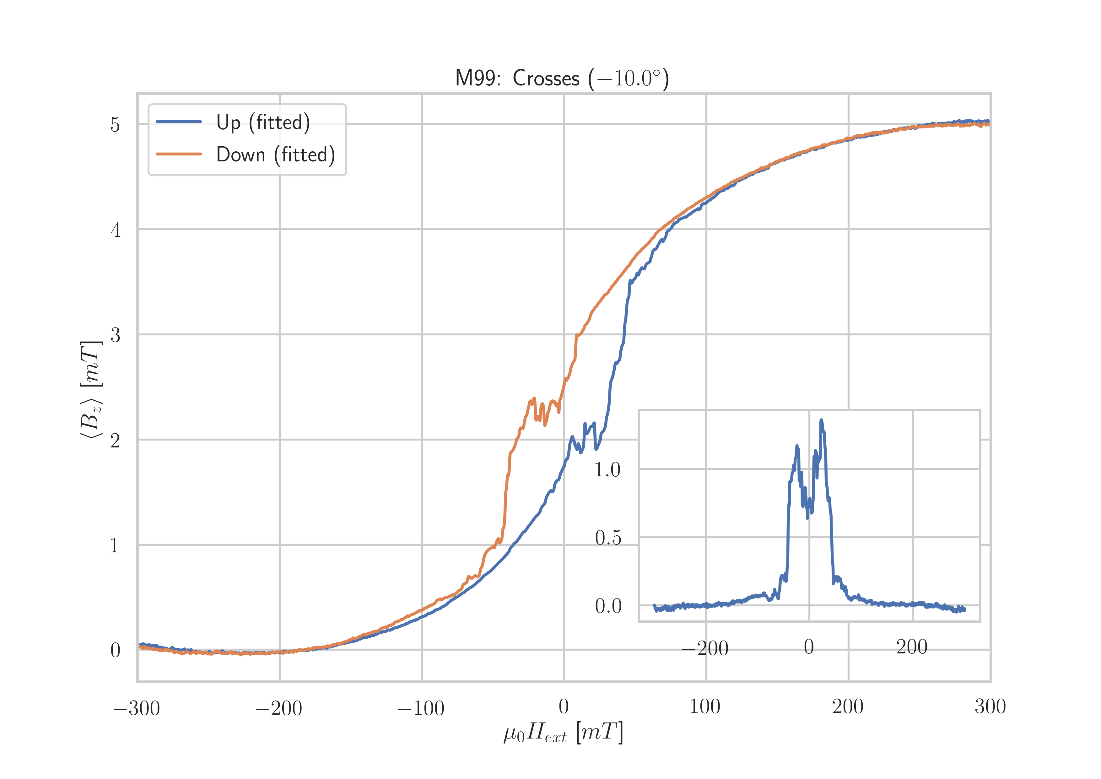

m100: PlussesCrossesEmpty_Parallel Hloop_(-10)deg

Mittwoch, 27. März 2019

07:47

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-15
	1 1000
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files	<<m100_cros_plu_emp _-10deg_Hloop_down_Parallel_2019032 7_0700_I-7-14_GB8-1-13_GB9-2-12_GB1 3-6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_ T-30K_SR-1-T-min_B-1T_gate-0V.dat>> <<m100_cros_plu_e mp_-10deg_Hloop_up_Parallel_2019032 7_0700_I-7-14_GB8-1-13_GB9-2-12_GB1 3-6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_ T-30K_SR-1-T-min_B-1T_gate-0V.dat>>

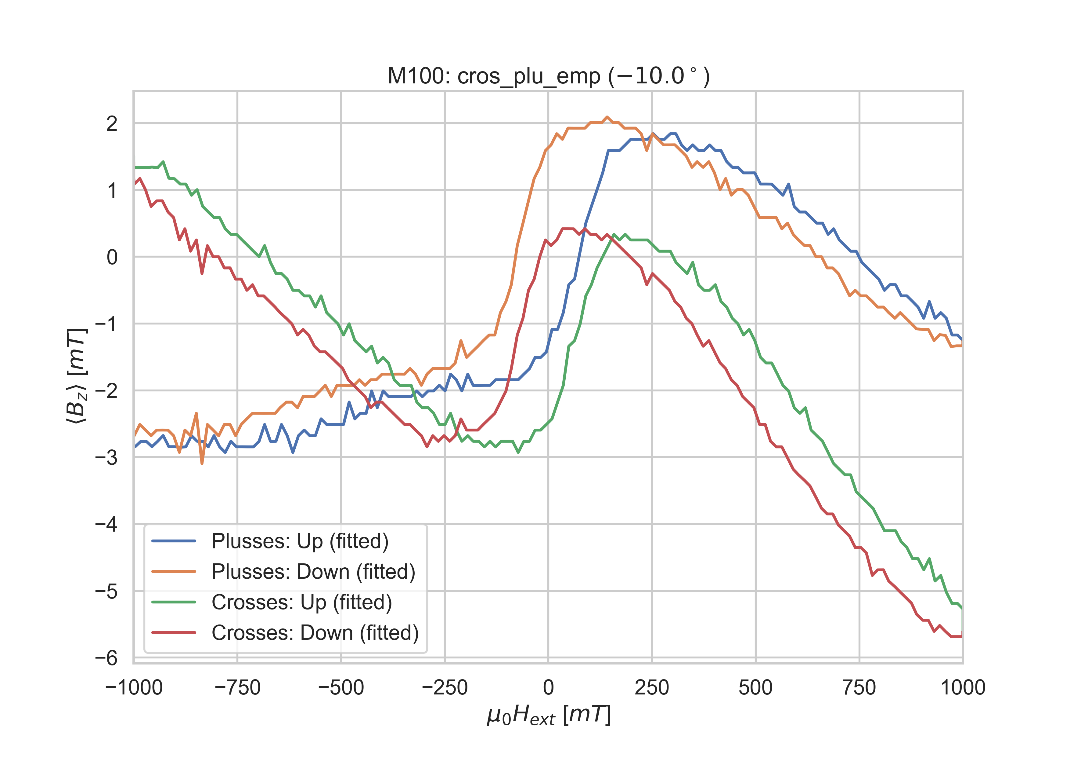

Plot

C: Changing angle (-15)

Mittwoch, 27. März 2019

07:55

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

VH(max) (mV)	11,164
Angle of sensor calculator	V_H= Cos(-15)*11,164 = 10,78359592469116 Before changing:10.568 Measured:10.783mV
	1
Period of measurement
Notes
Data files
Plot

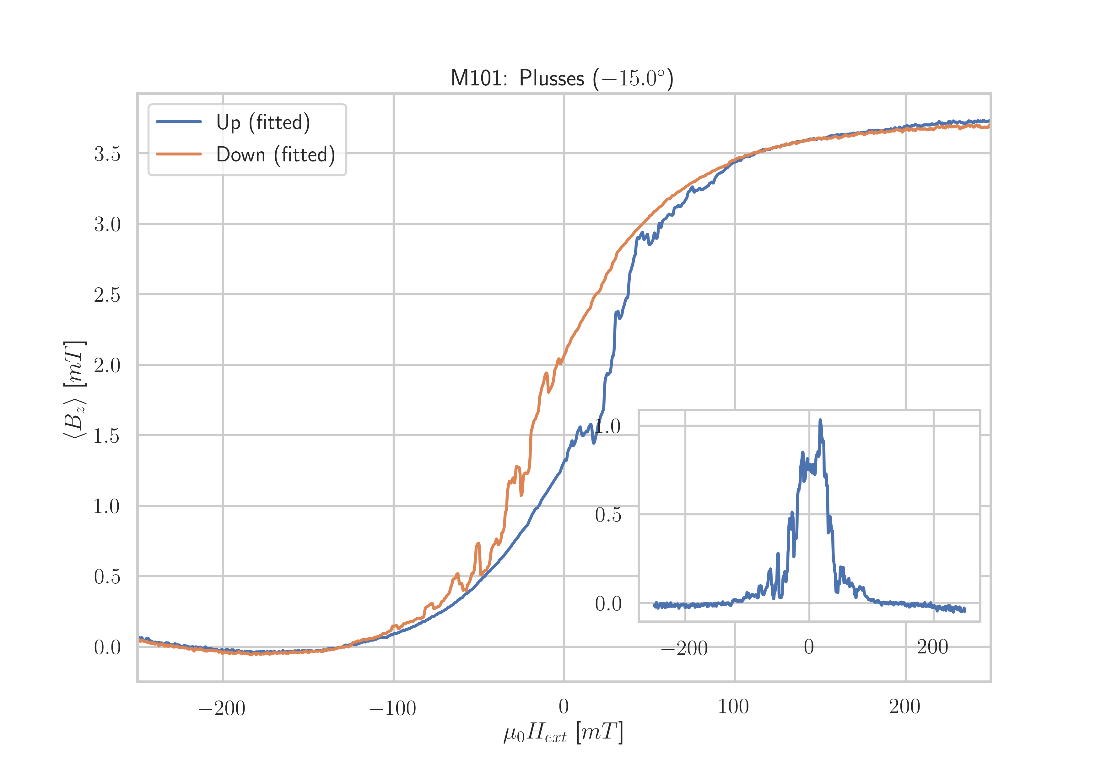

m101: Plusses_Hloop_(-15)deg

Mittwoch, 27. März 2019

07:55

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-15
	0.25 10
	176/1000*50=8,8
Period of measurement (min)	100
Notes
Data files	<<m101_ Plusses_-15deg_Hloop_down__Gradio_2 0190327_0800_I1-1-13_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-8.8kO_R13- 0_R21-1MO_C11-1_C21-6_T-30K_SR-0.01 -T-min_B-0.25T_gate-0V_down__.dat>> <<m 101_Plusses_-15deg_Hloop_up__Gradio _20190327_0800_I1-1-13_I2-8-6_GBIP8 -14-7_Vin-2.5V_R11-1MO_R12-8.8kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR-0. 01-T-min_B-0.25T_gate-0V_up__.dat>>
Plot

m102: Crosses_Hloop_(-15)deg

Mittwoch, 27. März 2019

08:49

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-15
	.25 10
	R12 = 164/1000*50 = 8,2
Period of measurement (min)	100
Notes
Data files	<<m102_ Crosses_-15deg_Hloop_down__Gradio_2 0190327_1000_I1-2-12_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-8.2kO_R13- 0_R21-1MO_C11-1_C21-6_T-30K_SR-0.01 -T-min_B-0.25T_gate-0V_down__.dat>> <<m 102_Crosses_-15deg_Hloop_up__Gradio _20190327_1000_I1-2-12_I2-8-6_GBIP8 -14-7_Vin-2.5V_R11-1MO_R12-8.2kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR-0. 01-T-min_B-0.25T_gate-0V_up__.dat>>

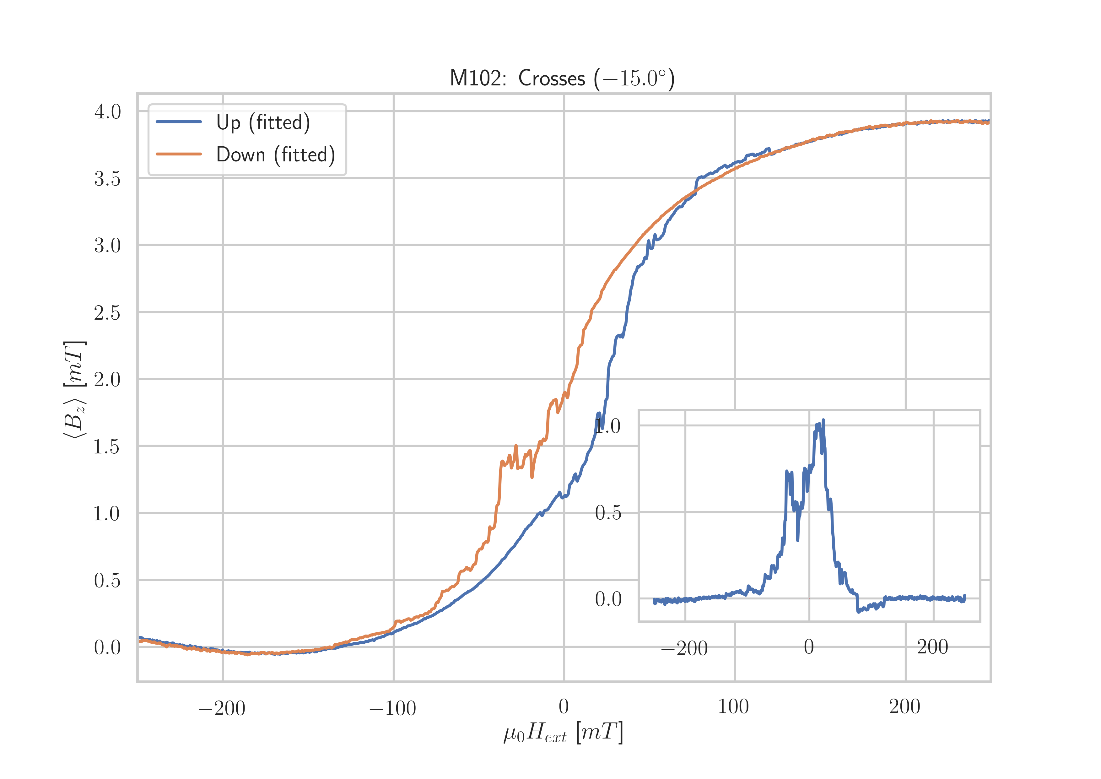

Plot

m103: PlussesCrossesEmpty_Parallel Hloop_(-15)deg

Mittwoch, 27. März 2019

12:23

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ
	1 1000
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files	<<m103_cros_plu_e mp_-15deg_Hloop_up_Parallel_2019032 7_1200_I-7-14_GB8-1-13_GB9-2-12_GB1 3-6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_ T-30K_SR-1-T-min_B-1T_gate-0V.dat>> <<m103_cros_plu_emp _-15deg_Hloop_down_Parallel_2019032 7_1200_I-7-14_GB8-1-13_GB9-2-12_GB1 3-6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_ T-30K_SR-1-T-min_B-1T_gate-0V.dat>>
Plot

C: Changing angle (-20)

Mittwoch, 27. März 2019

12:23

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

VH(max) (mV)	11,164
Angle of sensor calculator	V_H= Cos(-20)*11,164 = 10,49072841845388 Before changing:10,738 Measured:10,492
	1
Period of measurement
Notes
Data files
Plot

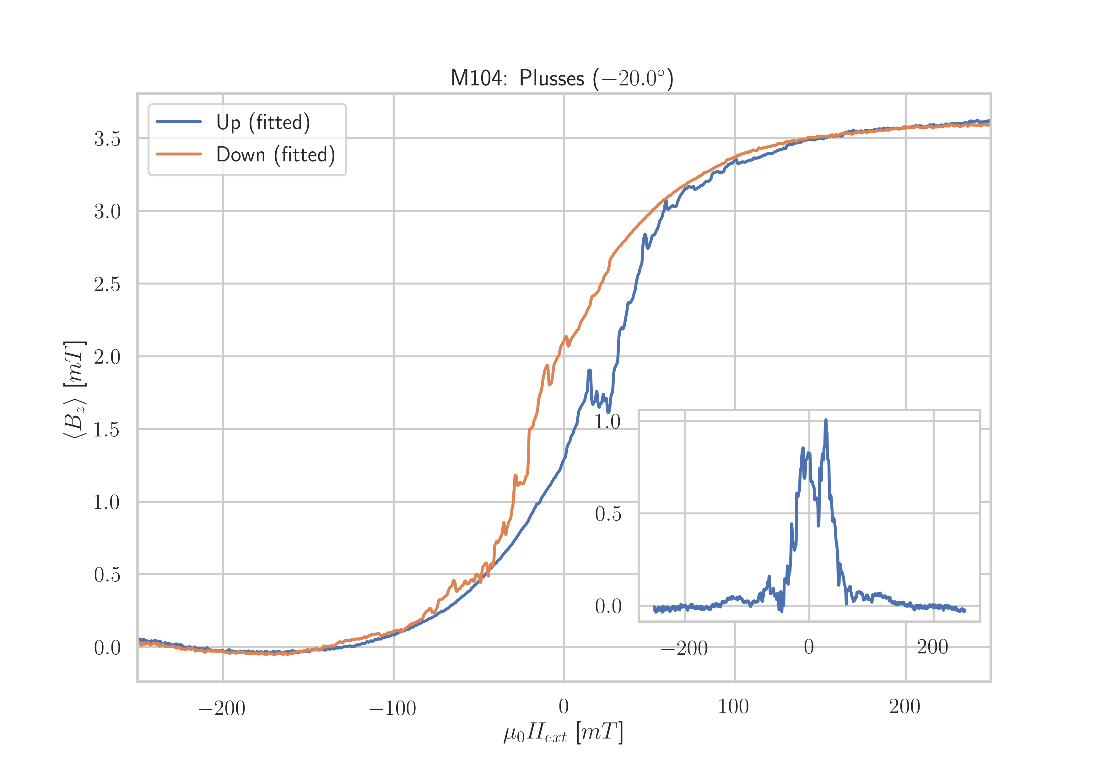

m104: Plusses_Hloop_(-20)deg

Mittwoch, 27. März 2019

12:23

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-20
	.25 10
	R12 = 200/1000*50 = 10
Period of measurement (min)	100
Notes
Data files	<<m104 _Plusses_-20deg_Hloop_down__Gradio_ 20190327_1200_I1-1-13_I2-8-6_GBIP8- 14-7_Vin-2.5V_R11-1MO_R12-10kO_R13- 0_R21-1MO_C11-1_C21-6_T-30K_SR-0.01 -T-min_B-0.25T_gate-0V_down__.dat>> << m104_Plusses_-20deg_Hloop_up__Gradi o_20190327_1200_I1-1-13_I2-8-6_GBIP 8-14-7_Vin-2.5V_R11-1MO_R12-10kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR-0. 01-T-min_B-0.25T_gate-0V_up__.dat>>
Plot

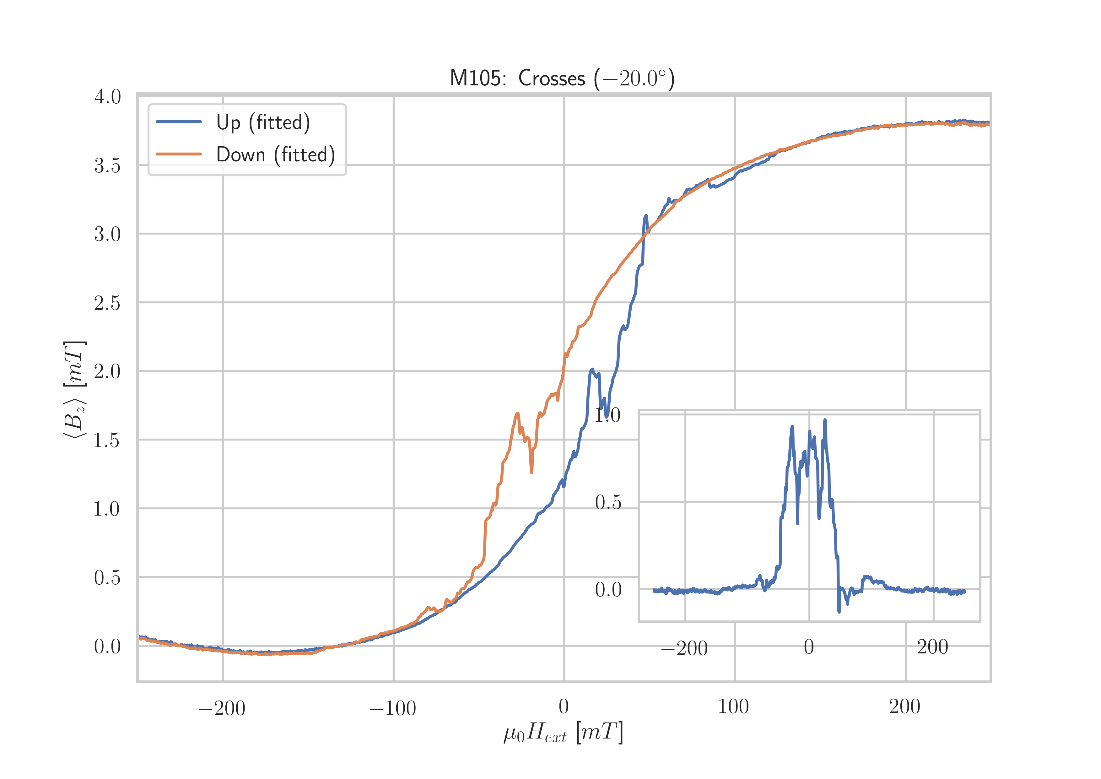

m105: Crosses_Hloop_(-20)deg

Mittwoch, 27. März 2019

14:14

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-20
	0.25 10
	R12 = 173/1000*50 = 8,65
Period of measurement (min)	100
Notes
Data files	<<m105_C rosses_-20deg_Hloop_down__Gradio_20 190327_1400_I1-2-12_I2-8-6_GBIP8-14 -7_Vin-2.5V_R11-1MO_R12-8.65kO_R13- 0_R21-1MO_C11-1_C21-6_T-30K_SR-0.01 -T-min_B-0.25T_gate-0V_down__.dat>> <<m1 05_Crosses_-20deg_Hloop_up__Gradio_ 20190327_1400_I1-2-12_I2-8-6_GBIP8- 14-7_Vin-2.5V_R11-1MO_R12-8.65kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR-0. 01-T-min_B-0.25T_gate-0V_up__.dat>>
Plot

m106: PlussesCrossesEmpty_Parallel Hloop_(-20)deg

19 March 2019

08:49

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-20
	1 1000
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files	<<m106_cros_plu_e mp_-20deg_Hloop_up_Parallel_2019032 7_1600_I-7-14_GB8-1-13_GB9-2-12_GB1 3-6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_ T-30K_SR-1-T-min_B-1T_gate-0V.dat>> <<m106_cros_plu_emp _-20deg_Hloop_down_Parallel_2019032 7_1600_I-7-14_GB8-1-13_GB9-2-12_GB1 3-6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_ T-30K_SR-1-T-min_B-1T_gate-0V.dat>>

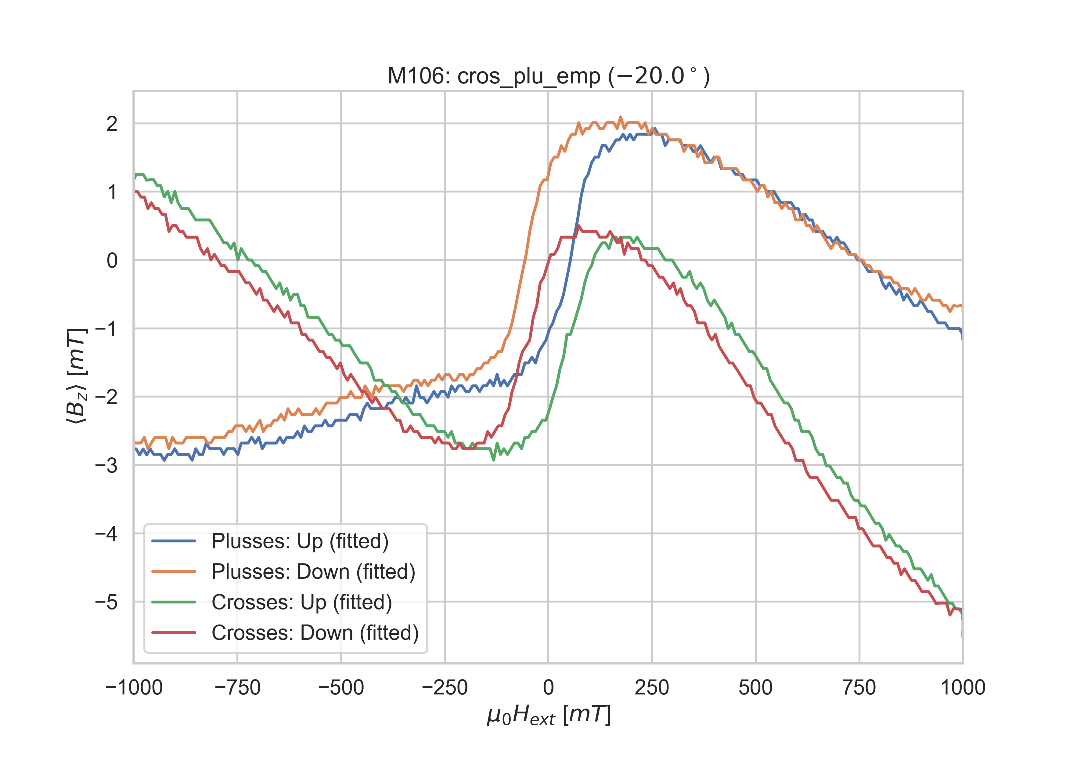

Plot

C: Changing angle (-25)

Mittwoch, 27. März 2019

16:00

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

VH(max) (mV)	11,164
Angle of sensor calculator	V_H= Cos(-25)*11,164 = 10,11802013447716 Before changing:10,43 mV Measured: 10,119 mV
	1
Period of measurement
Notes
Data files
Plot

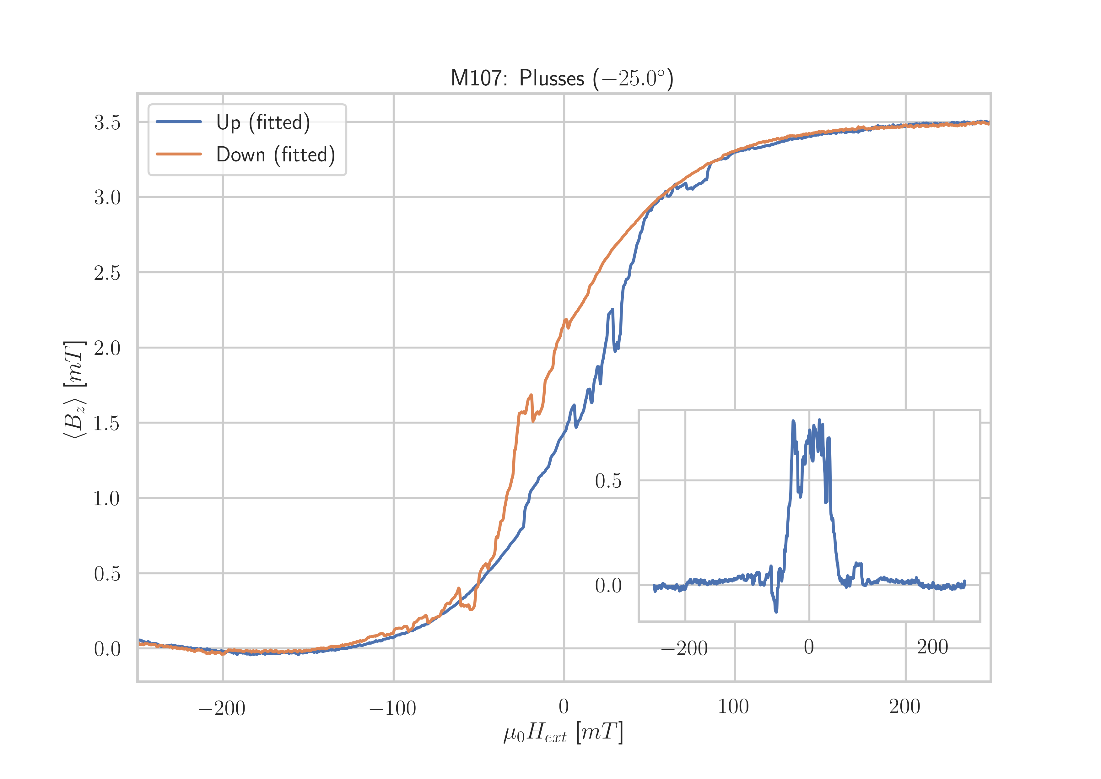

m107: Plusses_Hloop_(-25)deg

Mittwoch, 27. März 2019

17:00

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-25
	.25 10
	R12 = 200/1000*50 = 10
Period of measurement (min)	100
Notes
Data files	<<m1 07_Plusses_-25deg_Hloop_up__Gradio_ 20190327_1630_I1-1-13_I2-8-6_GBIP8- 14-7_Vin-2.5V_R11-1MO_R12-7.75kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR-0. 01-T-min_B-0.25T_gate-0V_up__.dat>> <<m107_ Plusses_-25deg_Hloop_down__Gradio_2 0190327_1630_I1-1-13_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-7.75kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR-0.0 1-T-min_B-0.3T_gate-0V_down__.dat>>
Plot

m108: Crosses_Hloop_(-25)deg

Mittwoch, 27. März 2019

19:32

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-25
	0.25 10
	R12 = 175/1000*50 = 8,75
Period of measurement (min)	100
Notes
Data files	<<m108_C rosses_-25deg_Hloop_down__Gradio_20 190327_1900_I1-2-12_I2-8-6_GBIP8-14 -7_Vin-2.5V_R11-1MO_R12-8.75kO_R13- 0_R21-1MO_C11-1_C21-6_T-30K_SR-0.01 -T-min_B-0.25T_gate-0V_down__.dat>> <<m1 08_Crosses_-25deg_Hloop_up__Gradio_ 20190327_1900_I1-2-12_I2-8-6_GBIP8- 14-7_Vin-2.5V_R11-1MO_R12-8.75kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR-0. 01-T-min_B-0.25T_gate-0V_up__.dat>>

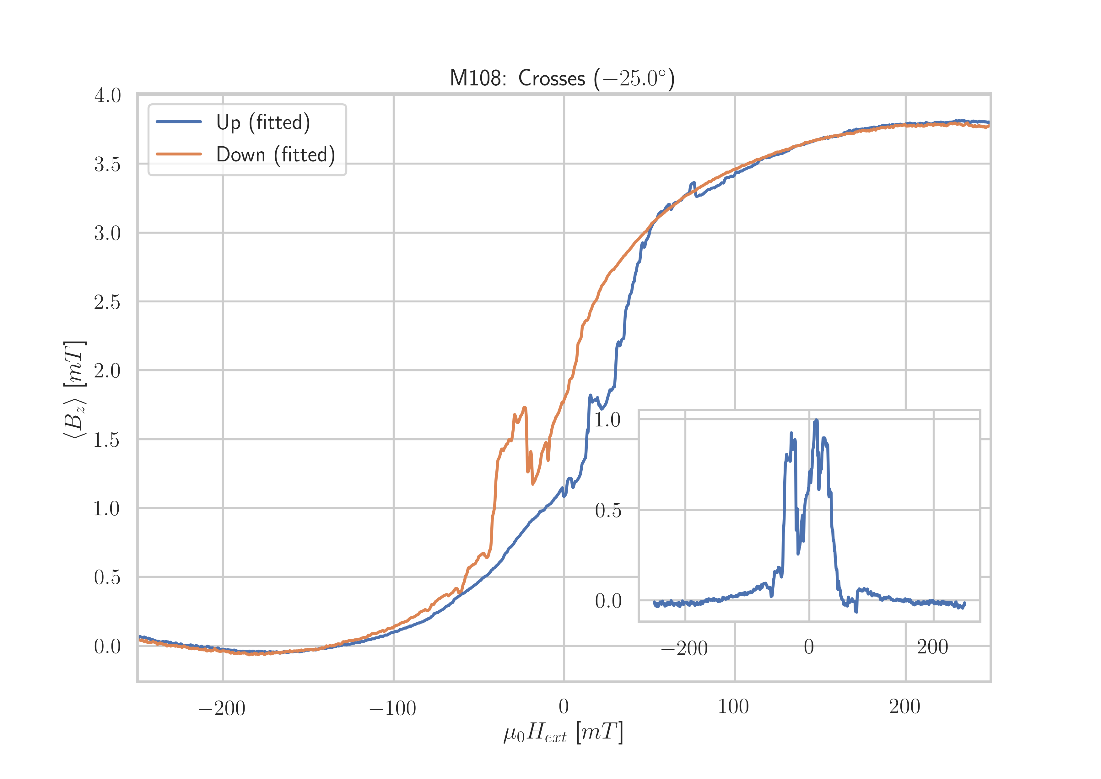

Plot

m109: PlussesCrossesEmpty_Parallel Hloop_(-25)deg

Mittwoch, 27. März 2019

21:24

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-25
	1 1000
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files	<<m109_cros_plu_emp_ -25deg_Hloop_down_Parallel_20190327 _2100_I-7-14_GB8-1-13_GB9-2-12_GB13 -6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_T -30K_SR-1-T-min_B-1T_gate-0V_.dat>> <<m109_cros_plu_em p_-25deg_Hloop_up_Parallel_20190327 _2100_I-7-14_GB8-1-13_GB9-2-12_GB13 -6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_T -30K_SR-1-T-min_B-1T_gate-0V_.dat>>
Plot	|(Bz)[mT] 丨 4 , 1000 0 2 C 乛 osses … Down (fitted) C 乛 osses … Up (fitted) Plusses … Down (fitted 一 Plusses … Up 冖 fitted) \| 750 , 500 M 一 09 … cros_plu_emp 冖 , 25b 。 一 , 250 UoHext 冖 m 0 250 500 750 1000|

C: Changing angle (-30)

Mittwoch, 27. März 2019

21:26

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

VH(max) (mV)	11,164
Angle of sensor calculator	V_H= Cos(-30)*11,164 = 9,668307607849474 Before changing:10.118 Measured:9.669mV
	1
Period of measurement
Notes
Data files
Plot

m110: Plusses_Hloop_(-30)deg

Mittwoch, 27. März 2019

21:36

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-30
	0.25 10
	R12 = 188/1000*50 = 9,4
Period of measurement (min)	100
Notes
Data files	<<m110_ Plusses_-30deg_Hloop_down__Gradio_2 0190327_2130_I1-1-13_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-9.4kO_R13- 0_R21-1MO_C11-1_C21-6_T-30K_SR-0.01 -T-min_B-0.25T_gate-0V_down__.dat>> <<m 110_Plusses_-30deg_Hloop_up__Gradio _20190327_2130_I1-1-13_I2-8-6_GBIP8 -14-7_Vin-2.5V_R11-1MO_R12-9.4kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR-0. 01-T-min_B-0.25T_gate-0V_up__.dat>>

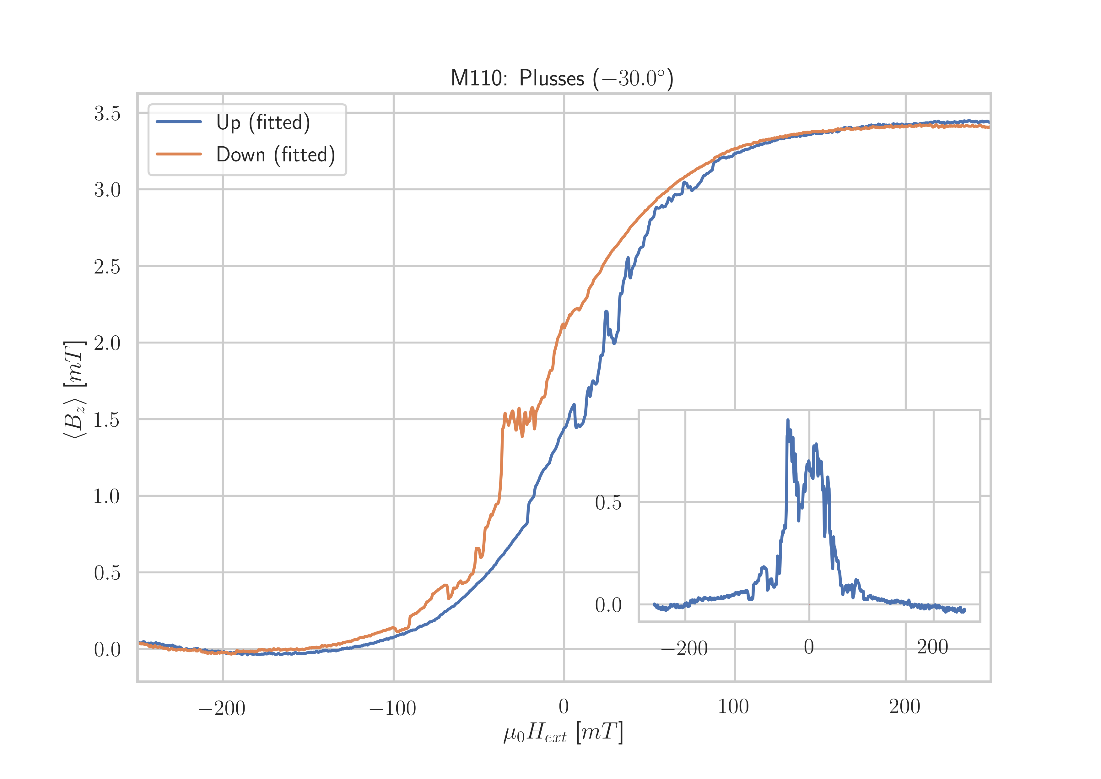

Plot

m111: Crosses_Hloop_(-30)deg

Donnerstag, 28. März 2019

07:13

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-30
	0.25 10
	R12 = 175/1000*50 = 8,75
Period of measurement (min)	100
Notes
Data files	<<m111_C rosses_-30deg_Hloop_down__Gradio_20 190328_0700_I1-2-12_I2-8-6_GBIP8-14 -7_Vin-2.5V_R11-1MO_R12-8.75kO_R13- 0_R21-1MO_C11-1_C21-6_T-30K_SR-0.01 -T-min_B-0.25T_gate-0V_down__.dat>> <<m1 11_Crosses_-30deg_Hloop_up__Gradio_ 20190328_0700_I1-2-12_I2-8-6_GBIP8- 14-7_Vin-2.5V_R11-1MO_R12-8.75kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR-0. 01-T-min_B-0.25T_gate-0V_up__.dat>>

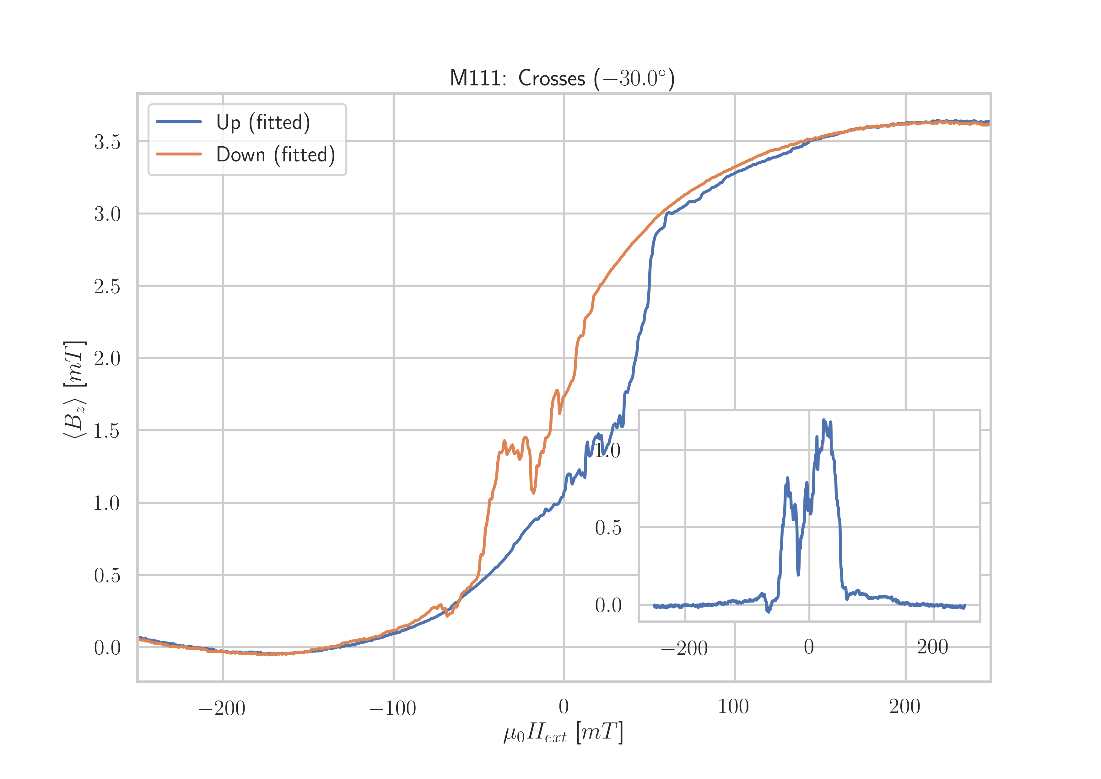

Plot

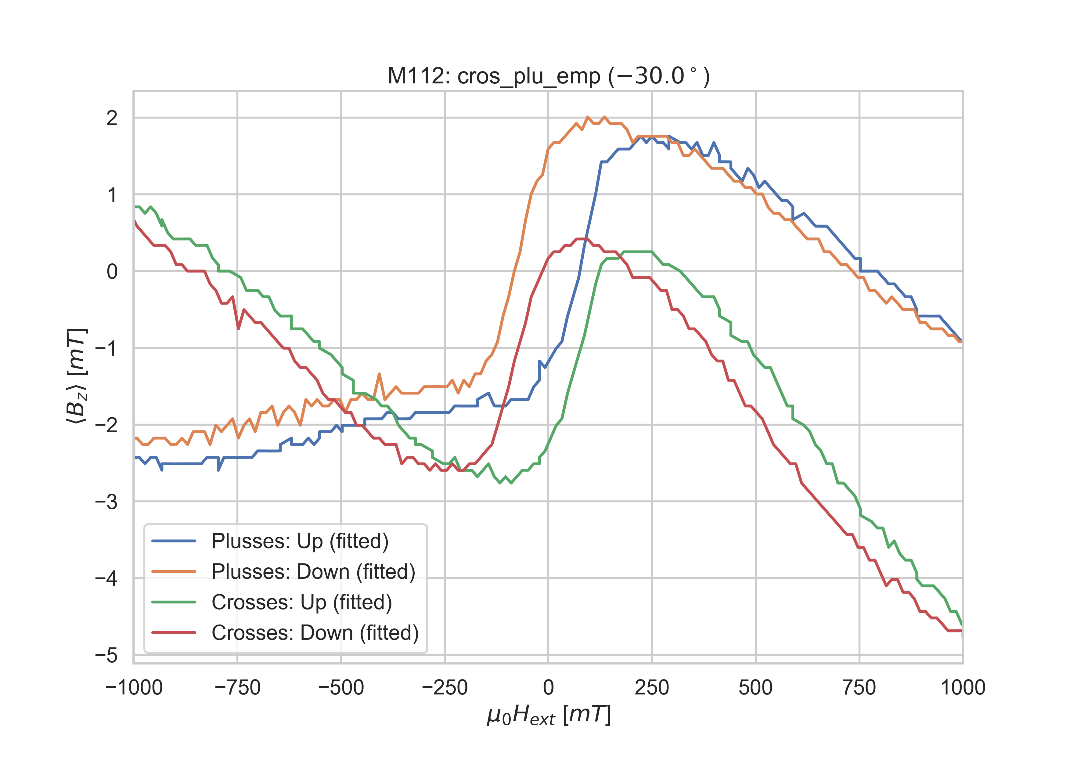

m112: PlussesCrossesEmpty_Parallel Hloop_(-30)deg

Donnerstag, 28. März 2019

08:30

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-30
	1 1000
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files	<<m112_cros_plu_emp_-3 0deg_Hloop_down_Parallel_20190328_0 900_I-7-14_GB8-1-13_GB9-2-12_GB13-6 -8_Vin-2.5V_R11-1MO_C11-1_C21-6_T-3 0K_SR-1-T-min_B-1T_gate-0V__a.dat>> <<m112_cros_plu_emp_ -30deg_Hloop_up_Parallel_20190328_0 900_I-7-14_GB8-1-13_GB9-2-12_GB13-6 -8_Vin-2.5V_R11-1MO_C11-1_C21-6_T-3 0K_SR-1-T-min_B-1T_gate-0V__a.dat>>
Plot

C: Changing angle (-35)

Donnerstag, 28. März 2019

09:13

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

VH(max) (mV)	11,164
Angle of sensor calculator	V_H= Cos(-35)*11,164 = 9,145013422442304 Before changing: 9.500mV Measured:9.145mV
	1
Period of measurement
Notes
Data files
Plot

m113: Plusses_Hloop_(-35)deg

Donnerstag, 28. März 2019

09:13

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-35
	0.25 10
	R12 = 191/1000*50 = 9,55
Period of measurement (min)	100
Notes
Data files	<<m113_P lusses_-35deg_Hloop_down__Gradio_20 190328_0900_I1-2-12_I2-8-6_GBIP8-14 -7_Vin-2.5V_R11-1MO_R12-9.55kO_R13- 0_R21-1MO_C11-1_C21-6_T-30K_SR-0.01 -T-min_B-0.25T_gate-0V_down__.dat>> <<m1 13_Plusses_-35deg_Hloop_up__Gradio_ 20190328_0900_I1-2-12_I2-8-6_GBIP8- 14-7_Vin-2.5V_R11-1MO_R12-9.55kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR-0. 01-T-min_B-0.25T_gate-0V_up__.dat>>

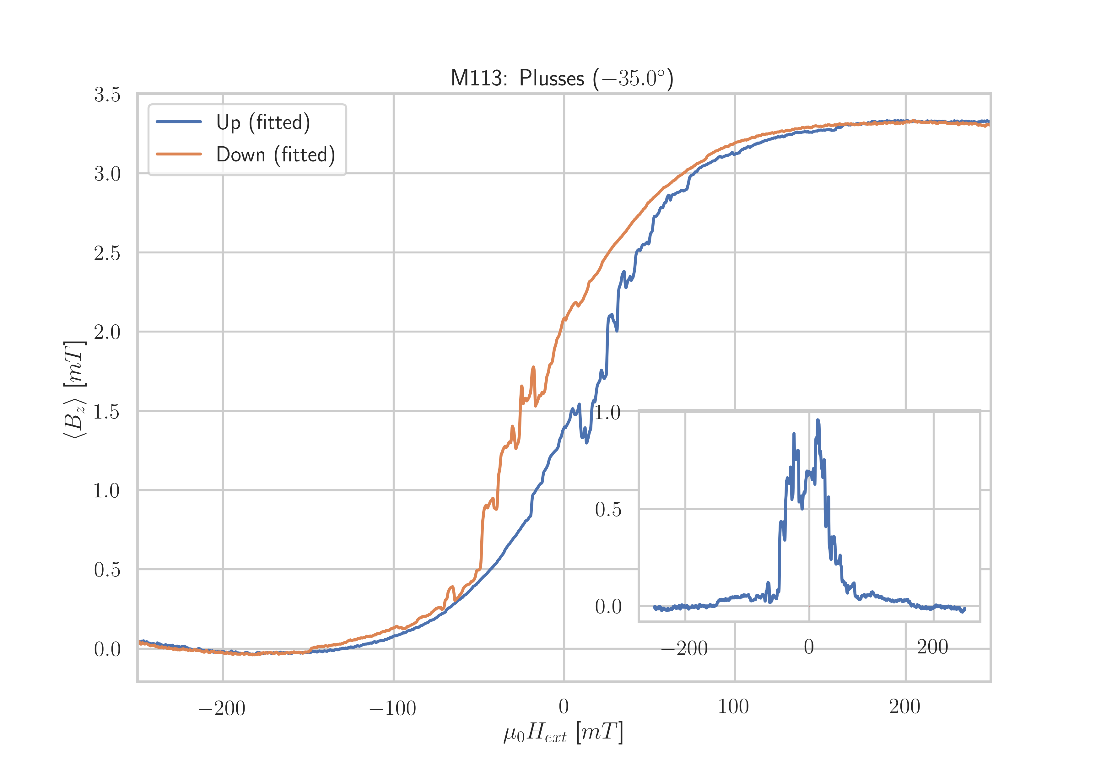

Plot

m114: Crosses_Hloop_(-35)deg

Donnerstag, 28. März 2019

11:09

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-35
	0.25 10
	R12 = 180/1000*50 = 9
Period of measurement (min)	100
Notes
Data files	<<m11 4_Crosses_-35deg_Hloop_down__Gradio _20190328_1100_I1-2-12_I2-8-6_GBIP8 -14-7_Vin-2.5V_R11-1MO_R12-9kO_R13- 0_R21-1MO_C11-1_C21-6_T-30K_SR-0.01 -T-min_B-0.25T_gate-0V_down__.dat>> < <m114_Crosses_-35deg_Hloop_up__Grad io_20190328_1100_I1-2-12_I2-8-6_GBI P8-14-7_Vin-2.5V_R11-1MO_R12-9kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR-0. 01-T-min_B-0.25T_gate-0V_up__.dat>>

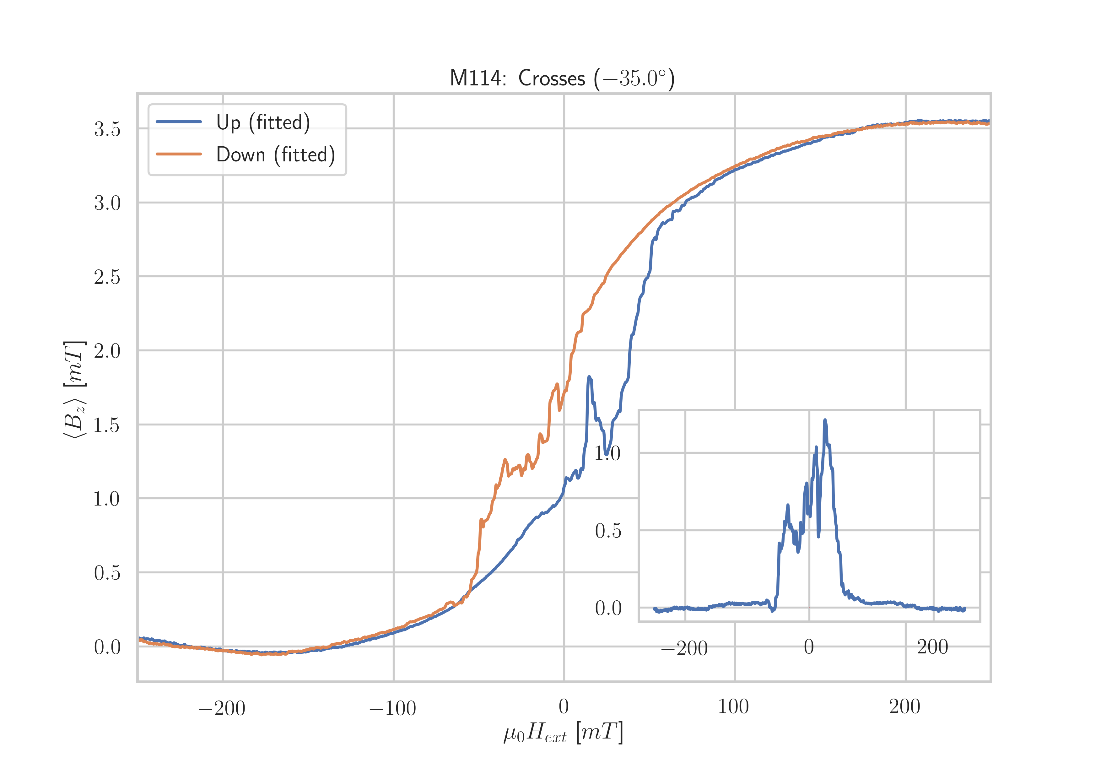

Plot

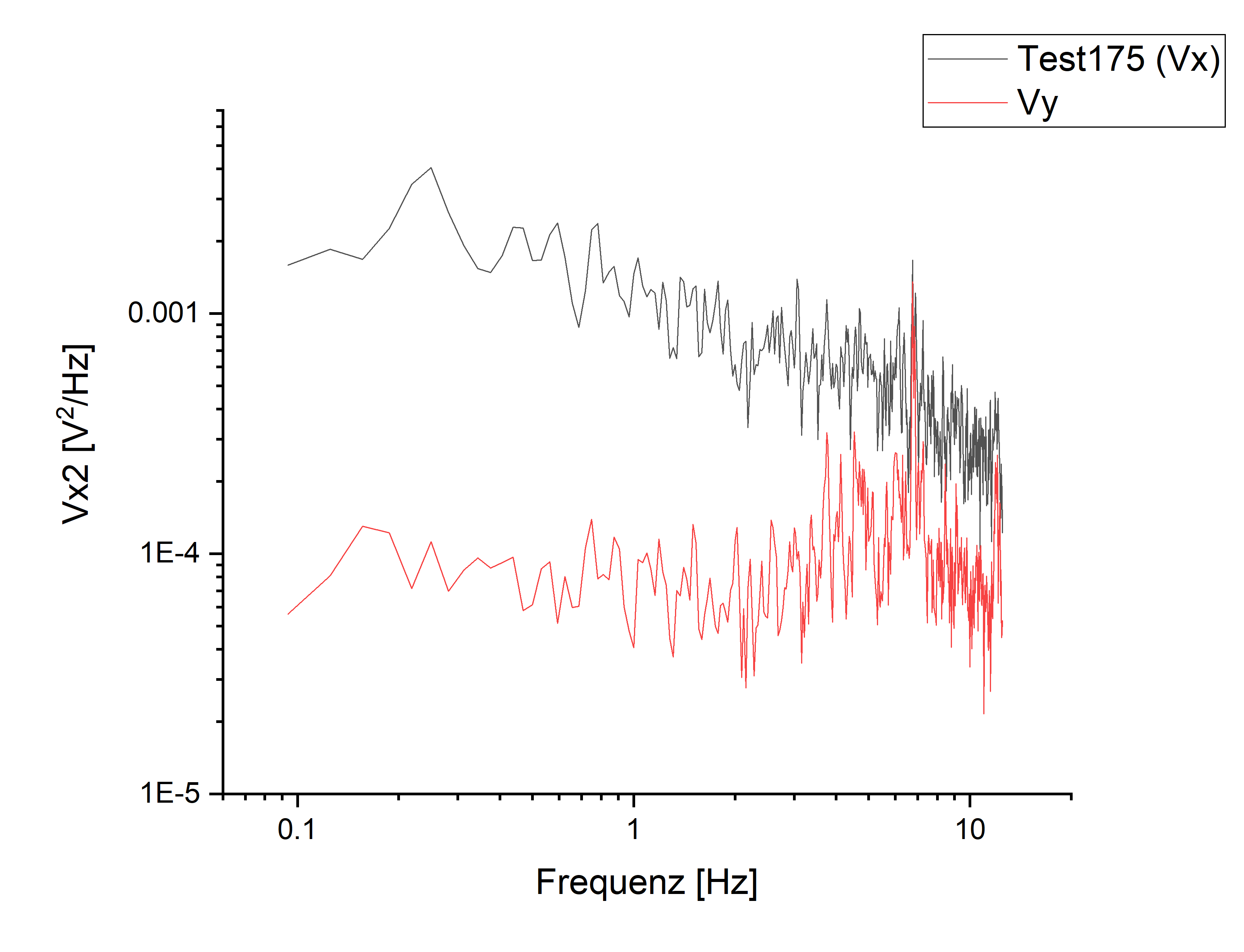

————— Testing Noise Measurements —————

Test Files:

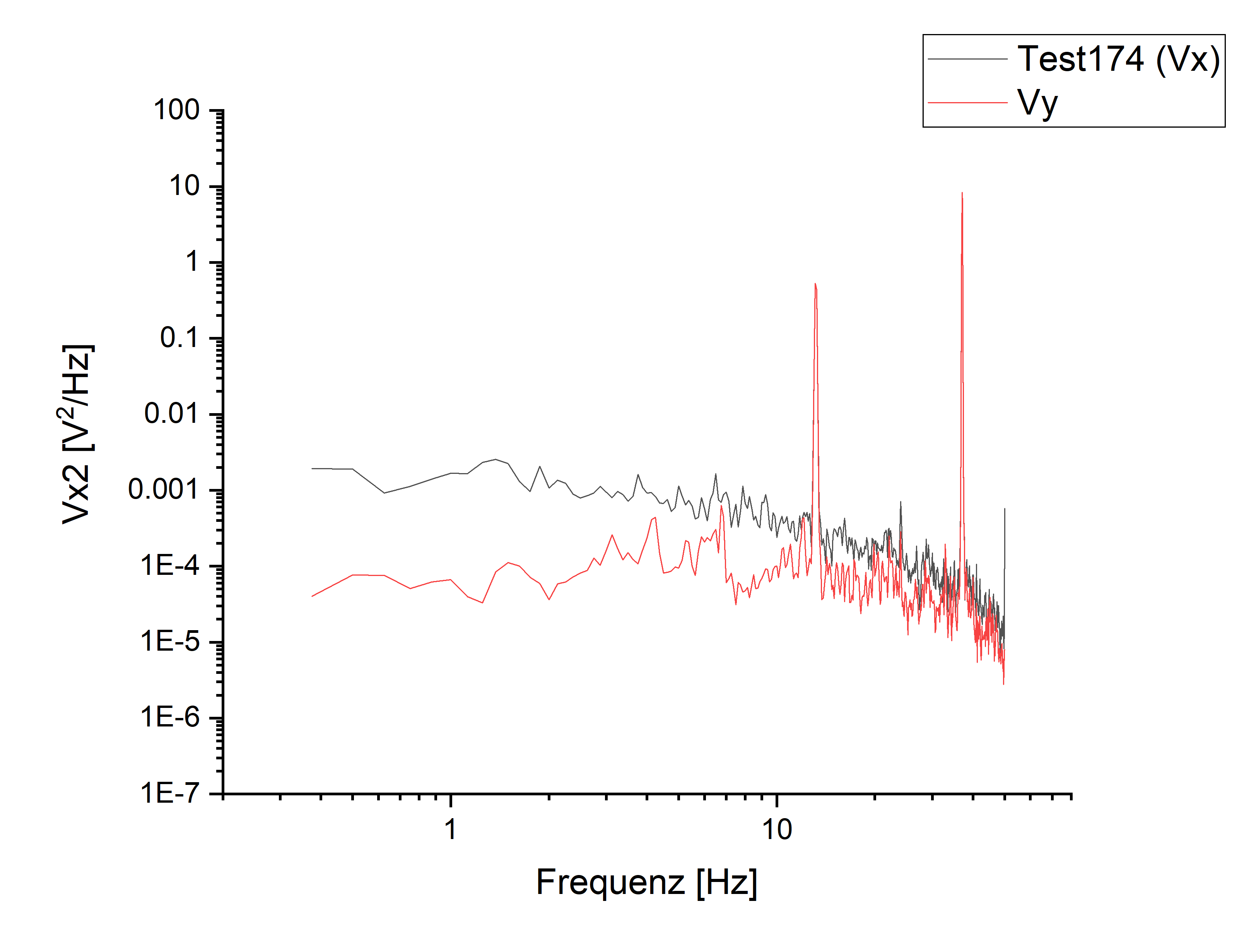

• 174

• 175

m115: PlussesCrossesEmpty_Parallel Hloop_(-35)deg

Donnerstag, 28. März 2019

08:49

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-35
	1 500
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files	<<m115_cros_plu_emp_-35 deg_Hloop_down_Parallel_20190328_15 00_I-7-14_GB8-1-13_GB9-2-12_GB13-6- 8_Vin-2.5V_R11-1MO_C11-1_C21-6_T-30 K_SR-1-T-min_B-1T_gate-0V____.dat>> <<m115_cros_plu_emp_- 35deg_Hloop_up_Parallel_20190328_15 00_I-7-14_GB8-1-13_GB9-2-12_GB13-6- 8_Vin-2.5V_R11-1MO_C11-1_C21-6_T-30 K_SR-1-T-min_B-1T_gate-0V____.dat>>
Plot

C: Changing angle (-40)_after testing the noise measurement setup ??? check later angle 45° to see the right VH(7.515mV)

Donnerstag, 28. März 2019

15:45

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

VH(max) (mV)	11,164
Angle of sensor calculator	V_H= Cos(-40)*11,164 = 8,55212016298027 Before changing: 10.940mV ?????? check it? it has been changed after doing noise measurement Measured: 8,551 mV
	1
Period of measurement
Notes
Data files
Plot

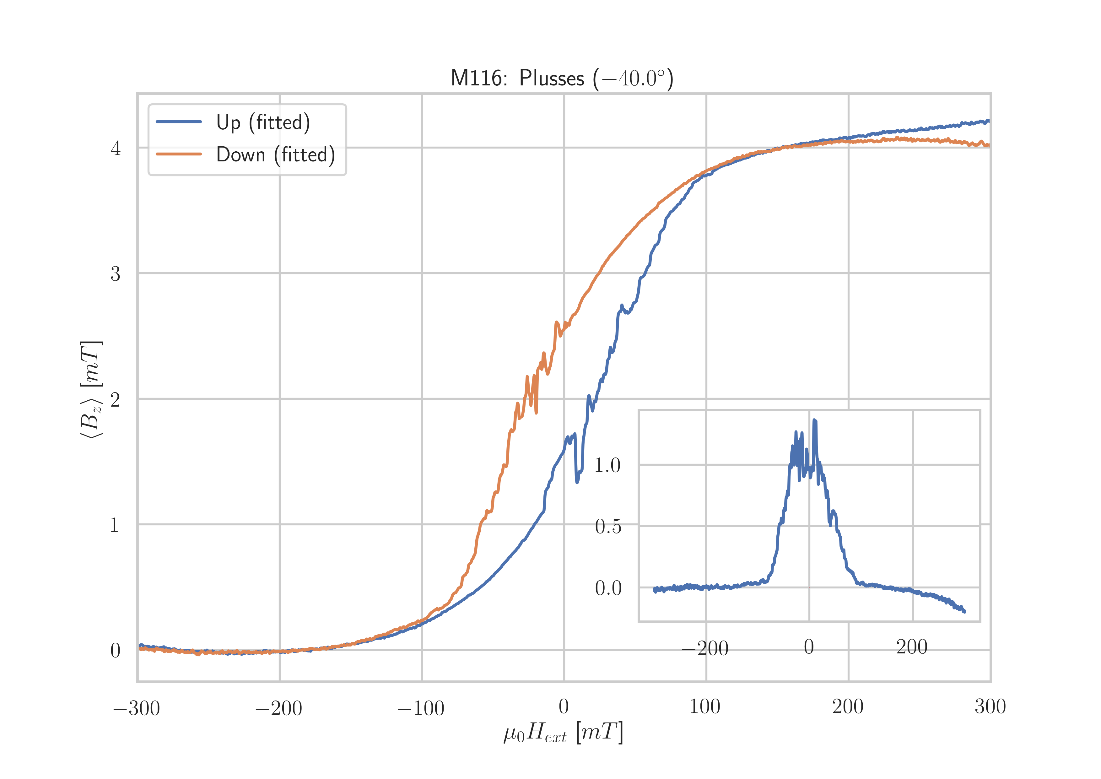

m116: Plusses_Hloop_(-40)deg~[47.69°]

Donnerstag, 28. März 2019

15:45

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-40
	0,3 10
	R12 = 156/1000*50 = 7,8
Period of measurement (min)	120
Notes
Data files	<< m116_Plusses_-40deg_Hloop_up__Gradi o_20190328_1600_I1-2-12_I2-8-6_GBIP 8-14-7_Vin-2.5V_R11-1MO_R12-7.8kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_SR-0 .01-T-min_B-0.3T_gate-0V_up__.dat>> <<m116 _Plusses_-40deg_Hloop_down__Gradio_ 20190328_1600_I1-2-12_I2-8-6_GBIP8- 14-7_Vin-2.5V_R11-1MO_R12-7.8kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR-0.0 1-T-min_B-0.3T_gate-0V_down__.dat>>
Plot

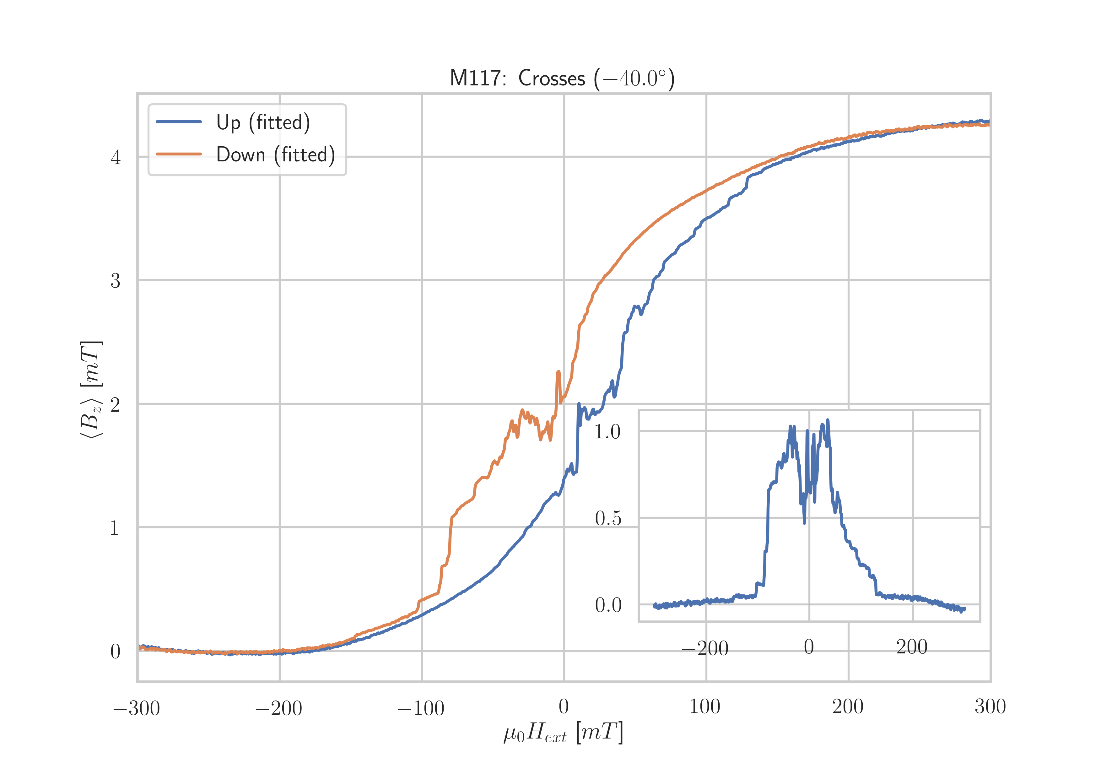

m117: Crosses_Hloop_(-40)deg~[47.69°]

Donnerstag, 28. März 2019

19:00

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-40
	0.3 10
	R12 = 128/1000*50 = 6,4
Period of measurement (min)	120
Notes
Data files	<<m1 17_Crosses_-40deg_Hloop_down__Gradi o_20190328_1900_I1-2-12_I2-8-6_GBIP 8-14-7_Vin-2.5V_R11-1MO_R12-6.4kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_SR-0 .01-T-min_B-0.3T_gate-0V_down_after noise test_.dat>> <<m117_Crosses_-40deg_Hloop_up__Gra dio_20190328_1900_I1-2-12_I2-8-6_GB IP8-14-7_Vin-2.5V_R11-1MO_R12-6.4kO _R13-0_R21-1MO_C11-1_C21-6_T-30K_SR -0.01-T-min_B-0.3T_gate-0V_up_after noise test_.dat>>
Plot

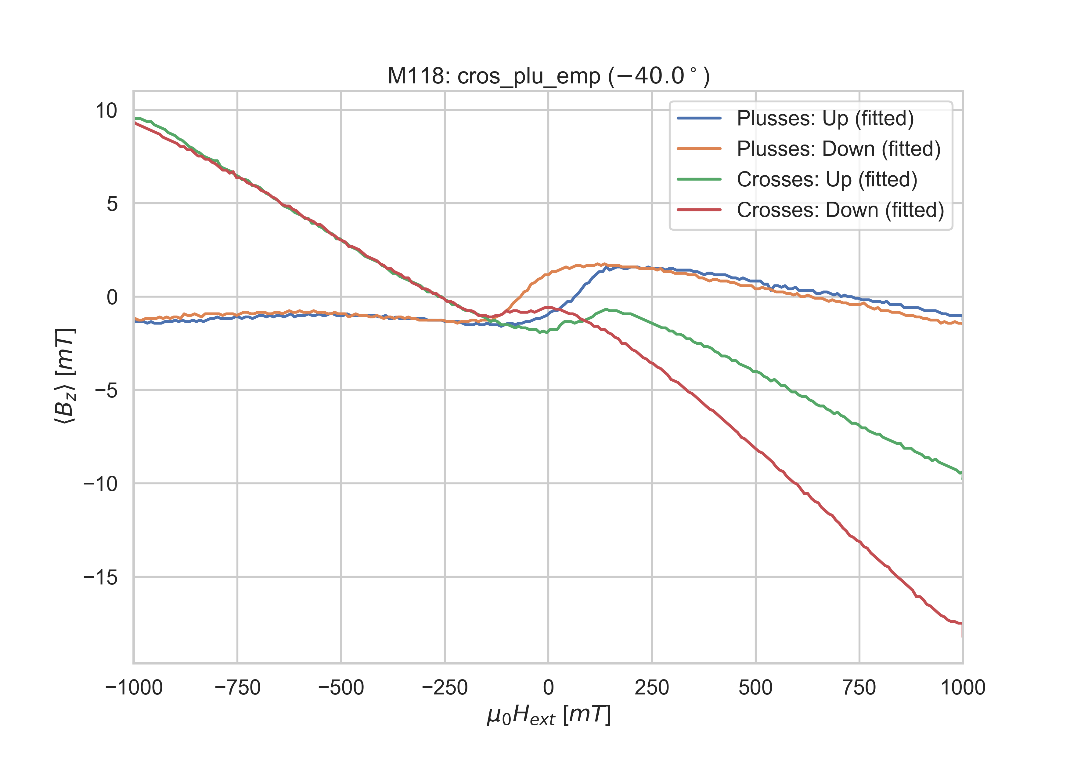

m118: PlussesCrossesEmpty_Parallel Hloop_(-40)deg~[47.69°]

Freitag, 29. März 2019

07:12

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-40
	1 1000
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files	<<m118_cros_plu_emp_-40 deg_Hloop_up_Parallel_20190329_0700 _I-7-14_GB8-1-13_GB9-2-12_GB13-6-8_ Vin-2.5V_R11-1MO_C11-1_C21-6_T-30K_ SR-0.5-T-min_B-1T_gate-0V____.dat>> <<m118_cros_plu_emp_-40de g_Hloop_down_Parallel_20190329_0700 _I-7-14_GB8-1-13_GB9-2-12_GB13-6-8_ Vin-2.5V_R11-1MO_C11-1_C21-6_T-30K_ SR-0.5-T-min_B-1T_gate-0V____.dat>>
Plot

C: Changing angle (-45)deg_look at VH

Freitag, 29. März 2019

07:14

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

VH(max) (mV)	11,164mV
Angle of sensor calculator	V_H= Cos(-45)*11,164 = 7,894140105166617 Before changing the angle: 7.515mV. Note this VH might refer to 47.69° Measured: 7.895mV
	1
Period of measurement
Notes
Data files
Plot

m119: Plusses_Hloop_(-45)deg

Freitag, 29. März 2019

07:17

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-45
	0.25 10
	R12 = 198/1000*50 = 9,9
Period of measurement (min)	100
Notes
Data files	<<m 119_Plusses_-45deg_Hloop_up__Gradio _20190329_0700_I1-1-13_I2-8-6_GBIP8 -14-7_Vin-2.5V_R11-1MO_R12-9.9kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR-0. 01-T-min_B-0.25T_gate-0V_up__.dat>> <<m119_ Plusses_-45deg_Hloop_down__Gradio_2 0190329_0700_I1-1-13_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-9.9kO_R13- 0_R21-1MO_C11-1_C21-6_T-30K_SR-0.01 -T-min_B-0.25T_gate-0V_down__.dat>>
Plot

m120: Crosses_Hloop_(-45)deg

Freitag, 29. März 2019

10:00

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-45
	0.25 10
	R12 = 210/1000*50 = 10,5
Period of measurement (min)	100
Notes
Data files	<<m 120_Crosses_-45deg_Hloop_up__Gradio _20190329_1000_I1-2-12_I2-8-6_GBIP8 -14-7_Vin-2.5V_R11-1MO_R12-10.5kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_SR-0 .01-T-min_B-0.25T_gate-0V_up_.dat>> <<m120_ Crosses_-45deg_Hloop_down__Gradio_2 0190329_1000_I1-2-12_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-10.5kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR-0.0 1-T-min_B-0.25T_gate-0V_down_.dat>>

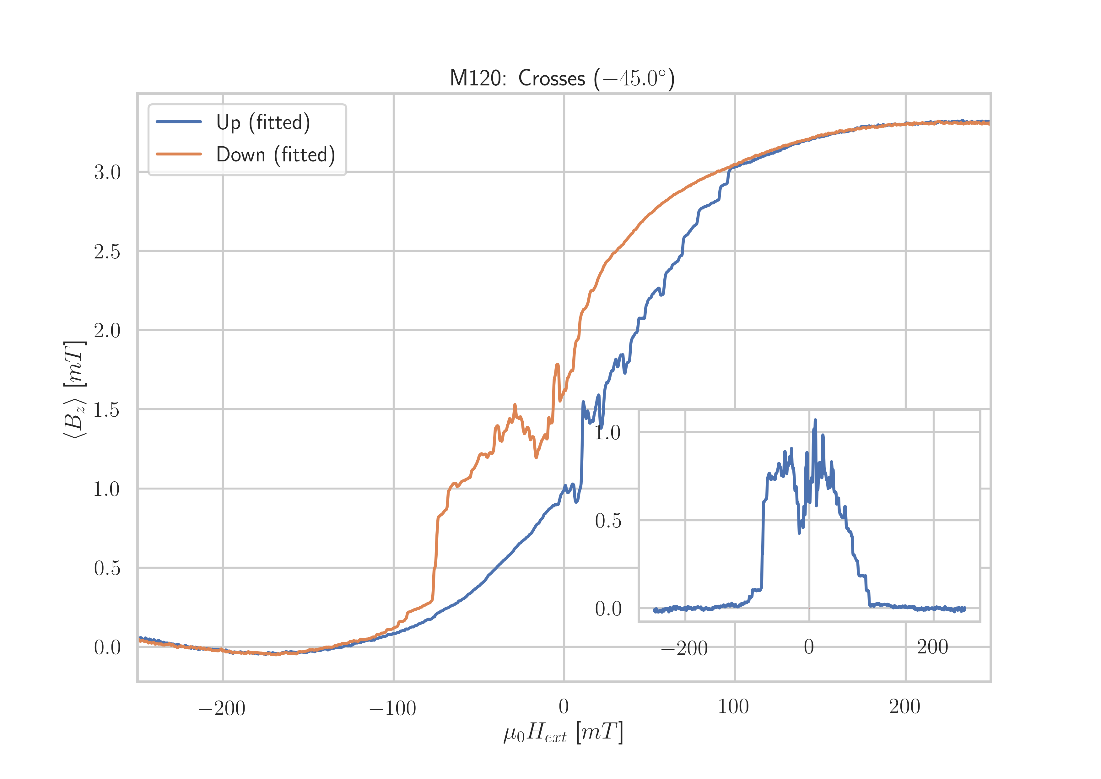

Plot

m121: PlussesCrossesEmpty_Parallel Hloop_(-45)deg

Freitag, 29. März 2019

11:58

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-45
	1 1000
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files	<<m121_cros_plu_emp_-45 deg_Hloop_down_Parallel_20190329_12 00_I-7-14_GB8-1-13_GB9-2-12_GB13-6- 8_Vin-2.5V_R11-1MO_C11-1_C21-6_T-30 K_SR-0.5-T-min_B-1T_gate-0V_a.dat>> <<m121_cros_plu_emp_- 45deg_Hloop_up_Parallel_20190329_12 00_I-7-14_GB8-1-13_GB9-2-12_GB13-6- 8_Vin-2.5V_R11-1MO_C11-1_C21-6_T-30 K_SR-0.5-T-min_B-1T_gate-0V_a.dat>>
Plot

C: Changing angle (-50)

Freitag, 29. März 2019

08:49

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

VH(max) (mV)	11,164mV
Angle of sensor calculator	V_H= Cos(-50)*11,164 = 7,176080874540525mV Before changing: 7,834 mV Measured: 7,175 mV
	1
Period of measurement
Notes
Data files
Plot

m122: Plusses_Hloop_(-50)deg

Freitag, 29. März 2019

12:00

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-50
	0.2 10
	R12 = 245/1000*50 = 12,25
Period of measurement (min)	80
Notes
Data files	<<m122_P lusses_-50deg_Hloop_down__Gradio_20 190329_1200_I1-1-13_I2-8-6_GBIP8-14 -7_Vin-2.5V_R11-1MO_R12-12.25kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR-0.0 1-T-min_B-0.2T_gate-0V_down__.dat>> <<m1 22_Plusses_-50deg_Hloop_up__Gradio_ 20190329_1200_I1-1-13_I2-8-6_GBIP8- 14-7_Vin-2.5V_R11-1MO_R12-12.25kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_SR-0 .01-T-min_B-0.2T_gate-0V_up__.dat>>

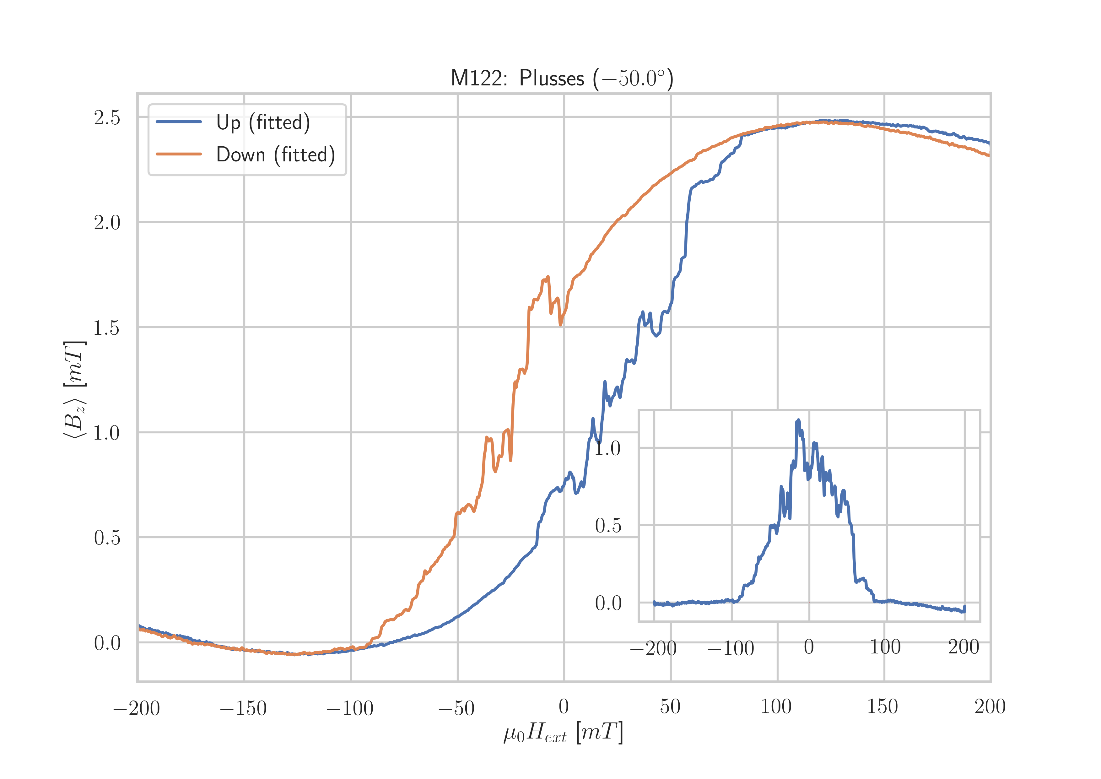

Plot

m123: Crosses_Hloop_deg(-50)deg

Dienstag, 19. März 2019

13:47

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-50
	0.2 10
	R12 = 245/1000*50 = 12,25
Period of measurement (min)	80
Notes
Data files	<<m123_ Crosses_-50deg_Hloop_down__Gradio_2 0190329_1400_I1-2-12_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-12.25kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR-0. 01-T-min_B-0.2T_gate-0V_down_.dat>> <<m 123_Crosses_-50deg_Hloop_up__Gradio _20190329_1400_I1-2-12_I2-8-6_GBIP8 -14-7_Vin-2.5V_R11-1MO_R12-12.25kO_ R13-0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.01-T-min_B-0.2T_gate-0V_up_.dat>>

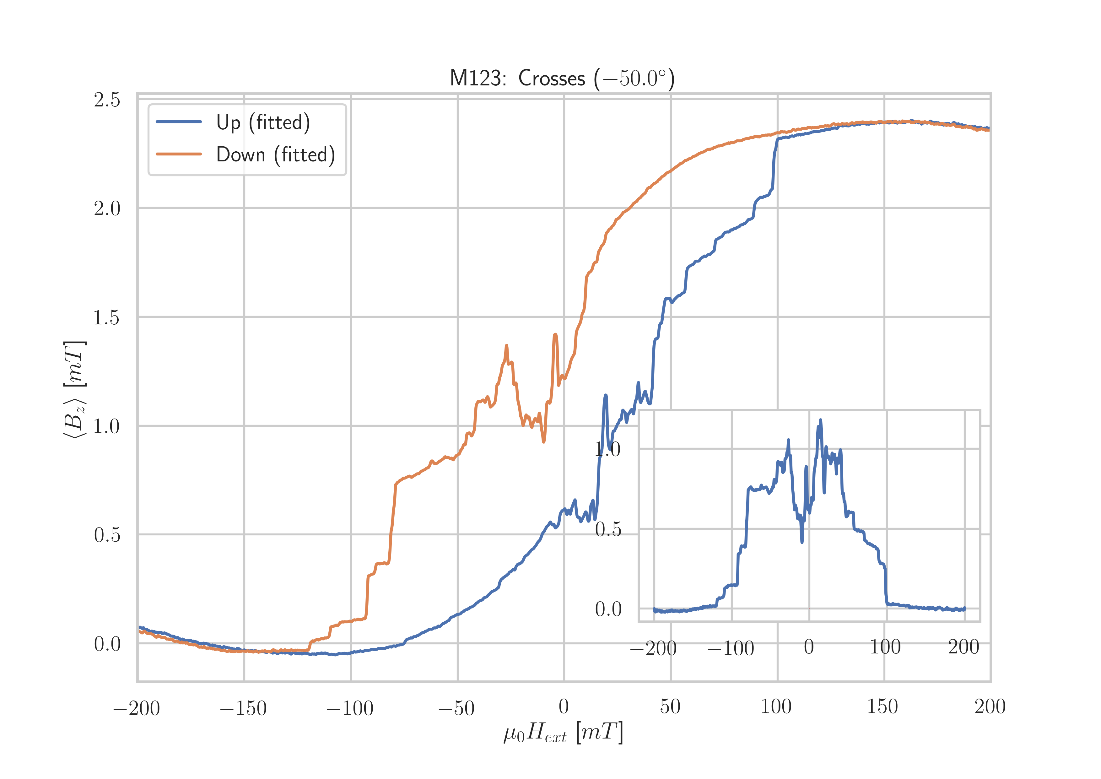

Plot

m124: PlussesCrossesEmpty_Parallel Hloop_(-50)deg

Freitag, 29. März 2019

17:30

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-50
	1 500
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files	<<m124_cros_plu_emp _-50deg_Hloop_up_Parallel_20190329_ 1600_I-7-14_GB8-1-13_GB9-2-12_GB13- 6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_T- 30K_SR-0.5-T-min_B-1T_gate-0V.dat>> <<m124_cros_plu_emp_- 50deg_Hloop_down_Parallel_20190329_ 1600_I-7-14_GB8-1-13_GB9-2-12_GB13- 6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_T- 30K_SR-0.5-T-min_B-1T_gate-0V.dat>>
Plot

C: Changing angle (-55)

Freitag, 29. März 2019

17:30

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

VH(max) (mV)	11,164mV
Angle of sensor calculator	V_H= Cos(-55)*11,164 = 6,40340733542308 Before changing: 7,165 mV Measured: 6,4025 mV
	1
Period of measurement
Notes
Data files
Plot

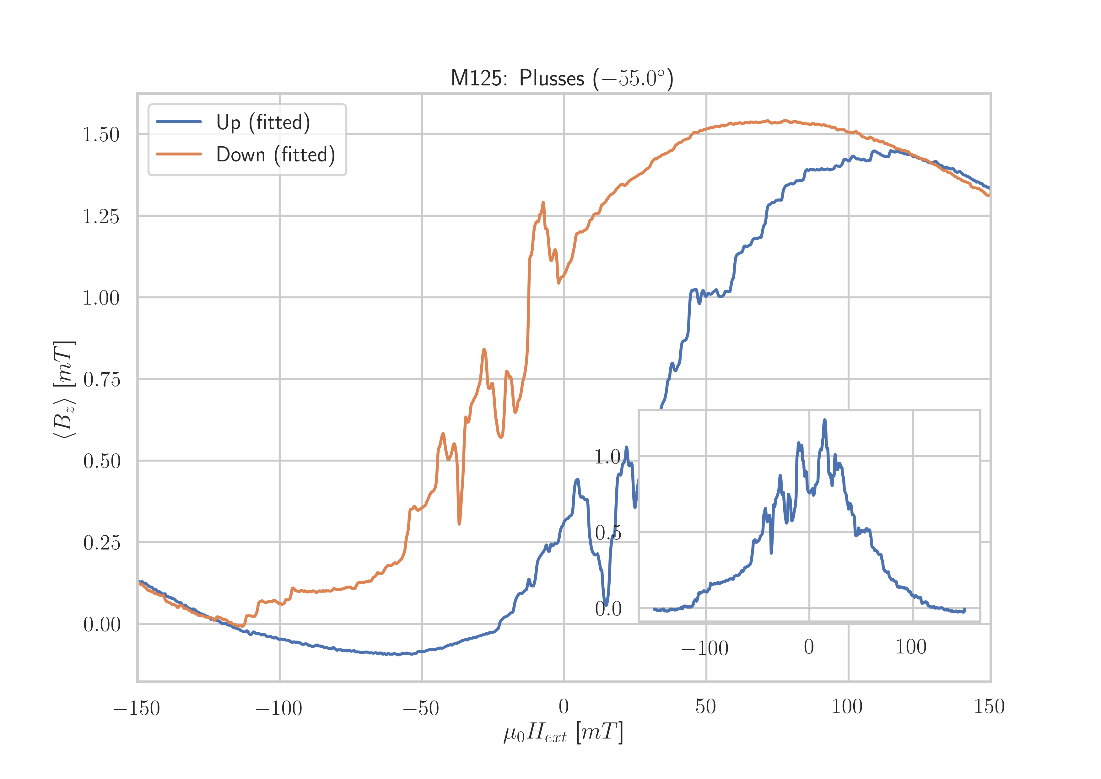

m125: Plusses_Hloop_(-55)deg

Freitag, 29. März 2019

17:30

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-55
	0.15 10
	R12 = 370/1000*50 = 18,5
Period of measurement (min)	60
Notes
Data files	<<m125_P lusses_-55deg_Hloop_down__Gradio_20 190328_1600_I1-1-13_I2-8-6_GBIP8-14 -7_Vin-2.5V_R11-1MO_R12-18.5kO_R13- 0_R21-1MO_C11-1_C21-6_T-30K_SR-0.01 -T-min_B-0.25T_gate-0V_down__.dat>> <<m1 25_Plusses_-55deg_Hloop_up__Gradio_ 20190328_1600_I1-1-13_I2-8-6_GBIP8- 14-7_Vin-2.5V_R11-1MO_R12-18.5kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR-0. 01-T-min_B-0.25T_gate-0V_up__.dat>>
Plot

m126: Crosses_Hloop_(-55)deg

Freitag, 29. März 2019

17:30

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-55
	0.15 10
	R12 = 370/1000*50 = 18,5
Period of measurement (min)	60
Notes
Data files	<<m126_C rosses_-55deg_Hloop_down__Gradio_20 190328_1700_I1-2-12_I2-8-6_GBIP8-14 -7_Vin-2.5V_R11-1MO_R12-18.5kO_R13- 0_R21-1MO_C11-1_C21-6_T-30K_SR-0.01 -T-min_B-0.15T_gate-0V_down__.dat>> <<m1 26_Crosses_-55deg_Hloop_up__Gradio_ 20190328_1700_I1-2-12_I2-8-6_GBIP8- 14-7_Vin-2.5V_R11-1MO_R12-18.5kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR-0. 01-T-min_B-0.15T_gate-0V_up__.dat>>
Plot	|OCI 001 001 冖 。 0 \| 一 .9ÜIbN [Jtu] 冖 pauy) 冖 pauy) d n 001 \| FO|

m127: PlussesCrossesEmpty_Parallel Hloop_(-55)deg

Freitag, 29. März 2019

18:43

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-55
	1 500
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files	<<m127_cros_plu_emp_-5 5deg_Hloop_down_Parallel_20190329_1 900_I-7-14_GB8-1-13_GB9-2-12_GB13-6 -8_Vin-2.5V_R11-1MO_C11-1_C21-6_T-3 0K_SR-0.5-T-min_B-1T_gate-0V_.dat>> <<m127_cros_plu_emp_ -55deg_Hloop_up_Parallel_20190329_1 900_I-7-14_GB8-1-13_GB9-2-12_GB13-6 -8_Vin-2.5V_R11-1MO_C11-1_C21-6_T-3 0K_SR-0.5-T-min_B-1T_gate-0V_.dat>>
Plot

C: Changing angle (-60)

Freitag, 29. März 2019

18:46

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

VH(max) (mV)	11,164mV
Angle of sensor calculator	V_H= Cos(-60)*11,164 = 5,582000000000001 Before changing:6.372mv Measured:5.581mV
	1
Period of measurement
Notes
Data files
Plot

m128: Plusses_Hloop_deg(-60)

Freitag, 29. März 2019

18:47

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-60
	0.25 10
	R12 =235/1000*50=11.75
Period of measurement (min)	80
Notes
Data files	<<m1 28_Plusses_-60deg_Hloop_up__Gradio_ 20190329_1900_I1-1-13_I2-8-6_GBIP8- 14-7_Vin-2.5V_R11-1MO_R12-11.75kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_SR-0 .01-T-min_B-0.25T_gate-0V_up_.dat>> <<m128_Pl usses_-60deg_Hloop_down__Gradio_201 90329_1900_I1-1-13_I2-8-6_GBIP8-14- 7_Vin-2.5V_R11-1MO_R12-11.75kO_R13- 0_R21-1MO_C11-1_C21-6_T-30K_SR-0.01 -T-min_B-0.25T_gate-0V_down__.dat>>

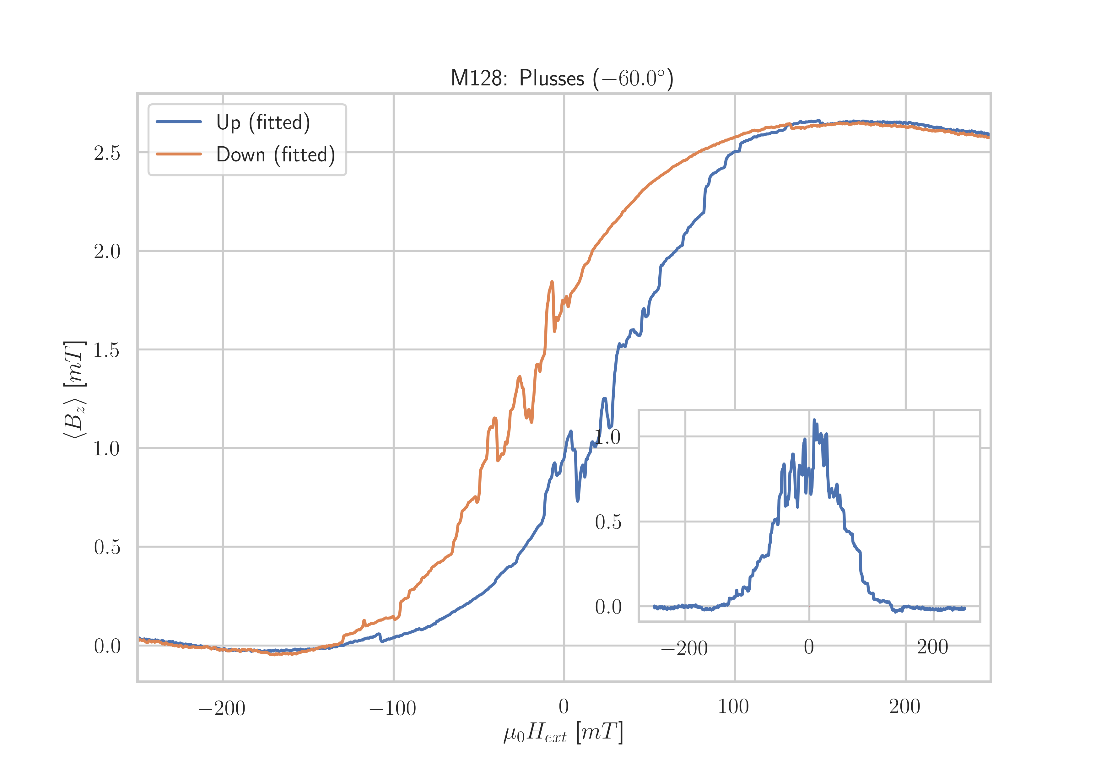

Plot

m129: Crosses_Hloop_deg(-60)

Freitag, 29. März 2019

08:49

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-60
	0.2 5 10
	R12 = 220/1000*50 = 11
Period of measurement (min)	80
Notes
Data files	<<m129 _Crosses_-60deg_Hloop_down__Gradio_ 20190329_2100_I1-2-12_I2-8-6_GBIP8- 14-7_Vin-2.5V_R11-1MO_R12-11kO_R13- 0_R21-1MO_C11-1_C21-6_T-30K_SR-0.01 -T-min_B-0.25T_gate-0V_down__.dat>> << m129_Crosses_-60deg_Hloop_up__Gradi o_20190329_2100_I1-2-12_I2-8-6_GBIP 8-14-7_Vin-2.5V_R11-1MO_R12-11kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR-0. 01-T-min_B-0.25T_gate-0V_up__.dat>>
Plot

m130: PlussesCrossesEmpty_Parallel Hloop_(-60)deg

Samstag, 30. März 2019

08:39

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-60
	1 1000
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files	<<m130_cros_plu_emp_-6 0deg_Hloop_down_Parallel_20190330_0 800_I-7-14_GB8-1-13_GB9-2-12_GB13-6 -8_Vin-2.5V_R11-1MO_C11-1_C21-6_T-3 0K_SR-0.5-T-min_B-1T_gate-0V_.dat>> <<m130_cros_plu_emp_ -60deg_Hloop_up_Parallel_20190330_0 800_I-7-14_GB8-1-13_GB9-2-12_GB13-6 -8_Vin-2.5V_R11-1MO_C11-1_C21-6_T-3 0K_SR-0.5-T-min_B-1T_gate-0V_.dat>>
Plot

C: Changing angle (-65)

Samstag, 30. März 2019

08:40

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

VH(max) (mV)	11,164mV
Angle of sensor calculator	V_H= Cos(-65)*11,164 = 4,718110274073169 Before changing: 5.436mV Measured:4.719mV
	1
Period of measurement
Notes
Data files
Plot

m131: Plusses_Hloop_(-65)deg

Samstag, 30. März 2019

08:51

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-65
	0.35 10
	R12 = 165/1000*50 = 8,25
Period of measurement (min)	140
Notes
Data files	<<m131_P lusses_-65deg_Hloop_down__Gradio_20 190330_0900_I1-1-13_I2-8-6_GBIP8-14 -7_Vin-2.5V_R11-1MO_R12-8.25kO_R13- 0_R21-1MO_C11-1_C21-6_T-30K_SR-0.01 -T-min_B-0.35T_gate-0V_down__.dat>> <<m1 31_Plusses_-65deg_Hloop_up__Gradio_ 20190330_0900_I1-1-13_I2-8-6_GBIP8- 14-7_Vin-2.5V_R11-1MO_R12-8.25kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR-0. 01-T-min_B-0.35T_gate-0V_up__.dat>>
Plot

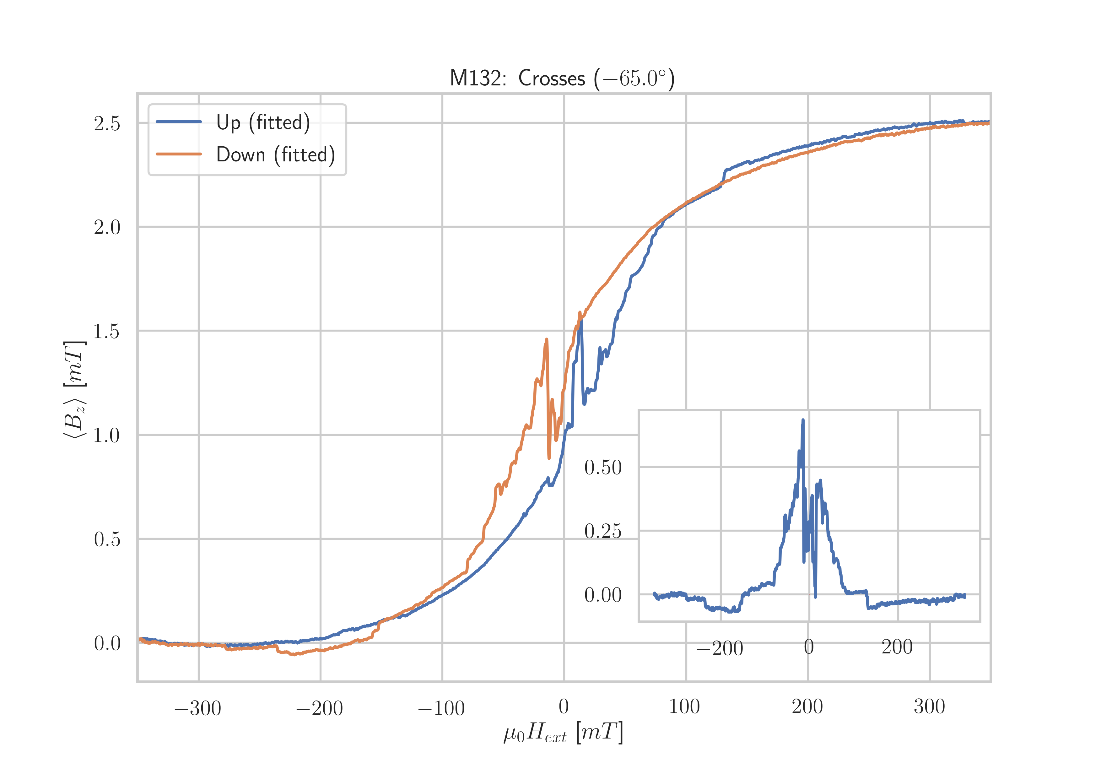

m132: Crosses_Hloop_(-65)deg

Samstag, 30. März 2019

11:00

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-65
	0.35 10
	R12 = 135/1000*50 = 6,75
Period of measurement (min)	140
Notes
Data files	<<m132_C rosses_-65deg_Hloop_down__Gradio_20 190330_1100_I1-2-12_I2-8-6_GBIP8-14 -7_Vin-2.5V_R11-1MO_R12-6.75kO_R13- 0_R21-1MO_C11-1_C21-6_T-30K_SR-0.01 -T-min_B-0.35T_gate-0V_down__.dat>> <<m1 32_Crosses_-65deg_Hloop_up__Gradio_ 20190330_1100_I1-2-12_I2-8-6_GBIP8- 14-7_Vin-2.5V_R11-1MO_R12-6.75kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR-0. 01-T-min_B-0.35T_gate-0V_up__.dat>>
Plot

m133: PlussesCrossesEmpty_Parallel Hloop_(-65)deg

Samstag, 30. März 2019

15:09

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-65
	1 1000
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files	<<m133_cros_plu_emp_-65 deg_Hloop_down_Parallel_20190330_15 00_I-7-14_GB8-1-13_GB9-2-12_GB13-6- 8_Vin-2.5V_R11-1MO_C11-1_C21-6_T-30 K_SR-0.5-T-min_B-1T_gate-0V__.dat>> <<m133_cros_plu_emp_- 65deg_Hloop_up_Parallel_20190330_15 00_I-7-14_GB8-1-13_GB9-2-12_GB13-6- 8_Vin-2.5V_R11-1MO_C11-1_C21-6_T-30 K_SR-0.5-T-min_B-1T_gate-0V__.dat>>

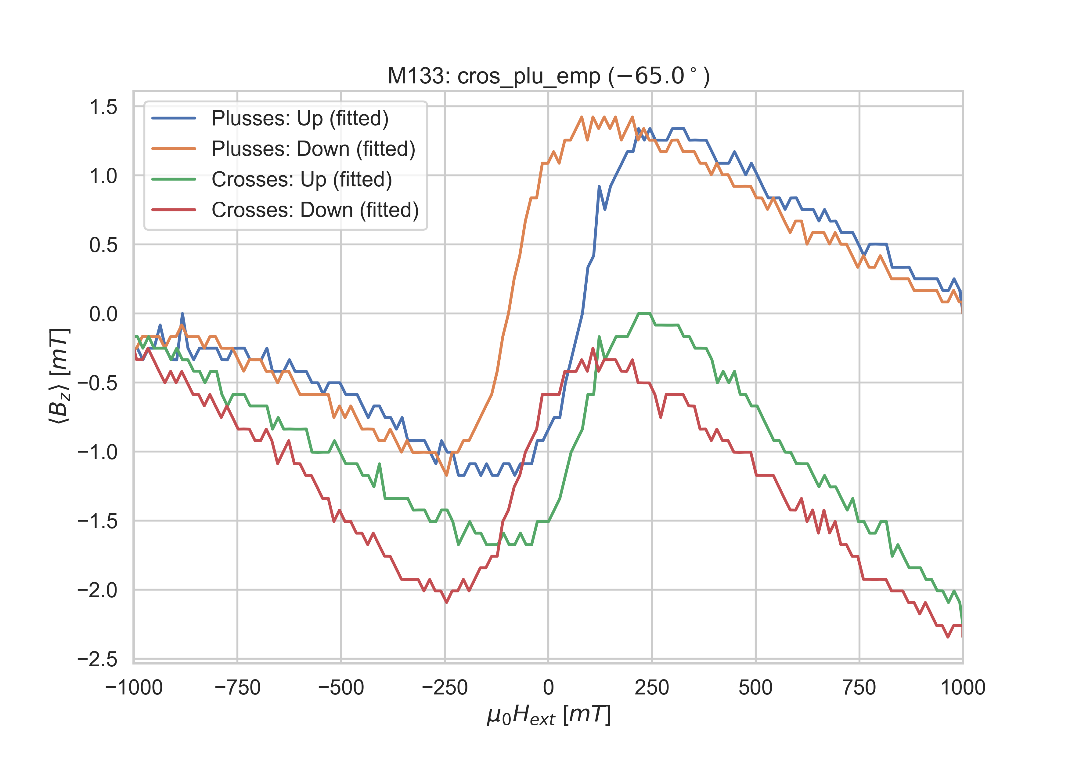

Plot

C: Changing angle (-70)

Samstag, 30. März 2019

15:09

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

VH(max) (mV)	11,164mV
Angle of sensor calculator	V_H= Cos(-70)*11,164 = 3,818312880087767 mv Before changing:4.712mV Measured: 3.816mV
	1
Period of measurement
Notes
Data files
Plot

m134: Plusses_Hloop_deg(-70)

Samstag, 30. März 2019

15:10

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-70
	0.35 10
	R12 = 188/1000*50 = 9,4
Period of measurement (min)	140
Notes
Data files	<<m 134_Plusses_-70deg_Hloop_up__Gradio _20190330_1500_I1-1-13_I2-8-6_GBIP8 -14-7_Vin-2.5V_R11-1MO_R12-9.4kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR-0. 01-T-min_B-0.35T_gate-0V_up__.dat>> <<m134_ Plusses_-70deg_Hloop_down__Gradio_2 0190330_1500_I1-1-13_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-9.4kO_R13- 0_R21-1MO_C11-1_C21-6_T-30K_SR-0.01 -T-min_B-0.35T_gate-0V_down__.dat>>

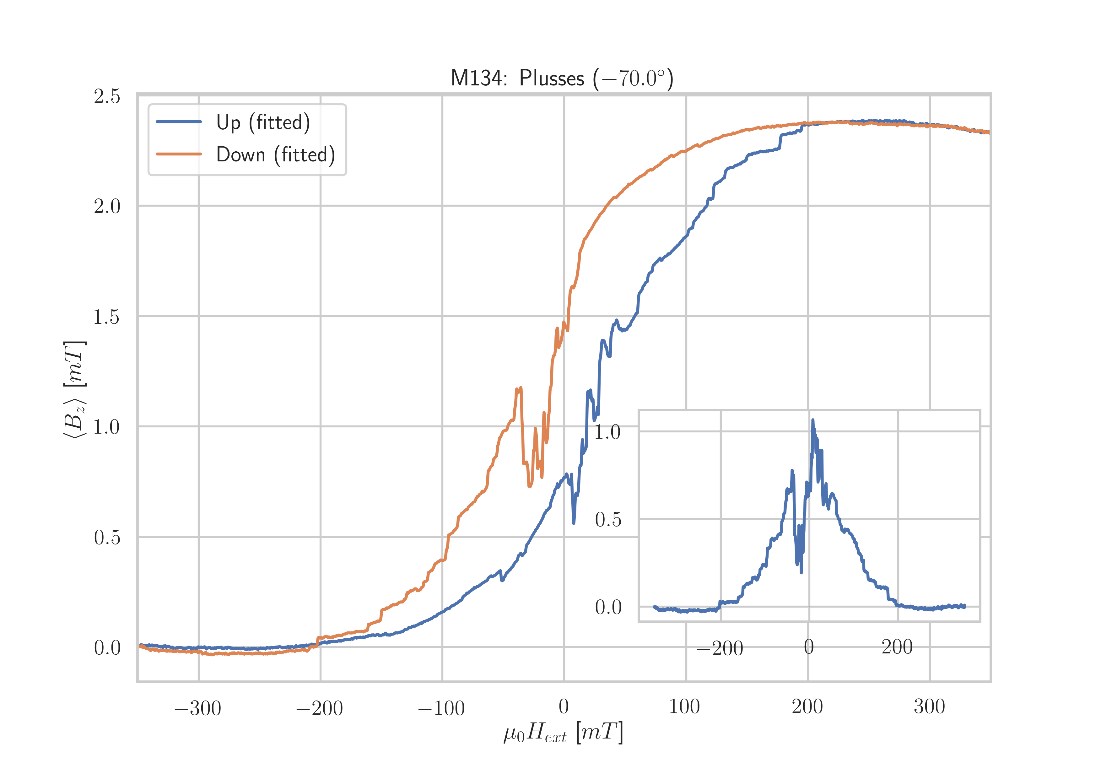

Plot

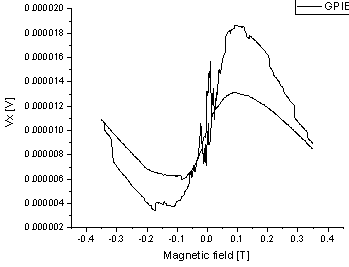

m135: Crosses_Hloop_deg(-70)

Dienstag, 2. April 2019

12:30

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-70
	0,35 10
	R12 = 130/1000*50 = 6,5
Period of measurement (min)	140
Notes	Hysteresis didn’t close. Going to 0.5 T and repeating with same settings.
Data files	<<m135_ Crosses_-70deg_Hloop_down__Gradio_2 0190402_1200_I1-2-12_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-6.5kO_R13- 0_R21-1MO_C11-1_C21-6_T-30K_SR-0.01 -T-min_B-0.35T_gate-0V_down__.dat>> <<m 135_Crosses_-70deg_Hloop_up__Gradio _20190402_1200_I1-2-12_I2-8-6_GBIP8 -14-7_Vin-2.5V_R11-1MO_R12-6.5kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR-0. 01-T-min_B-0.35T_gate-0V_up__.dat>>
Plot

m136: Crosses_Hloop_deg(-70) repeat \w 0.5T

Dienstag, 2. April 2019

12:30

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-70
	0,5 10
	R12 = 130/1000*50 = 6,5
Period of measurement (min)	200
Notes
Data files	<<m136 _Crosses_-70deg_Hloop_down__Gradio_ 20190402_1500_I1-2-12_I2-8-6_GBIP8- 14-7_Vin-2.5V_R11-1MO_R12-6.5kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR-0.0 1-T-min_B-0.5T_gate-0V_down__.dat>> << m136_Crosses_-70deg_Hloop_up__Gradi o_20190402_1500_I1-2-12_I2-8-6_GBIP 8-14-7_Vin-2.5V_R11-1MO_R12-6.5kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_SR-0 .01-T-min_B-0.5T_gate-0V_up__.dat>>

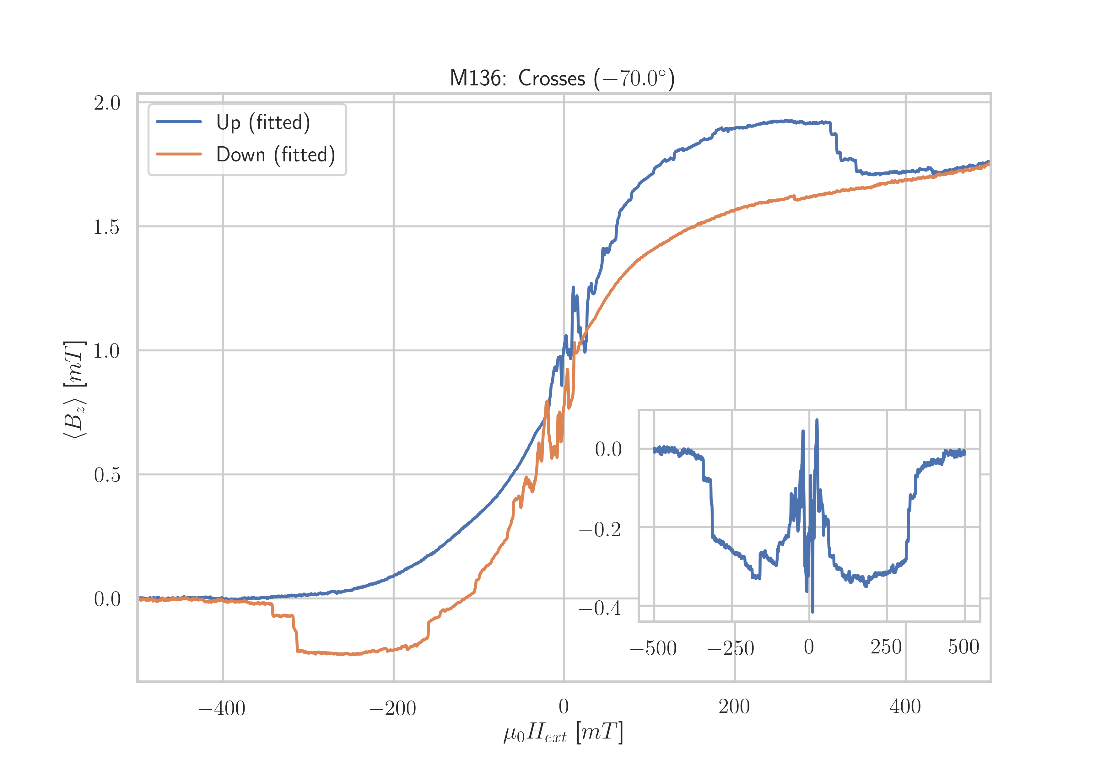

Plot

m137: PlussesCrossesEmpty_Parallel Hloop_(-70)deg

Dienstag, 2. April 2019

19:00

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ
	1 1000
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files	<<m137_cros_plu_emp _-70deg_Hloop_down_Parallel_2019040 2_1800_I-7-14_GB8-1-13_GB9-2-12_GB1 3-6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_ T-30K_SR-1-T-min_B-1T_gate-0V.dat>> <<m137_cros_plu_e mp_-70deg_Hloop_up_Parallel_2019040 2_1800_I-7-14_GB8-1-13_GB9-2-12_GB1 3-6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_ T-30K_SR-1-T-min_B-1T_gate-0V.dat>>

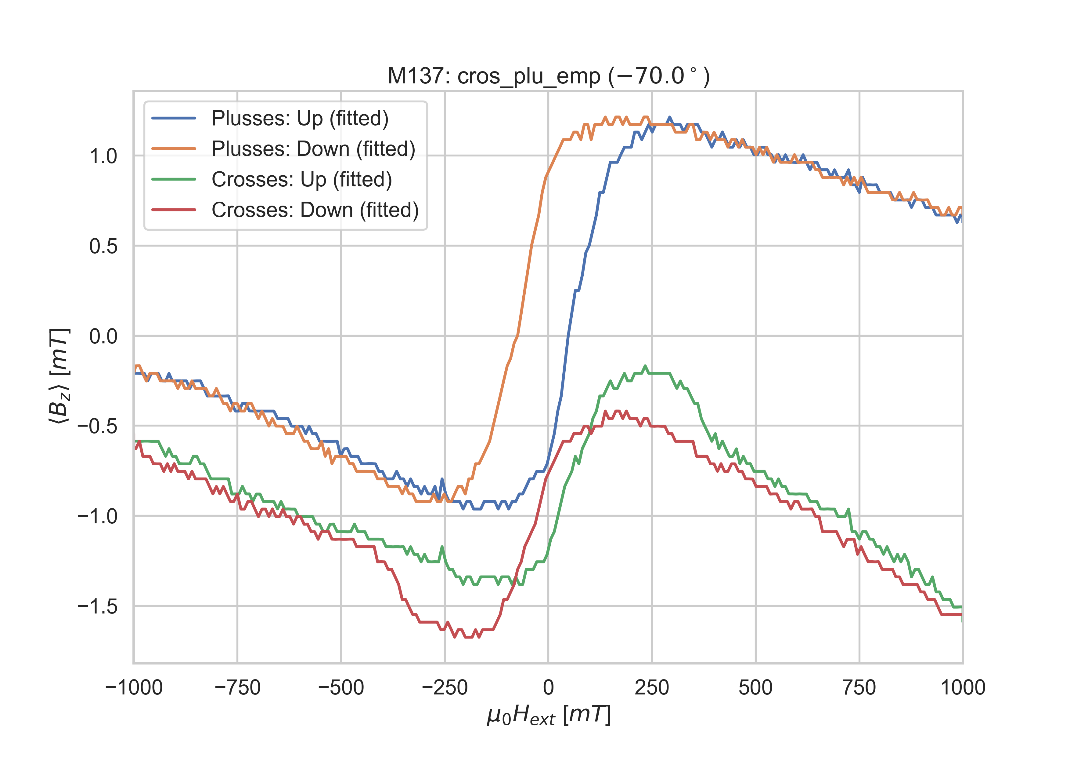

Plot

C: Changing angle (-75)

Dienstag, 2. April 2019

19:01

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

VH(max) (mV)	11,164mV
Angle of sensor calculator	V_H= Cos(-75)*11,164 = 2,889455819524541 Before changing: 3,868 mV Measured: 2,8886 mV
	1
Period of measurement
Notes
Data files
Plot

m138: Plusses_Hloop_(-75)deg

Dienstag, 2. April 2019

19:01

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-75
	1 10
	R12 = 40/1000*50 = 2
Period of measurement (min)	400
Notes
Data files	<< m138_Plusses_-75deg_Hloop_down__Gra dio_20190402_1900_I1-1-13_I2-8-6_GB IP8-14-7_Vin-2.5V_R11-1MO_R12-2kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_SR-0 .01-T-min_B-1T_gate-0V_down__.dat>> <<m138_Plusses_-75deg_Hloop_up__G radio_20190402_1900_I1-1-13_I2-8-6_ GBIP8-14-7_Vin-2.5V_R11-1MO_R12-2kO _R13-0_R21-1MO_C11-1_C21-6_T-30K_SR -0.01-T-min_B-1T_gate-0V_up__.dat>>

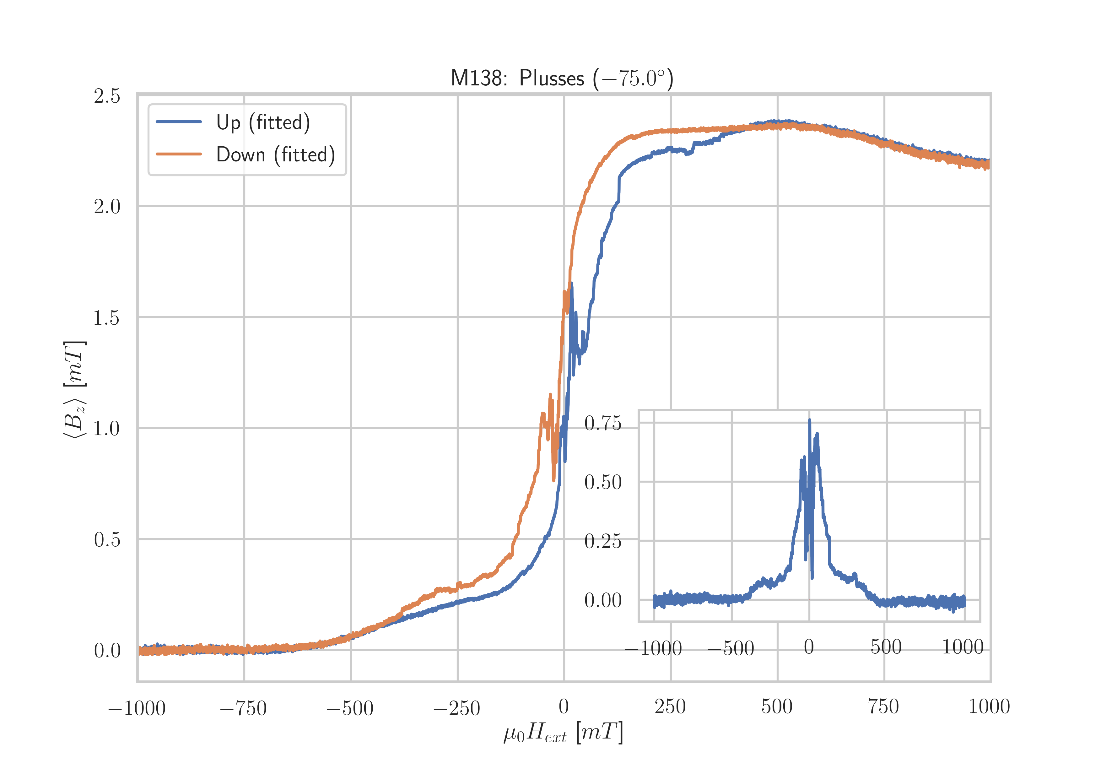

Plot

m139: Crosses_Hloop_(-75)deg

Mittwoch, 3. April 2019

10:00

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-75
	0,5 10
	R12 = 60/1000*50 = 3
Period of measurement (min)	200
Notes
Data files	<<m1 39_Crosses_-75deg_Hloop_down__Gradi o_20190403_1000_I1-2-12_I2-8-6_GBIP 8-14-7_Vin-2.5V_R11-1MO_R12-3kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR-0.0 1-T-min_B-0.5T_gate-0V_down__.dat>> <<m139_Crosses_-75deg_Hloop_up__Gra dio_20190403_1000_I1-2-12_I2-8-6_GB IP8-14-7_Vin-2.5V_R11-1MO_R12-3kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_SR-0 .01-T-min_B-0.5T_gate-0V_up__.dat>>
Plot

m140: Crosses_Hloop_(-75)deg again

Mittwoch, 3. April 2019

17:20

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-75
	0,5 10
	R12 = 60/1000*50 = 3
Period of measurement (min)	200
Notes	Filling Heliox during measurement (14:00 – 17:20, filling between 15:00 – 16:00) Exactly the same measurement as 139
Data files	<<m1 40_Crosses_-75deg_Hloop_down__Gradi o_20190403_1400_I1-2-12_I2-8-6_GBIP 8-14-7_Vin-2.5V_R11-1MO_R12-3kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR-0.0 1-T-min_B-0.5T_gate-0V_down__.dat>> <<m140_Crosses_-75deg_Hloop_up__Gra dio_20190403_1400_I1-2-12_I2-8-6_GB IP8-14-7_Vin-2.5V_R11-1MO_R12-3kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_SR-0 .01-T-min_B-0.5T_gate-0V_up__.dat>>
Plot

139-140 comparison

Samstag, 6. April 2019

10:02

m141: PlussesCrossesEmpty_Parallel Hloop_(-75)deg

Mittwoch, 3. April 2019

17:24

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-75
	1 1000
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files	<<m141_cros_plu_e mp_-75deg_Hloop_up_Parallel_2019040 3_1700_I-7-14_GB8-1-13_GB9-2-12_GB1 3-6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_ T-30K_SR-1-T-min_B-1T_gate-0V.dat>> <<m141_cros_plu_emp _-75deg_Hloop_down_Parallel_2019040 3_1700_I-7-14_GB8-1-13_GB9-2-12_GB1 3-6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_ T-30K_SR-1-T-min_B-1T_gate-0V.dat>>
Plot

C: Changing angle (-40) again

Mittwoch, 3. April 2019

17:25

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

VH(max) (mV)	11,164mV
Angle of sensor calculator	V_H= Cos(-40)*11,164 = 8,55212016298027 Before changing: 2,818 mV Measured: 8.555 mV
	1
Period of measurement
Notes	We had done this measurment after noise and there was difference in the Hall voltage measured directly after the noise test setup. Next day we have seen that we have measured 47.69° angle.
Data files
Plot

m142: PlussesCrossesEmpty_Parallel Hloop_(-40)deg

Mittwoch, 3. April 2019

18:00

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ
	1 1000
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files	<<m142_cros_plu_e mp_-40deg_Hloop_up_Parallel_2019040 3_1730_I-7-14_GB8-1-13_GB9-2-12_GB1 3-6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_ T-30K_SR-1-T-min_B-1T_gate-0V.dat>> <<m142_cros_plu_emp _-40deg_Hloop_down_Parallel_2019040 3_1730_I-7-14_GB8-1-13_GB9-2-12_GB1 3-6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_ T-30K_SR-1-T-min_B-1T_gate-0V.dat>>
Plot

m143: Plusses_Hloop_(-40)deg

Mittwoch, 3. April 2019

19:00

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-40
	1 8
	R12 = 60/1000*50 = 3
Period of measurement (min)	500
Notes
Data files	<<m143_Plusses_-40deg_Hloop_up__Gr adio_20190403_1900_I1-1-13_I2-8-6_G BIP8-14-7_Vin-2.5V_R11-1MO_R12-3kO_ R13-0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-1T_gate-0V_up__.dat>>
Plot

<<m143_Plusses_-40deg_Hloop_down__Gradio_20190403_1900_I1-1-13_I2-8-6_GBIP8-14-7_Vin-2.5V_R11-1MO_R12-3kO_R13-0_R21-1MO_C11-1_C21-6_T-30K_SR-0.008-T-min_B-1T_gate-0V_down__.dat>>

m144: Plusses_Hloop_(-40)deg repeated for comparison

Mittwoch, 3. April 2019

19:00

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-40
	1 8
	R12 = 60/1000*50 = 3
Period of measurement (min)	500
Notes	Repeated automatically over night with script
Data files	<<m144_Plusses_-40deg_Hloop_up__Gr adio_20190404_0200_I1-1-13_I2-8-6_G BIP8-14-7_Vin-2.5V_R11-1MO_R12-3kO_ R13-0_R21-1MO_C11-1_C21-6_T-30K_SR- 0.008-T-min_B-1T_gate-0V_up__.dat>> <<m 144_Plusses_-40deg_Hloop_down__Grad io_20190404_0200_I1-1-13_I2-8-6_GBI P8-14-7_Vin-2.5V_R11-1MO_R12-3kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR-0. 008-T-min_B-1T_gate-0V_down__.dat>>
Plot

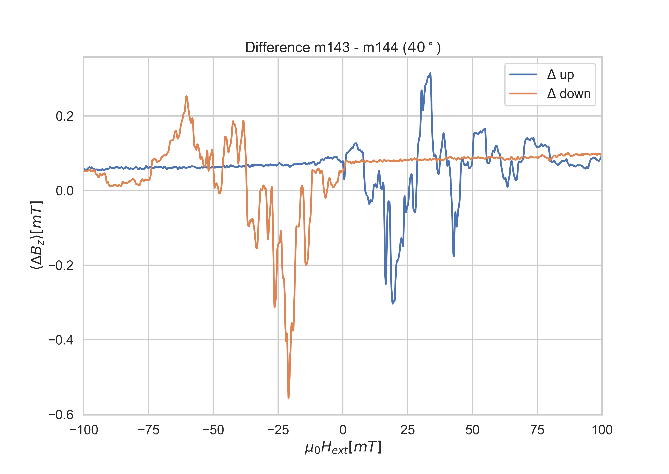

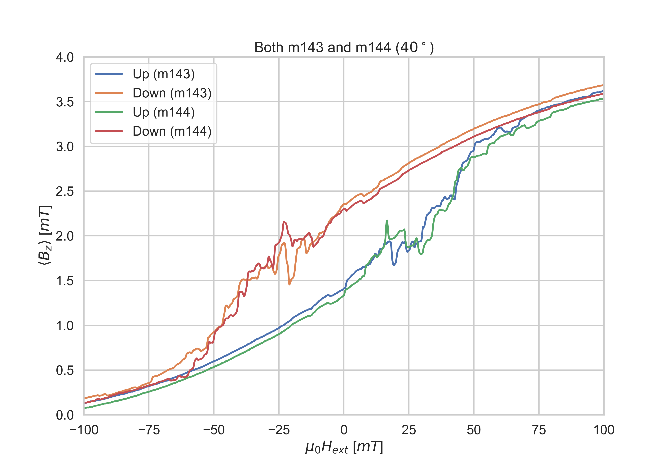

143-144 comparison

07 April 2019

13:19

<<-40deg_Hloops_2run_plusses.pdf>>

m145: Crosses_Hloop_(-40)deg

Donnerstag, 4. April 2019

10:00

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-40
	0.4 10
	R12 = 100/1000*50 = 5
Period of measurement (min)	160
Notes
Data files	<<m1 45_Crosses_-40deg_Hloop_down__Gradi o_20190404_1300_I1-2-12_I2-8-6_GBIP 8-14-7_Vin-2.5V_R11-1MO_R12-5kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR-0.0 1-T-min_B-0.4T_gate-0V_down__.dat>> <<m145_Crosses_-40deg_Hloop_up__Gra dio_20190404_1300_I1-2-12_I2-8-6_GB IP8-14-7_Vin-2.5V_R11-1MO_R12-5kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_SR-0 .01-T-min_B-0.4T_gate-0V_up__.dat>>
Plot

m146: PlussesCrossesEmpty_Parallel Hloop_(-40)deg

19 March 2019

08:49

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-40
	1 1000
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files	<<m146_cros_plu_emp _-40deg_Hloop_down_Parallel_2019040 4_1600_I-7-14_GB8-1-13_GB9-2-12_GB1 3-6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_ T-30K_SR-1-T-min_B-1T_gate-0V.dat>> <<m146_cros_plu_e mp_-40deg_Hloop_up_Parallel_2019040 4_1600_I-7-14_GB8-1-13_GB9-2-12_GB1 3-6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_ T-30K_SR-1-T-min_B-1T_gate-0V.dat>>
Plot

C: Changing angle (-80)

Samstag, 6. April 2019

09:53

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

VH(max) (mV)	11,164mV
Angle of sensor calculator	V_H= Cos(-80)*11,164 = 1,938608255473611 Before changing: 8.439mV Measured: 1.938mV
	1
Period of measurement
Notes
Data files
Plot

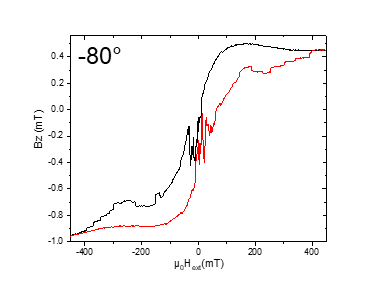

m147: Plusses_Hloop_(-80)deg

Samstag, 6. April 2019

10:09

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-80
	0.5 10
	R12 = 165/1000*50 = 8,25
Period of measurement (min)
Notes
Data files	<<m 147_Plusses_-80deg_Hloop_up__Gradio _20190406_1000_I1-1-13_I2-8-6_GBIP8 -14-7_Vin-2.5V_R11-1MO_R12-8.25kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_SR-0 .01-T-min_B-0.5T_gate-0V_up__.dat>> <<m147_ Plusses_-80deg_Hloop_down__Gradio_2 0190406_1000_I1-1-13_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-8.25kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR-0.0 1-T-min_B-0.5T_gate-0V_down__.dat>>
Plot

m148: Plusses_Hloop_(-80)deg_repeated for comparison

Samstag, 6. April 2019

10:09

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-80
	0.5 10
	R12 = 165/1000*50 = 8,25
Period of measurement (min)
Notes
Data files	<<m148_Plusses_-80deg(rep. for compar)_Hloop_up__Gradio _20190406_1200_I1-1-13_I2-8-6_GBIP8 -14-7_Vin-2.5V_R11-1MO_R12-8.25kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_SR-0 .01-T-min_B-0.5T_gate-0V_up__.dat>> <<m148_Plusses_-80deg(rep. for compar)_Hloop_down__Gradio_2 0190406_1200_I1-1-13_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-8.25kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR-0.0 1-T-min_B-0.5T_gate-0V_down__.dat>>
Plot

147-148comparison

Samstag, 6. April 2019

10:02

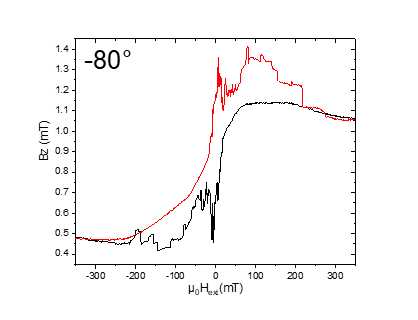

m149: Crosses_Hloop_(-80)deg

Samstag, 6. April 2019

17:30

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-80
	0.5 10
	R12 = 75/1000*50 = 3,75
Period of measurement (min)
Notes
Data files	<<m149_C rosses_-80deg_Hloop_down__Gradio_20 190406_17000_I1-2-12_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-3.75kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR-0.0 1-T-min_B-0.5T_gate-0V_down__.dat>> <<m1 49_Crosses_-80deg_Hloop_up__Gradio_ 20190406_17000_I1-2-12_I2-8-6_GBIP8 -14-7_Vin-2.5V_R11-1MO_R12-3.75kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_SR-0 .01-T-min_B-0.5T_gate-0V_up__.dat>>
Plot

m150: Crosses_Hloop_(-80)deg_repeated for comparison

Samstag, 6. April 2019

20:00

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-80
	0.5 10
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files	<<m150_Crosses_-80deg(rep. for compar)_Hloop_down__Gradio_20 190406_17000_I1-2-12_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-3.75kO_R13 -0_R21-1MO_C11-1_C21-6_T-30K_SR-0.0 1-T-min_B-0.5T_gate-0V_down__.dat>> <<m150_Crosses_-80deg(rep. for compar)_Hloop_up__Gradio_ 20190406_17000_I1-2-12_I2-8-6_GBIP8 -14-7_Vin-2.5V_R11-1MO_R12-3.75kO_R 13-0_R21-1MO_C11-1_C21-6_T-30K_SR-0 .01-T-min_B-0.5T_gate-0V_up__.dat>>
Plot

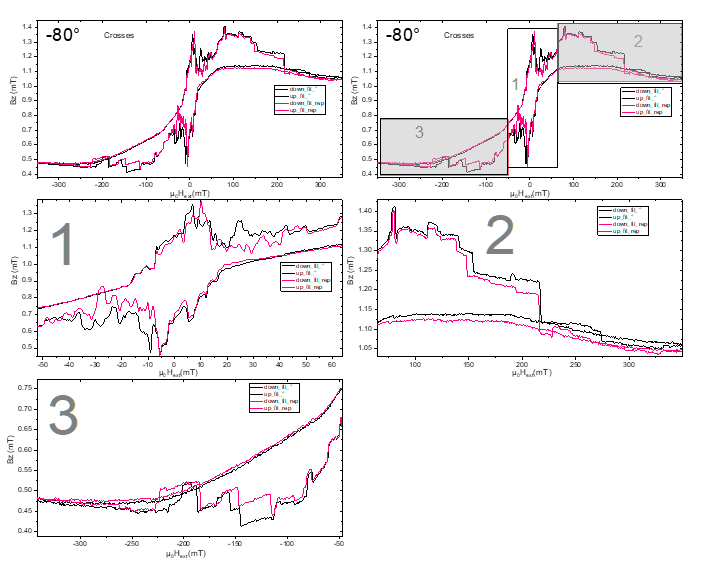

149-150comparison

Samstag, 6. April 2019

10:02

m151: PlussesCrossesEmpty_Parallel Hloop_(-80)deg

Sonntag, 7. April 2019

01:12

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ
	1 1000
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files	<<m151_cros_plu_emp _-80deg_Hloop_down_Parallel_2019040 7_0100_I-7-14_GB8-1-13_GB9-2-12_GB1 3-6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_ T-30K_SR-1-T-min_B-1T_gate-0V.dat>> <<m151_cros_plu_e mp_-80deg_Hloop_up_Parallel_2019040 7_0100_I-7-14_GB8-1-13_GB9-2-12_GB1 3-6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_ T-30K_SR-1-T-min_B-1T_gate-0V.dat>>
Plot

C: Changing angle (-85)_midnight

Sonntag, 7. April 2019

01:19

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

VH(max) (mV)	11,164mV
Angle of sensor calculator	V_H= Cos(-85)*11,164 = 0,973006712034855 Before changing: 2.004mV Measured:0.973mV
	1
Period of measurement
Notes
Data files
Plot

m152: Plusses_Hloop_(-85)deg_1am morning

Sonntag, 7. April 2019

01:34

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-85
	0.75 10
	R12 = 150/1000*50 = 7,5
Period of measurement (min)	300
Notes
Data files	<<m152_ Plusses_-85deg_Hloop_down__Gradio_2 0190407_0133_I1-1-13_I2-8-6_GBIP8-1 4-7_Vin-2.5V_R11-1MO_R12-7.5kO_R13- 0_R21-1MO_C11-1_C21-6_T-30K_SR-0.01 -T-min_B-0.75T_gate-0V_down__.dat>> <<m 152_Plusses_-85deg_Hloop_up__Gradio _20190407_0133_I1-1-13_I2-8-6_GBIP8 -14-7_Vin-2.5V_R11-1MO_R12-7.5kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR-0. 01-T-min_B-0.75T_gate-0V_up__.dat>>
Plot

m153: Crosses_Hloop_(-85)deg

Sonntag, 7. April 2019

10:01

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-85
	0.75 10
	R12 = 80/1000*50 = 4
Period of measurement (min)	300
Notes
Data files	<<m15 3_Crosses_-85deg_Hloop_down__Gradio _20190407_1000_I1-2-12_I2-8-6_GBIP8 -14-7_Vin-2.5V_R11-1MO_R12-4kO_R13- 0_R21-1MO_C11-1_C21-6_T-30K_SR-0.01 -T-min_B-0.75T_gate-0V_down__.dat>> < <m153_Crosses_-85deg_Hloop_up__Grad io_20190407_1000_I1-2-12_I2-8-6_GBI P8-14-7_Vin-2.5V_R11-1MO_R12-4kO_R1 3-0_R21-1MO_C11-1_C21-6_T-30K_SR-0. 01-T-min_B-0.75T_gate-0V_up__.dat>>
Plot

m154: PlussesCrossesEmpty_Parallel Hloop_(-85)deg

Sonntag, 7. April 2019

15:12

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-85
	1 1000
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files	<<m154_cros_plu_emp_ -85deg_Hloop_down_Parallel_20190407 _1500_I-7-14_GB8-1-13_GB9-2-12_GB13 -6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_T -30K_SR-1-T-min_B-1T_gate-0V_.dat>> <<m154_cros_plu_em p_-85deg_Hloop_up_Parallel_20190407 _1500_I-7-14_GB8-1-13_GB9-2-12_GB13 -6-8_Vin-2.5V_R11-1MO_C11-1_C21-6_T -30K_SR-1-T-min_B-1T_gate-0V_.dat>>
Plot

C: Changing angle (-90)

Sonntag, 7. April 2019

22:15

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

VH(max) (mV)	11,164mV
Angle of sensor calculator	V_H= Cos(-90)*11,164 = 0 Before changing:0.9878mv Measured: -0.0009mV
	1
Period of measurement
Notes
Data files
Plot

m155: PlussesCrossesEmpty_Parallel Hloop_(-90)deg_10mT/min

Sonntag, 7. April 2019

22:15

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	-90
	1 10
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files	< <m155_cros_plu_emp_-90deg_Hloop_ up_Parallel_20190407_1500_I-7-14 _GB8-1-13_GB9-2-12_GB13-6-8_Vin- 2.5V_R11-1MO_C11-1_C21-6_T-30K_S R-10-T-min_B-1T_gate-0V_b_.dat>> <<m 155_cros_plu_emp_-90deg_Hloop_do wn_Parallel_20190407_1500_I-7-14 _GB8-1-13_GB9-2-12_GB13-6-8_Vin- 2.5V_R11-1MO_C11-1_C21-6_T-30K_S R-10-T-min_B-1T_gate-0V_a_.dat>>
Plot

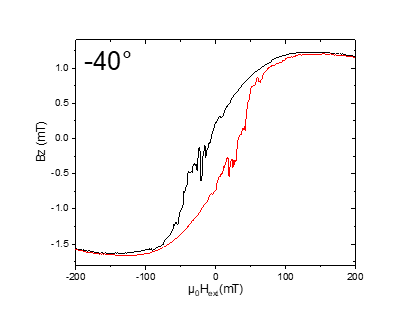

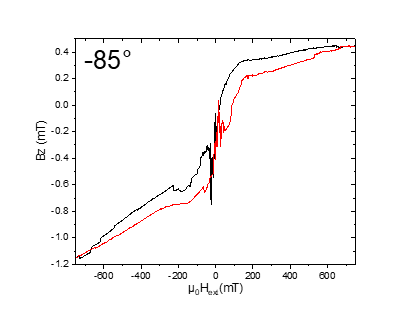

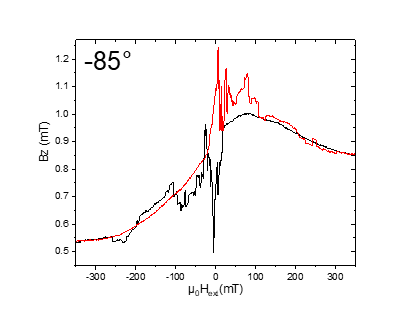

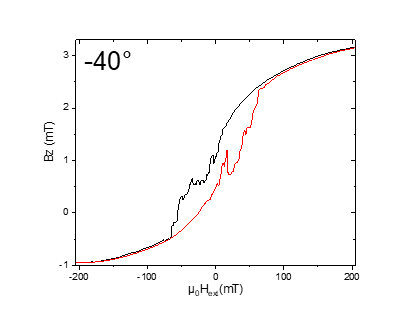

Final picture of the angles (Plusses)

09 April 2019

14:01

<<NegHloopP.pdf>>

<<PosHloopP.pdf>>

Final picture of the angles (Crosses)

09 April 2019

14:01

<<PosHloopC.pdf>>

<<NegHloopC.pdf>>

:

10 April 2019

17:38

(1) Structures measured
name structures-measured-101

(2) Measurement type	Hloop_gradiometry

(3) Cables Setup:

Gate (9)

(4) Magnet Setup:

Range:
Rate:

(5) Experiment Setup:

T
	1 MΩ
	0
	0
	1 MΩ
	μA
	μA
	0

(8) Filename and data:

(6) Lock-In Setup:

Sens:	20 μV
τ:	1s
Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

(7) Important Notes:

m408: PlussesCrossesEmpty_Parallel Hloop_(90)deg_10mT/min

Montag, 2. März 2020

09:58

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	90
	1 10
	R12 = 40/1000*50 =
Period of measurement (min)
Notes	Temperature not stabilized during up sweep
Data files
Plot

m409: PlussesCrossesEmpty_Parallel Hloop_(90)deg_10mT/min

Montag, 2. März 2020

10:00

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	90
	1 10
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files
Plot

Change Angle 90: m410: ParallelFast Hloop_(90)deg_300mT/min

Montag, 2. März 2020

10:01

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	90
	1 300
	R12 = 40/1000*50 =
Period of measurement (min)
Notes	Fast sweep after rebalancing Angle to zero! (Signal now max. ±15 μV instead of ± 200)
Data files
Plot

m411: PlussesCrossesEmpty_Parallel Hloop_(90)deg_10mT/min

Montag, 2. März 2020

10:03

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	90
	1 10
	R12 = 40/1000*50 =
Period of measurement (min)
Notes	Only up sweep before filling Cryostat! After Filling Signal changed.
Data files
Plot

Change Angle 90: m412/413: ParallelFast Hloop_(90)deg_300mT/min

Montag, 2. März 2020

10:05

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	90
	1 300
	R12 = 40/1000*50 =
Period of measurement (min)
Notes	Changing Angle after filling because signal changed!
Data files
Plot

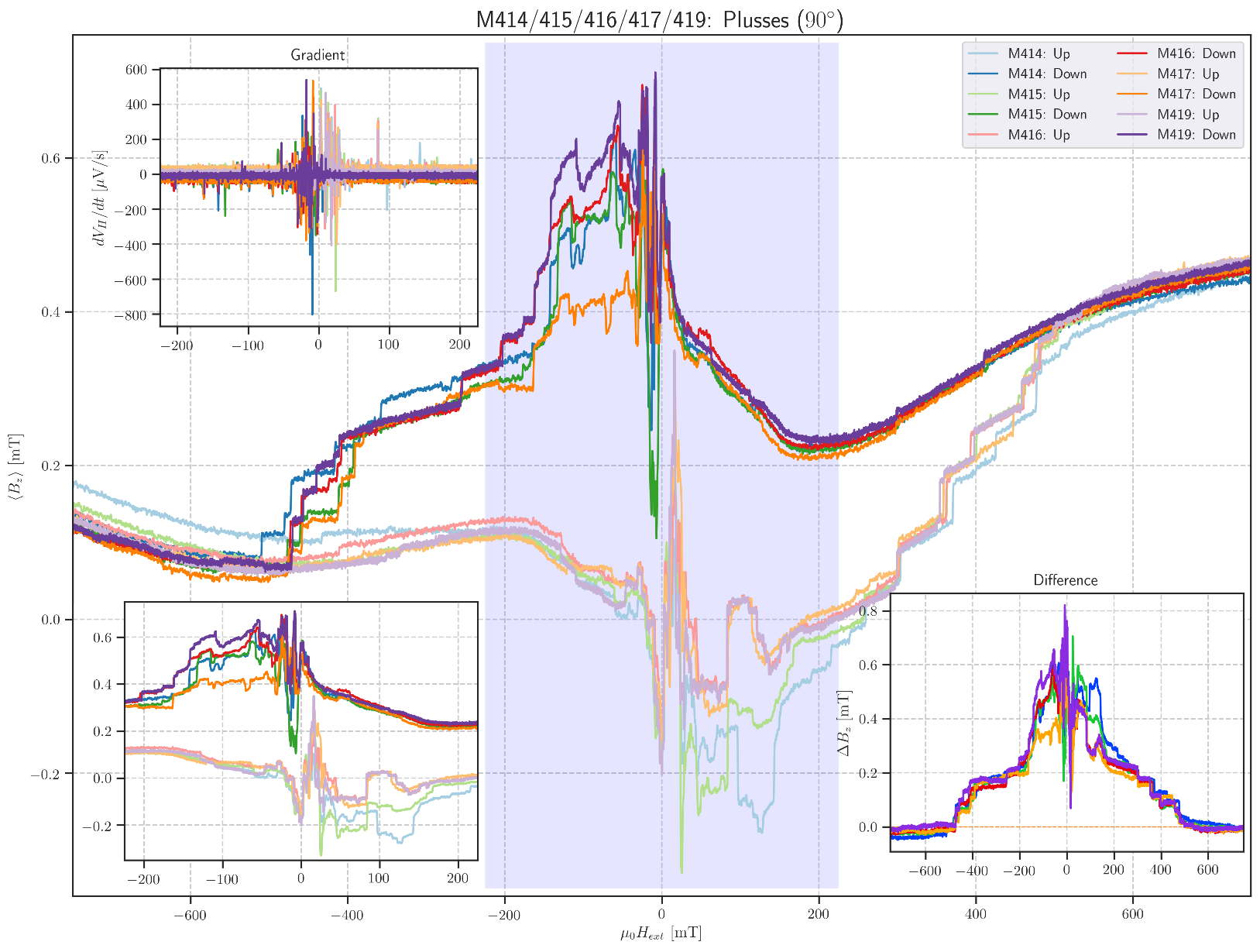

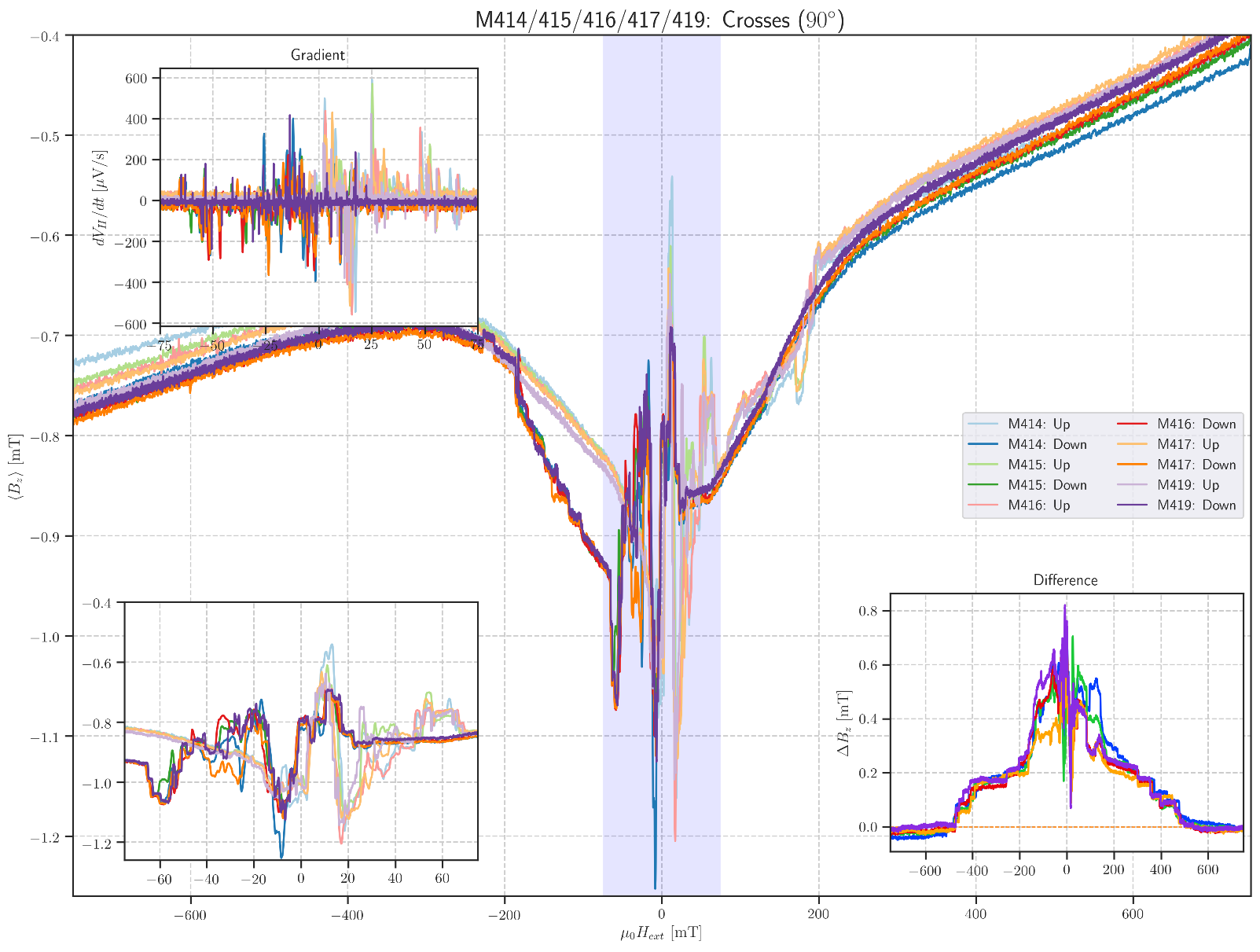

Compare m414-419 Repeated measurements

Montag, 2. März 2020

11:34

m414: PlussesCrossesEmpty_Parallel Hloop_(90)deg_10mT/min

Montag, 2. März 2020

10:06

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	90
	1 10
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files
Plot

m415: PlussesCrossesEmpty_Parallel Hloop_(90)deg_10mT/min

Montag, 2. März 2020

10:06

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	90
	1 10
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files
Plot

m416: PlussesCrossesEmpty_Parallel Hloop_(90)deg_10mT/min

Montag, 2. März 2020

10:06

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	90
	1 10
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files

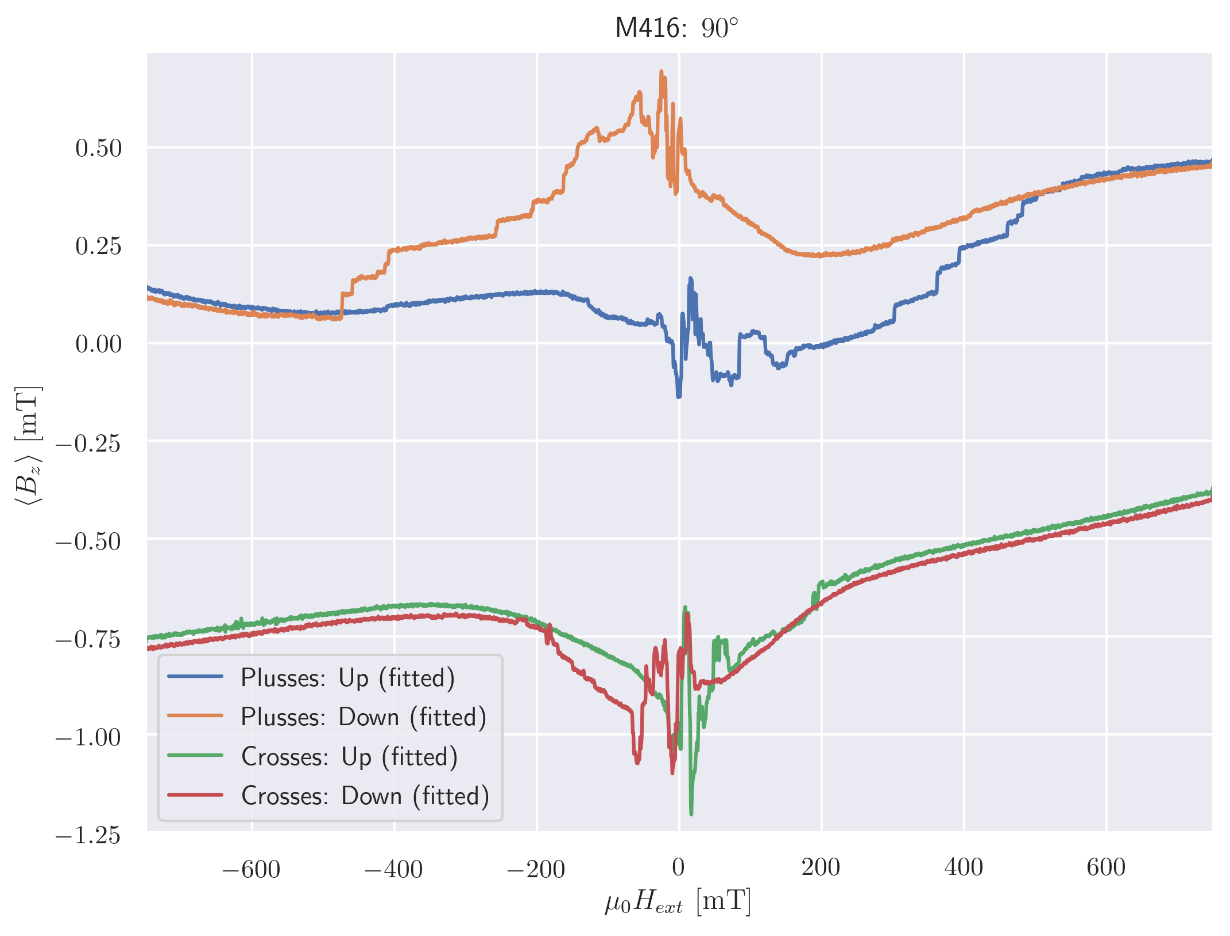

Plot

m417: PlussesCrossesEmpty_Parallel Hloop_(90)deg_10mT/min

Montag, 2. März 2020

10:07

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	90
	1 10
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files
Plot

m418: PlussesCrossesEmpty_Parallel Hloop_(90)deg_10mT/min

Montag, 2. März 2020

10:07

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	90
	1 10
	R12 = 40/1000*50 =
Period of measurement (min)
Notes	Python experienced an error on down sweep! Only up sweep available.
Data files

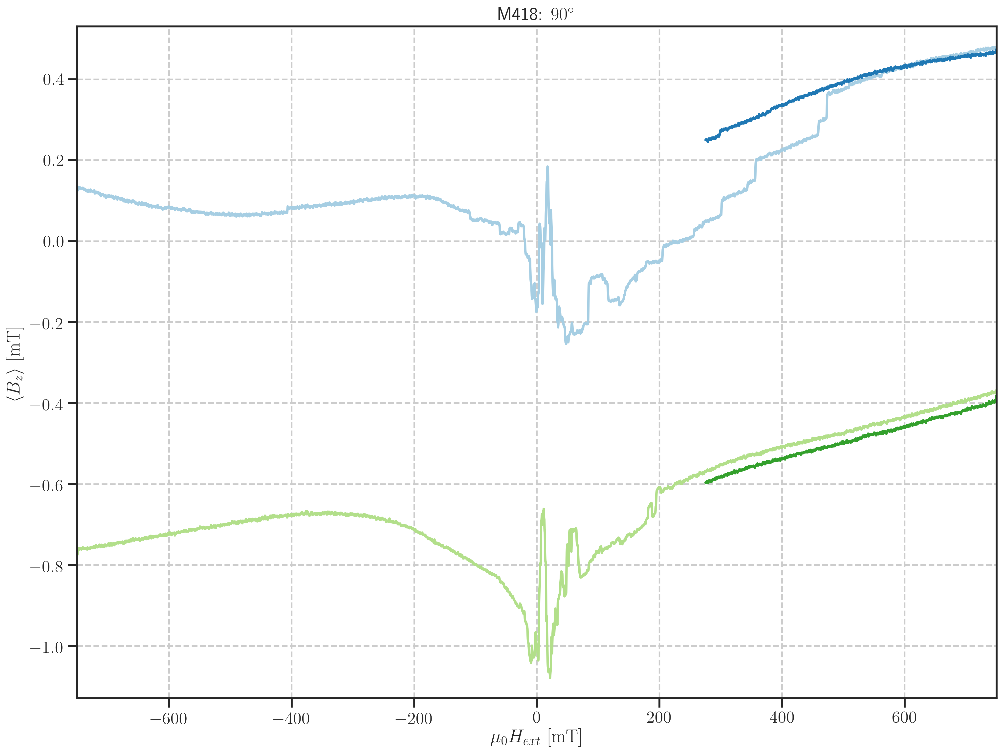

Plot

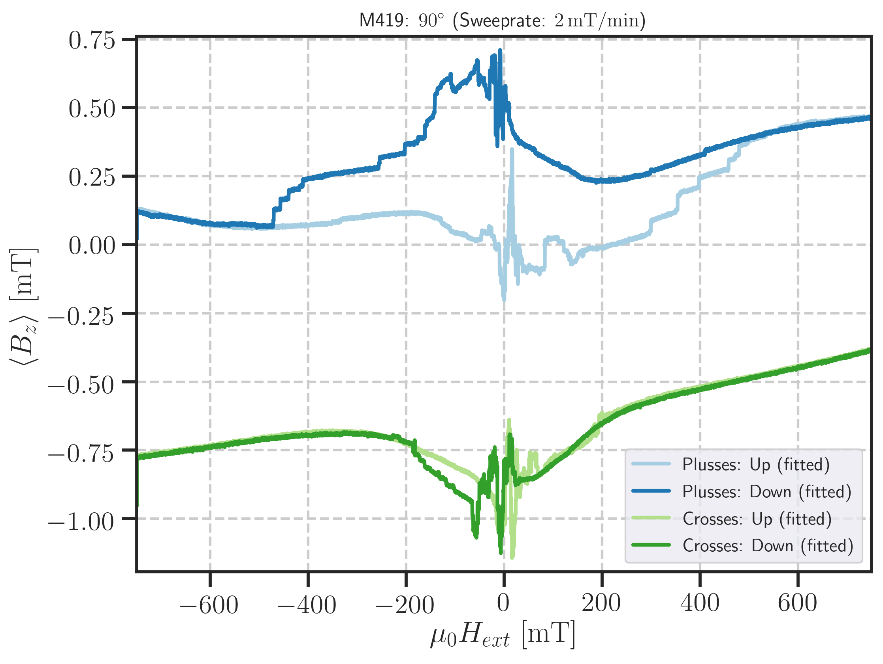

m419: SLOW PlussesCrossesEmpty_Parallel Hloop_(90)deg_2mT/min

Montag, 2. März 2020

10:14

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	90
	1 2
	R12 = 40/1000*50 =
Period of measurement (min)
Notes	Weird values in Lock-in 9: (Lines with weird values removed from evaluation.)
Data files
Plot

m420: PlussesCrossesEmpty_Parallel Hloop_(90)deg_10mT/min

Mittwoch, 4. März 2020

16:29

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	90
	1 10
	R12 = 40/1000*50 =
Period of measurement (min)
Notes	Measurement stopped because of python error on up sweep around 0 field. Only down sweep available!
Data files

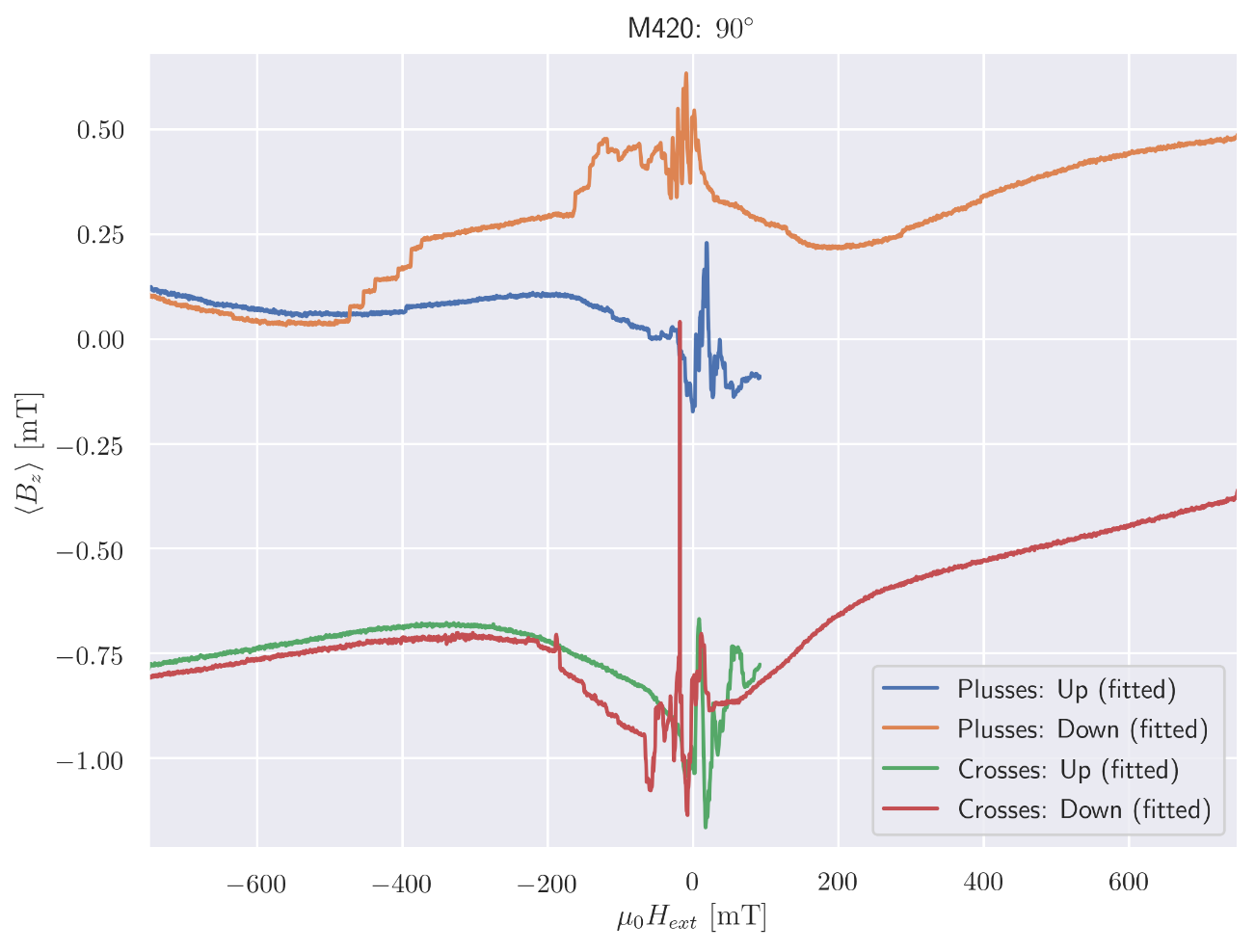

Plot

m421: PlussesCrossesEmpty_Parallel Hloop_(90)deg_10mT/min

Mittwoch, 4. März 2020

16:31

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	90
	1 10
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files
Plot

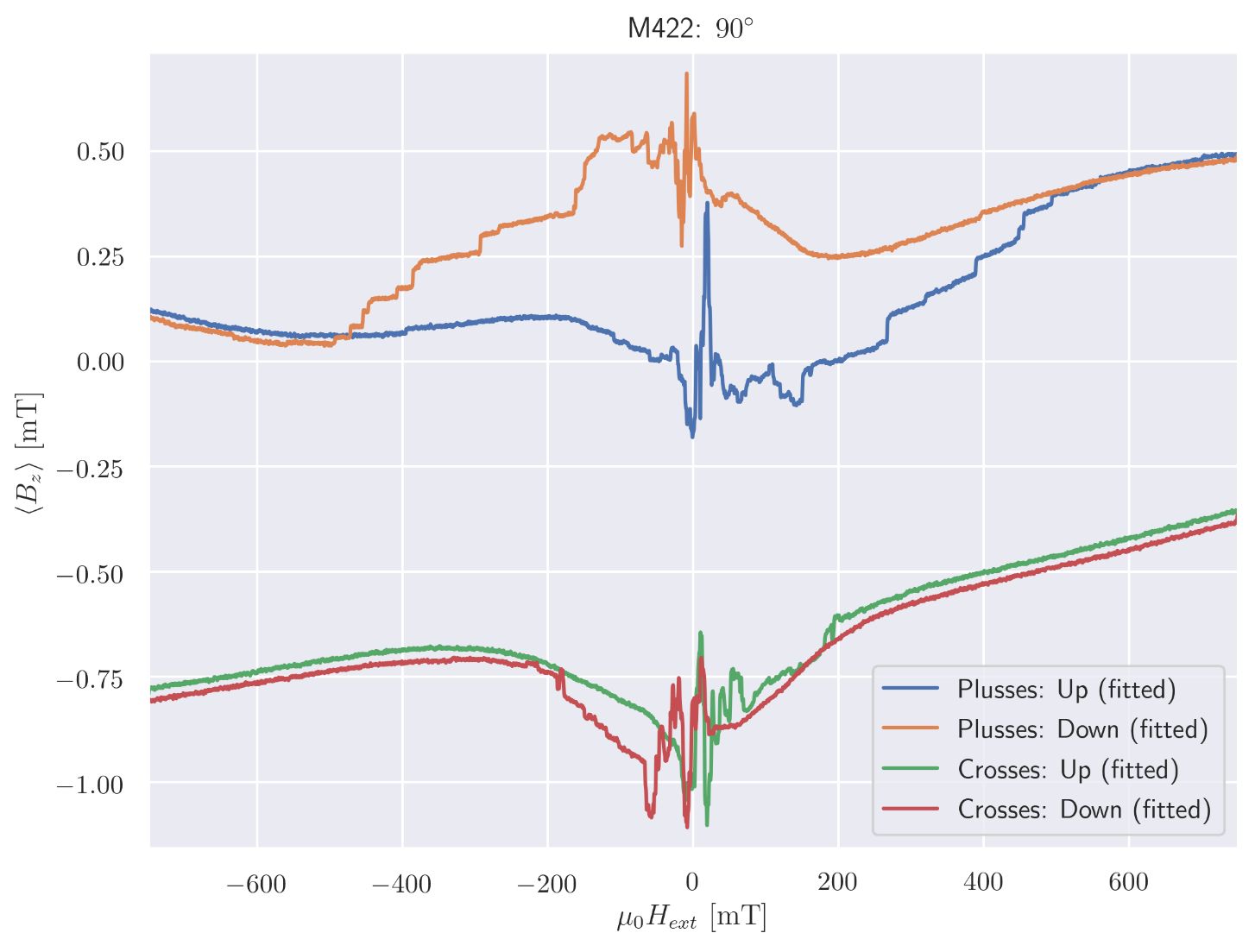

m422: PlussesCrossesEmpty_Parallel Hloop_(90)deg_10mT/min

Mittwoch, 4. März 2020

16:32

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	90
	1 10
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files
Plot

m423: PlussesCrossesEmpty_Parallel Hloop_(90)deg_10mT/min

Mittwoch, 4. März 2020

16:32

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	90
	1 10
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files
Plot

Change Angle m424: ParallelFast Hloop_(90)deg_100mT/min

Dienstag, 10. März 2020

13:43

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	90
	1 10
	R12 = 40/1000*50 =
Period of measurement (min)
Notes	Minimizing the Signal again for parallel Setup.
Data files
Plot

m425/26: PlussesCrossesEmpty_Parallel Relaxation_(90)deg_5mT/min

Dienstag, 10. März 2020

13:44

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	90
	1 -> -.015 5
Period of measurement (min)
Notes	Measuring Relaxation effect (stopping at -15 mT and waiting).
Data files
Plot

m427: PlussesCrossesEmpty_Parallel Relaxation_(90)deg_5mT/min

Dienstag, 10. März 2020

13:47

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	90
	1 -> -0.014 5
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files
Plot

m428: PlussesCrossesEmpty_Parallel Hloop_(90)deg_10mT/min

Dienstag, 10. März 2020

13:48

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	90
	0.75 10
	R12 = 40/1000*50 =
Period of measurement (min)
Notes
Data files

Change Angle: 10deg

Mittwoch, 11. März 2020

12:02

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	10
	1
Notes	Changing Angle to 0deg to measure new maximum Voltage: V_Max = 11.717 mV

Aiming for Hall Voltage:

Voltage measured:

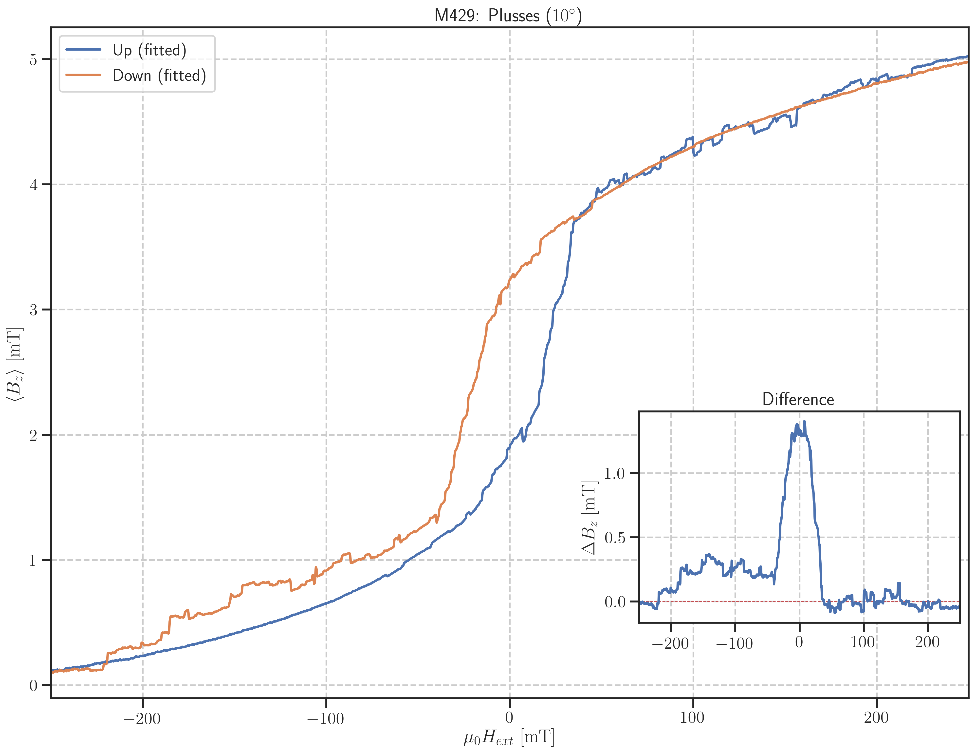

m429: Plusses_Hloop_(10)deg

Sonntag, 7. April 2019

01:34

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	10
	0.5 5
	R12 = 260/1000*50 = 13
Period of measurement (min)	400
Notes
Data files	< <M429.0 _Plusse s_10deg _Hloop_ test__G radioFa st_2020 0310_14 00_I1-1 -13_I2- 8-6_GBI P8-14-7 _Vin-2. 5V_R11- 1MO_R12 -8kO_R1 3-0_R21 -1MO_C1 1-1_C21 -6_T-30 K_SR-0. 2-T-min _B-0.5T _gate-0 V.dat>> Ba lancing Grad iometry (fast) << M429.1_ Plusses _10deg_ Hloop_d own__Gr adioFas t_20200 310_140 0_I1-1- 13_I2-8 -6_GBIP 8-14-7_ Vin-2.5 V_R11-1 MO_R12- 13kO_R1 3-0_R21 -1MO_C1 1-1_C21 -1_T-30 K_SR-0. 1-T-min _B-0.5T _gate-0 V.dat>> < <M429.1 _Plusse s_10deg _Hloop_ down__G radioFa st_2020 0310_14 00_I1-1 -13_I2- 8-6_GBI P8-14-7 _Vin-2. 5V_R11- 1MO_R12 -13kO_R 13-0_R2 1-1MO_C 11-1_C2 1-1_T-3 0K_SR-0 .005-T- min_B-0 .5T_gat e-0tEST 2.dat>> Ba lancing Sens itivity (fast) <<M 429_Plu sses_10 deg_Hlo op_up__ Gradio_ 2020031 0_1500_ I1-1-13 _I2-8-6 _GBIP8- 14-7_Vi n-2.5V_ R11-1MO _R12-13 kO_R13- 0_R21-1 MO_C11- 1_C21-1 _T-30K_ SR-0.00 5-T-min _B-0.5T _gate-0 V.dat>> <<M42 9_Pluss es_10de g_Hloop _down__ Gradio_ 2020031 0_1500_ I1-1-13 _I2-8-6 _GBIP8- 14-7_Vi n-2.5V_ R11-1MO _R12-13 kO_R13- 0_R21-1 MO_C11- 1_C21-1 _T-30K_ SR-0.00 5-T-min _B-0.5T _gate-0 V.dat>> Measu rement

Change Angle: 45deg

Mittwoch, 11. März 2020

12:02

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	10
	1
Notes	Changing Angle to 0deg to measure new maximum Voltage: V_Max = 11.733 mV

Aiming for Hall Voltage:

Voltage measured:

m430: Plusses_Gradio Hloop_(45)deg_10mT/min

Mittwoch, 11. März 2020

15:01

Float/Ground:	Ground
AC/DC:	AC
A/A-B:	A-B
Reserve:	Normal
Source:	Internal

Angle of sensor θ	90
	I2 = 8-6
	.4 10
	R12 = 270/1000*50 = 13,5
Period of measurement (min)
Notes
Data files
Plot
